Buy Camille Bauer 175275 Signal converter 1 pc(s)

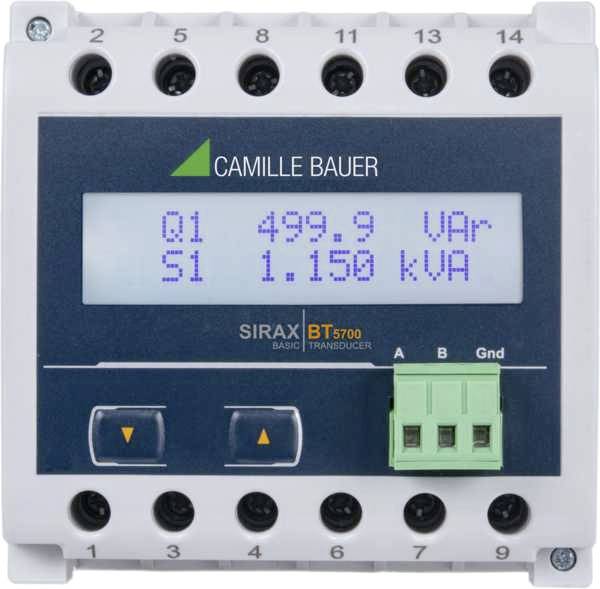

'Measuring device with digital display shows Q1: 499.9 VAR and S1: 1.150 kVA. Manufacturer: Camille Bauer, Model: SIRAX BT5700 Transducer.'

Product type

Signal converter

Input signal (voltage) (max.)

440 V

Type

175275

Connection

Clamp

Operating voltage

12 - 48 V DC/AC

Datasheet (PDF)

Dispatches on Wed, 16 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 326.89 / piece)

€ 326.89

plus VAT.

Report legal concerns

Highlights & Details

Multi-functional display for high current sizes type SIRAX BT570 with RS485 Modbus RTU

Multifunctional measuring device
Fixed mounting and measurement of voltage, current, frequency, power, energy (active, Blind and apparent energy), power factor, phase angle, etc. suitable in low-voltage switching systems.
The device is designed for asymmetrical load in three-phase networks with 3 or 4-wire connection.

Technical specifications

Interface RS285 Modbus RTU
Display LCD / 2 lines
DIN rail mounting

Type: 175275

Product type: Signal converter

Input signal (voltage) (max.): 440 V

Connection: Clamp

Operating voltage: 12 - 48 V DC/AC

Max. operating voltage: 48 V DC/AC

Min. operating voltage: 12 V DC/AC

Input signal (voltage): 440 V LL

Input signal (current): 1 / 5 A

Content: 1 pc(s)

Configuration: Software

Max. ambient temperature: 55 °C

Min. ambient temperature: -10 °C

Documents & Downloads

Datasheet

Datasheet 2140427 Camille Bauer 175275 Signal converter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2140427 Camille Bauer 175275 Signal converter 1 pc(s)

Description

For DIN rail with backlit LCD display
Simple on-site operation and parameterization
Automatic cyclic scrolling of the measured data
Integrated active and reactive energy counters
CB Configurator
The CB Configurator software makes it even easier to program the measured values.
