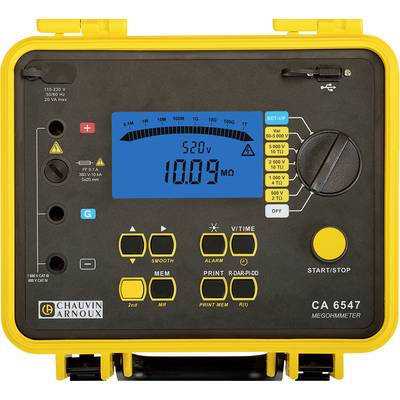

Chauvin Arnoux C.A 6547 Insulation tester 500 V, 1000 V, 2500 V, 5000 V 10 TΩ

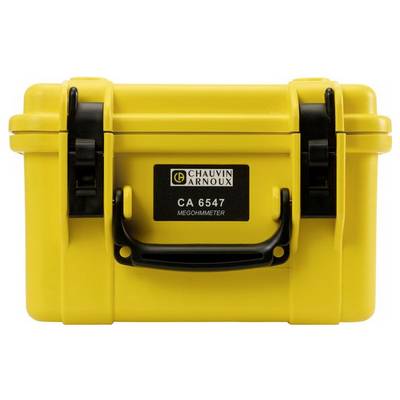

DescriptionDigital insulation meter for 5000 V - storage and data transferThe CA 6547 is the ideal instrument for quantitative and qualitative testing of insulation in its robust housing suitable for construction. At the same time as the insulation resistance, the tester also indicates voltages, capacities and residual currents. In addition, this model possesses a measured value memory and a USB-interface for operating the device and data evaluation via the software Megohmmeter.Technical data and functions:Comprehensive measurement range: 10 kΩ to 10 TΩ4 specified test voltages: 500, 1000, 2500 and 5000 V.Test voltage from 40 V to 5100 V can be programd in 10 V or 100 V stepsLarge format, illuminated LCD display for numerical values and bar graphQualitative insulation test with automatic calculation OF parameters, PI, DD (dielectric discharge) and recording of curve R(t)Numerous functions: Programmable test duration, limitation of the test voltage to non-hazardous values, smooth, programmable alarms, etc.Memory for several measured valuesUSB interface to computer and data evaluation with Megohmmeter software or connection of a compact serial printerPower supply: NiMH rechargeable batteries for approx. one month operating time with 10 CURRENT and 5 PI measurements per dayInstallation category: IEC 61010-1 cat III 1000 V or cat I 2500 V and IEC 61557Dimensions 270 x 250 x 180 mm; weight 4.3 kg

This text is machine translated.
