Name: Chauvin Arnoux C.A 745N Two-pole voltage tester CAT III 600 V Bargraph
Brand: Chauvin Arnoux
SKU: 1593627
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

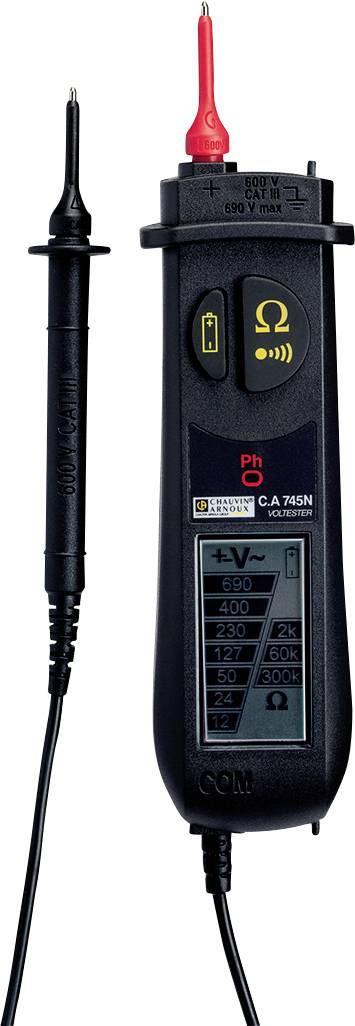

A digital multimeter with two probes, a display and various measurement functions for voltage detection and continuity testing.

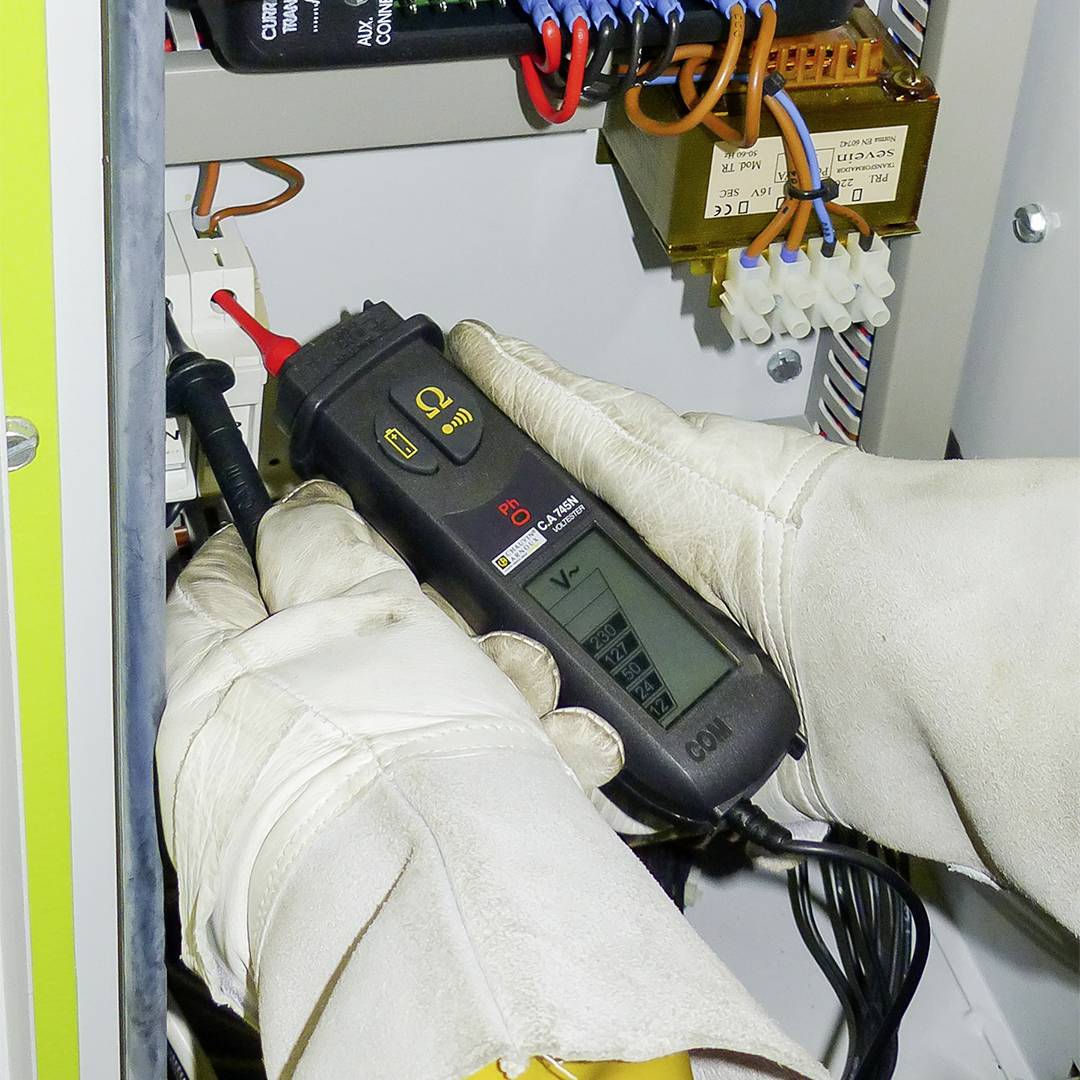

A technician is measuring electrical voltage in a control cabinet with a voltage tester. Cables and components are visible.

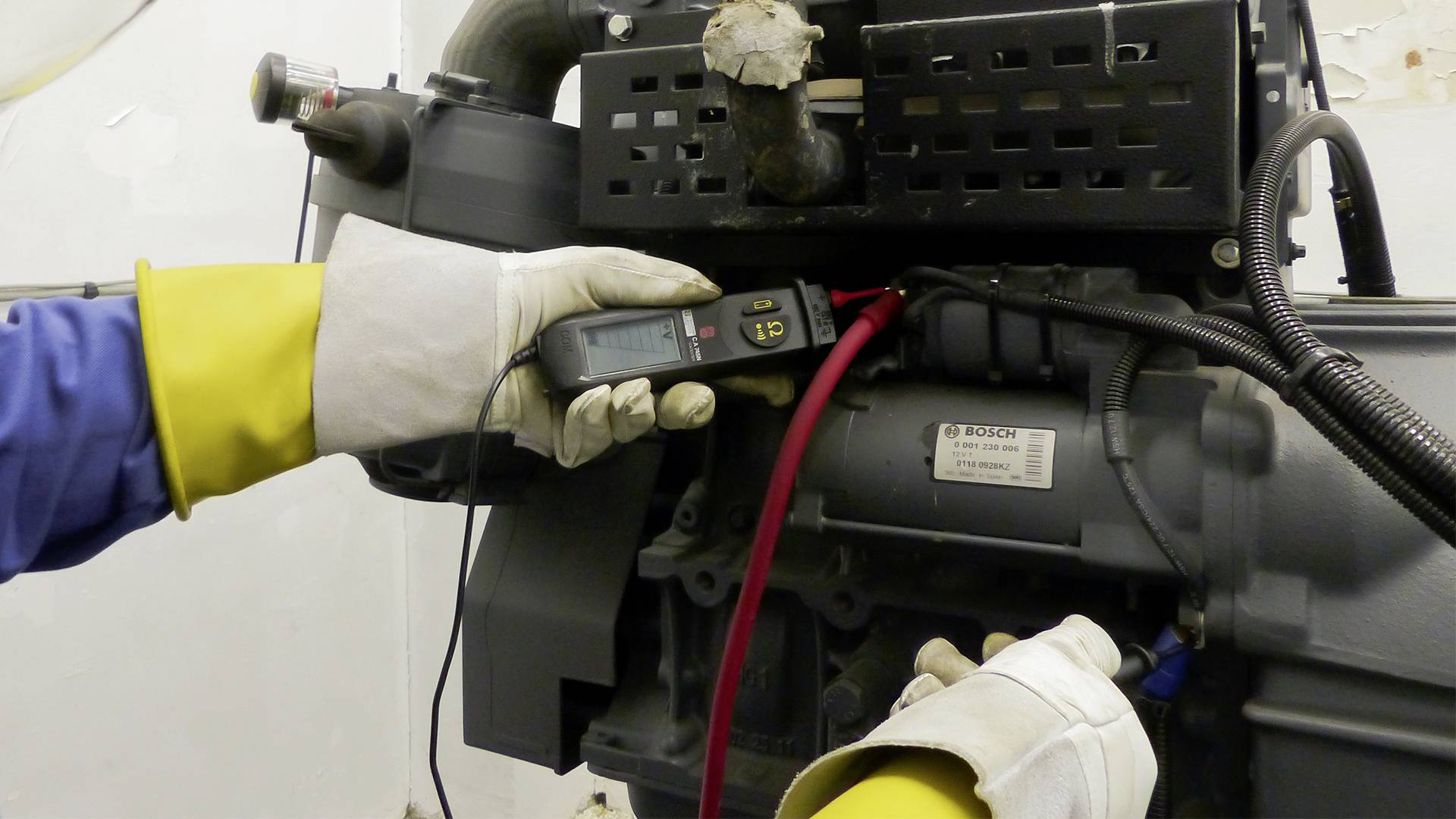

A technician is measuring electrical values on a machine using a multimetre. Stickers with technical specifications are visible on the machine.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Alternative article by VOLTCRAFT

VOLTCRAFT VC 63 Two-pole voltage tester CAT III 1000 V, CAT IV 600 V Acoustic, LCD, LED

Fast track dispatch on Wed 4 Nov

€ 67.99

incl. VAT plus

Highlights & Details

Indispensable voltage tester for each electrician!

Automatic detection of AC and DC voltages
No danger of tripping even of highly sensitive RCD circuit breakers during tests between the external conductor and ground
Outer conductor test with only one probe tip
Resistance and continuity testing
Removable test probes

Technical specifications

Internal resistance: 400kΩ
Working temperature: -10°C to +55°C
Display (details): bar graph with 7 levels

Product type: Two-pole voltage tester

Reading type: Continuity
Resistance testing

Display: Bargraph

V AC reading range: 12 up to 690 V

V DC reading range: 12 up to 690 V

Reading category: CAT III 600 V

: IP54

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 45 x 180 x 52 mm

Weight: 200 g

V AC reading range (max.): 690 V

V AC reading range (min.): 12 V

Voltage DC reading range (max.): 690 V

Voltage reading range DC (min.): 12 V

Width: 180 mm

Height: 52 mm

Length: 45 mm

Type: C.A 745N

Documents & Downloads

Datasheet

Datasheet 1593627 Chauvin Arnoux C.A 745N Two-pole voltage tester CAT III 600 V Bargraph

User & Safety Instructions

User & Safety Instructions 1593627 Chauvin Arnoux C.A 745N Two-pole voltage tester CAT III 600 V Bargraph

Description

The voltage and continuity tester C.A 745 N shows on its LCD display the voltage measured in the form of a bar graph with 7 levels. The compact device fits well in the hand.

His test probes are removable and easy to replace, and you can easily be clipped into in a recording on the housing.

The C.A 745 N checks AC and DC voltages up to 690 V with automatic detection of AC and DC, resistance values are displayed in 3 levels and the auditor has audible continuity test. The single-pole phase test is performed and the C.A 745 N loosens even the highly sensitive residual-current circuit breaker in phase/earth checks are not.

The battery operating time is 150 hours with alkaline batteries.

The voltage tester C.A 745 N is the ideal device for electricians, heating and air-conditioning technicians, mechanics, maintenance, etc… it is easy to use, highly efficient and automatically detects AC and DCSpannungen.

The C.A 745 N offers optimum protection for the user.

This text is machine translated.

Features

Display of the battery status
Single-pole phase test
AC and DC voltage testing in 7 levels with automatic AC/DC detection
Resistance test in 3 levels with acoustic and visual warning if voltage is present
Acoustic continuity tester
MEASUREMENT CATEGORY 600 V CAT III.

Scope of delivery

C.A 745 N in blister packaging
1 set of thin probe tips, red/black CAT III/CAT IV
2 alkaline batteries 1.5 V AAA/LR3
1 Operating instructions in 5 languages
