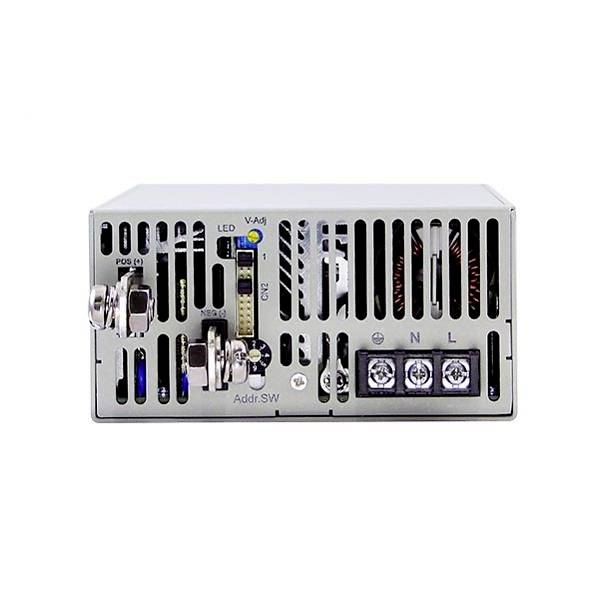

Front view of a metallic switched-mode power supply with ventilation slots, LED indicator, multiple connection terminals, and a toggle switch.

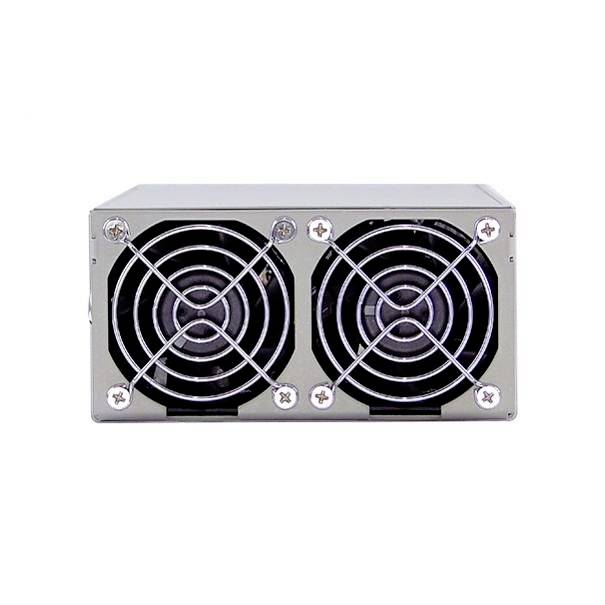

A grey computer fan with two black fans protected by a grille.

Grey rectangular metal device, presumably an electronic module or control unit, with connections on the sides.

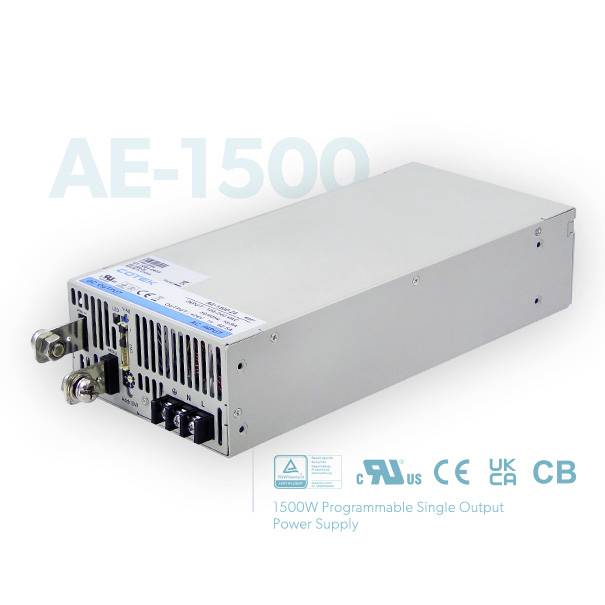

Cotek AE 1500-24 OringFET SMPSU 24 V DC 62.5 A 1500 W-4

1/5

Datasheet (PDF)

Dispatches on Tue, 15 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 668.07 / piece)

€ 668.07

plus VAT.

Report legal concerns

Highlights & Details

Power supply Cotek AE 1500-24 ORINGFET Dehner Elektronik GmbH

Output 24 V DC / 62.5 A
Power 1500 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 62.5 A

Output current (max.) - rounded: 62.5 A

Min. input voltage: 90 V AC
127 V DC

Dim: (L x W x H) 280 x 127 x 64 mm

Output voltage (max.): 24 V DC

Connection: Screw terminal

: 1500 W

Type: closed

Max. operating temperature (derating): 60 °C

Min. operating temperature (derating): -25 °C

Weight: 2.6 kg

PSU features: Adjustable current output
Adjustable voltage output

Type: Switched PSU

Width: 127 mm

Height: 64 mm

Length: 280 mm

Type: AE 1500-24 OringFET

MTBF: 90.700 h

Output current (min.): 0 A

Output voltage (min.): 12 V DC

PFC: Yes

Max. temperature: 85 °C

Min. temperature: -40 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3192761 Cotek AE 1500-24 OringFET SMPSU 24 V DC 62.5 A 1500 W

User & Safety Instructions

User & Safety Instructions 3192761 Cotek AE 1500-24 OringFET SMPSU 24 V DC 62.5 A 1500 W

Conformity certificate

Conformity certificate 3192761 Cotek AE 1500-24 OringFET SMPSU 24 V DC 62.5 A 1500 W

Warranty Terms

Warranty Terms 3192761 Cotek AE 1500-24 OringFET SMPSU 24 V DC 62.5 A 1500 W

Description

The advantages of the Cotek AE-1500 series are:
- Extremely compact design with integrated fans.
- Wide input voltage range 90-264 VAC, 127-370 VDC
- VARIANTS: 12 V, 15 V, 24 V, 30 V, 36 V, 48 V and 60 V
- Current limitation
- The output voltage can be adjusted in a range from 0% to 105%.
- The output current can be adjusted in a range from 0% to 105%.
- Single units via CT-201 (RS232) or CT-551 (RS485) auxiliary board
- Parallel operation (control of up to 8 devices via auxiliary board CT-251 for Master, as well as one CT-551 for each slave)
- Series operation up to 500VDC (control of up to 8 devices via CT-204 auxiliary board)
- Set and current values of the device can be read/monitored: Voltage, current, temperature
- Reading the status flags.
- Selectable auxiliary voltage: +5V / 0.5A or +9V / 0.3A
- Power OK signal
- Remote On/Off
- Remote sense
- Protection: Overvoltage protection (OVP), overload protection (OLP), over temperature protection (OTP), fan failure
- Applications e.g.: Charging technology, motors, laser technology, water treatment, industrial heating ovens, etc. – wherever variable voltages and currents are required.

Simple control via potentiometer (additional board EasyAdjus3000) or control voltage
Communication/control via I²C (communication protocol on request)
RS232 / RS485 (via CT series add-on boards)

Conrad article number 1991949 controller board for AE/AEK CT-201 RS232 to 1SMPS module
Conrad article number 1991943 controller board for AE/AEK CT-204 RS232 to 4SMPS module
Conrad article number 1991953 controller board for AE/AEK CT-251 RS232 & RS485 to 1SMPS module
Conrad article number 1991946 controller board for AE/AEK CT-551 RS485 x 2 to 1SMPS module
Conrad article number 1991948 controller Cotek-UI-adjustment potentiometer EasyAdj3000 for AE/AEK (LV)
