Name: Coupling SC 4-NS/ 1-L 3043404 Phoenix Contact
Brand: Phoenix Contact
SKU: 565951
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

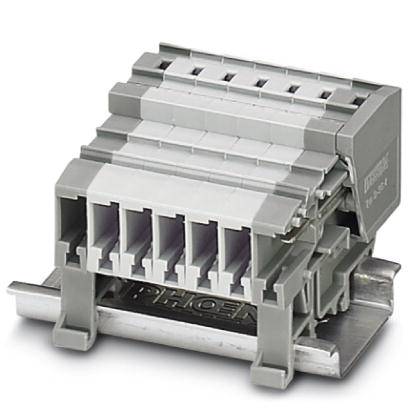

Grey-white, multi-layered electrical terminal housing made of plastic on a metal rail, with five connection points visible.

Packaging type

Piece

Product type

Connector

Connection

Pull spring

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

6 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

1 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.60 / piece)

€ 79.99

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Coupling SC 4-NS/ 1-L

SC 4-NS/ 1-L

Technical specifications

Packaging type: Piece

Product type: Connector

Features: NS 32/35 rail mount

Connection: Pull spring

Cross section (flexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 28

AWG max.: 10

Clamp width: 6.2 mm

No. of rows: 1

Number of pins: 2

Factory colour: Grey

Nominal current: 32 A

Nominal current - rounded value: 32 A

Nominal voltage: 800 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3043404

Content: 50 pc(s)

Industrial packaging: Yes

Type: SC 4-NS/ 1-L

Dim: (L x W x H) 48.6 x 6.2 x 35.6 mm

Width: 6.2 mm

Height: 35.6 mm

Length: 48.6 mm

Contamination level: 3

Flammability rating: V0

Insulation material: PA

Insulation: PA

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Content

Cross section (flexible) (max.)

Cross section (inflexible) (max.)

Factory colour

Nominal current - rounded value

Coupling SC 2,5-NS/ 1-L 3042340 Phoenix Contact

Item no:565830

Dispatches on Tue 3 Nov

89 Set(s)Conrad Electronic

50 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

Coupling SC 2,5-RZ/ 1-L 3042214 Phoenix Contact

Item no:565713

Dispatches on Thu 19 Nov

Conrad Electronic

50 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

Coupling SC 2,5-RZ/ 1-L GNYE 3042230 Phoenix Contact

Item no:565715

Dispatches on Thu 19 Nov

Conrad Electronic

50 pc(s)

2.5 mm²

4 mm²

Green

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

Coupling SC 2,5-RZ/ 2 3041516 Phoenix Contact

Item no:565734

Dispatches on Thu 19 Nov

Conrad Electronic

50 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

Coupling SC 2,5-RZ/ 3 3041529 Phoenix Contact

Item no:565735

Dispatches on Thu 19 Nov

Conrad Electronic

50 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Coupling SC 2,5-RZ/ 4 3041532 Phoenix Contact

Item no:565736

Dispatches on Thu 19 Nov

Conrad Electronic

50 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

Coupling SC 2,5-RZ/ 6 3041558 Phoenix Contact

Item no:565738

Dispatches on Thu 19 Nov

Conrad Electronic

25 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Coupling SC 2,5-RZ/ 7 3041561 Phoenix Contact

Item no:565740

Dispatches on Thu 19 Nov

Conrad Electronic

25 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

Coupling SC 2,5-RZ/ 8 3041574 Phoenix Contact

Item no:565741

Dispatches on Thu 19 Nov

Conrad Electronic

25 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Coupling SC 2,5-RZ/12 3041613 Phoenix Contact

Item no:565745

Dispatches on Thu 19 Nov

Conrad Electronic

10 pc(s)

2.5 mm²

4 mm²

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Documents & Downloads

Datasheet

Datasheet 565951 Coupling SC 4-NS/ 1-L 3043404 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565951 Coupling SC 4-NS/ 1-L 3043404 Phoenix Contact

Description

Coupling, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Color: gray, Mounting type: NS 35/15, NS 35/7,5

Description

Coupling, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Color: gray, Mounting type: NS 35/15, NS 35/7,5
