Name: CSAU-01/04 Eaton xComfort Actuator Switching capacity (max.) 1840 W
Brand: Eaton
SKU: 2142462
Availability: InStock

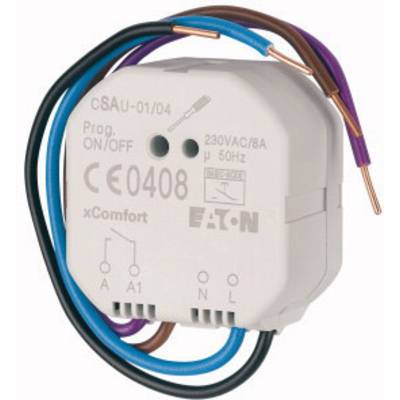

A small, white control unit with exposed cables, labelled 'Eaton' and featuring technical specifications for electrical installations.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 119.99 / piece)

€ 119.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Switch actuator potential-free, 8 A/230 V AC

Potential-free switching contact
8 A

Technical specifications

Power supply: 230 VAC, 50 Hz
Connections: Connecting wires single-wired 1.5 mm²
Load: 230 VAC, 50 Hz, 8 A resistive load; 24 VDC, 8 A
Device switches A via A1 by
pre-fuse LS 16 A, characteristic C Internal protection via thermal protection
Transmission type: Bidirectional, via coded telegrams
Range in the building: Typical 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Operating temperature: -5 to +45 °C
Housing color: Gray, RAL7035
Length of connecting wires: 150 mm

Product type: Actuator

Series: Eaton xComfort

Dim: (W x H x D) 48.6 x 45.3 x 26.2 mm

Max. switching capacity: 1840 W

: IP20

Power supply (LOV): mains-powered

: 1840 W

Frequency: 868.3 MHz

Mounting type: Flush mount

Width: 48.6 mm

Height: 45.3 mm

Depth: 26.2 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Flush mounted (plaster)

: 0 A

: 0.6 W

: 1840 W

: 0-0 V

: FALSE

: TRUE

: FALSE

: 1840 W

: TRUE

: 1

: 0

: 3

: 8 A

: xComfort

: FALSE

: FALSE

: FALSE

: TRUE

: IP20

: FALSE

: FALSE

: FALSE

: TRUE

: TRUE

: 26 mm

: 0 W

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Dim

CSAU-01/04 Eaton xComfort Actuator Switching capacity (max.) 1840 W

Item no:2142462

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

This article

(W x H x D) 48.6 x 45.3 x 26.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

CSAU-01/01-10 Eaton xComfort Actuator Switching capacity (max.) 2300 W White

Item no:2142506

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

CSAU-01/01-16I Eaton xComfort Actuator Switching capacity (max.) 3680 W

Item no:2142511

Dispatches on Fri 13 Nov

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

CSAU-01/01-16IE Eaton xComfort Actuator Switching capacity (max.) 3680 W

Item no:2142512

Dispatches on Mon 9 Nov

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

CSAU-01/02 Eaton xComfort Actuator Switching capacity (max.) 1840 W

Item no:2142557

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

(W x H x D) 45.3 x 48.6 x 26.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

CSAU-01/03 Eaton xComfort Actuator Switching capacity (max.) 1380 W

Item no:2142558

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

(W x H x D) 45.3 x 48.6 x 26.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

CSAU-01/01-10I Eaton xComfort Actuator Switching capacity (max.) 2300 W

Item no:2142508

Unavailable

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

CSAU-01/01-10IE Eaton xComfort Actuator Switching capacity (max.) 2300 W

Item no:2142509

Unavailable

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

CSAU-01/01-16 Eaton xComfort Actuator Switching capacity (max.) 3680 W

Item no:2142510

Unavailable

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Documents & Downloads

Datasheet

Datasheet 2142462 CSAU-01/04 Eaton xComfort Actuator Switching capacity (max.) 1840 W

User & Safety Instructions

User & Safety Instructions 2142462 CSAU-01/04 Eaton xComfort Actuator Switching capacity (max.) 1840 W

Information

Information 2142462 CSAU-01/04 Eaton xComfort Actuator Switching capacity (max.) 1840 W

Description

The "Potential-free switching actuator with button function "receives and switches devices, such as the doorbell. The special feature of this product is that assignment in the Basic mode only the "Touch function is used. The output is switched as long, as long as the assigned switch/sensor is activated (function of a doorbell button). Also when resetting to factory settings (reset) and neuerlichem assign a button/sensor in the Basic mode is in turn only the button function. In Comfort mode, all well-known and best proven functions remain unchanged. The supply is done via the network. You can also use other voltages than the supply voltage can be switched. The device is installed in the switch, branch, installation box or directly in the lamp cover.

This text is machine translated.
