Name: CTAA-02/04 Eaton xComfort 2-channel Wall switch Grey
Brand: Eaton
SKU: 2142469
Availability: InStock

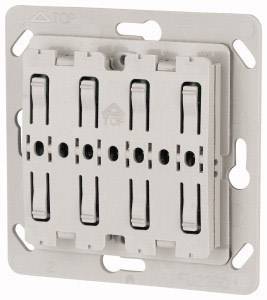

A grey, rectangular flush-mounted switch with four narrow vertical apertures, suitable for electrical installations.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Switch 2-way, without LED

Wireless wall switch 868 MHz
2 Channel
Without LED

Technical specifications

Power supply: 3 V via battery CR2450
Transmission type: Bidirectional, via coded telegrams
Range in building: Typical 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness, material, used rocker and frame!!)
Operating temperature -5 to +45 °C
Housing color Taster insert: Similar RAL7035
Housing color Taster base plate: Similar RAL7035
Dim. Push-button insert (H x W x D): 55 x 55 x 12.2 mm
Dim. Button base (H x W x D) 70 x 70 x 10 mm

Product type: Wall switch

Series: Eaton xComfort

Power supply (LOV): battery-powered

Data transfer (Smart Home): Wireless

Channels: 2

Frequency: 868.3 MHz

Mounting type: Surface-mount

Factory colour: Grey

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Surface mounted (plaster)

: Grey

: Other

: Untreated

: 2

: Thermoplastic

: FALSE

: TRUE

: TRUE

: Plastic

: None

: FALSE

: 7035

: FALSE

: Matt

: FALSE

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2142469 CTAA-02/04 Eaton xComfort 2-channel Wall switch Grey

User & Safety Instructions

User & Safety Instructions 2142469 CTAA-02/04 Eaton xComfort 2-channel Wall switch Grey

Information

Information 2142469 CTAA-02/04 Eaton xComfort 2-channel Wall switch Grey

Description

The button sends when you press on to the actuators at the convenient electrical installation. There is no distinction between blind, dimmers, etc. or change-over, cross switch or blind switch, etc. is necessary. The device is equipped with a button battery powered and can everywhere and simply (screwed in and glued). Due to the slim design, no switch, branch or installation box is required. The button is compatible with many 55 mm frame the switch industry.

This text is machine translated.
