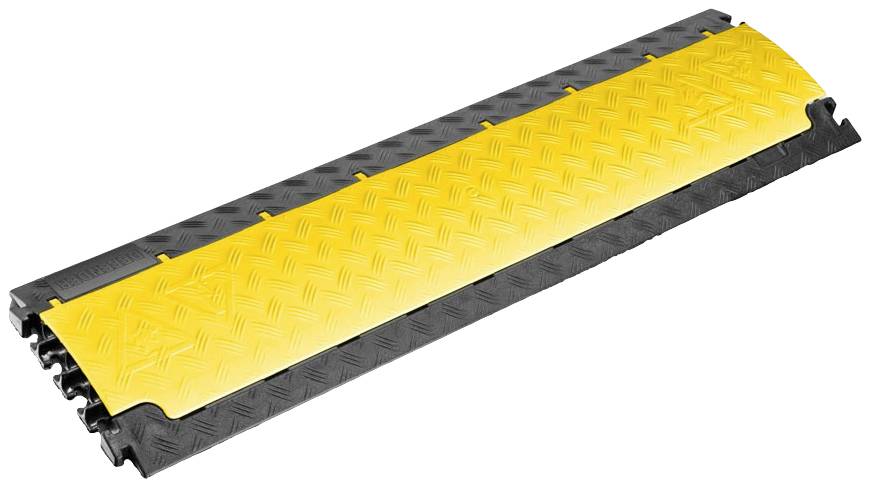

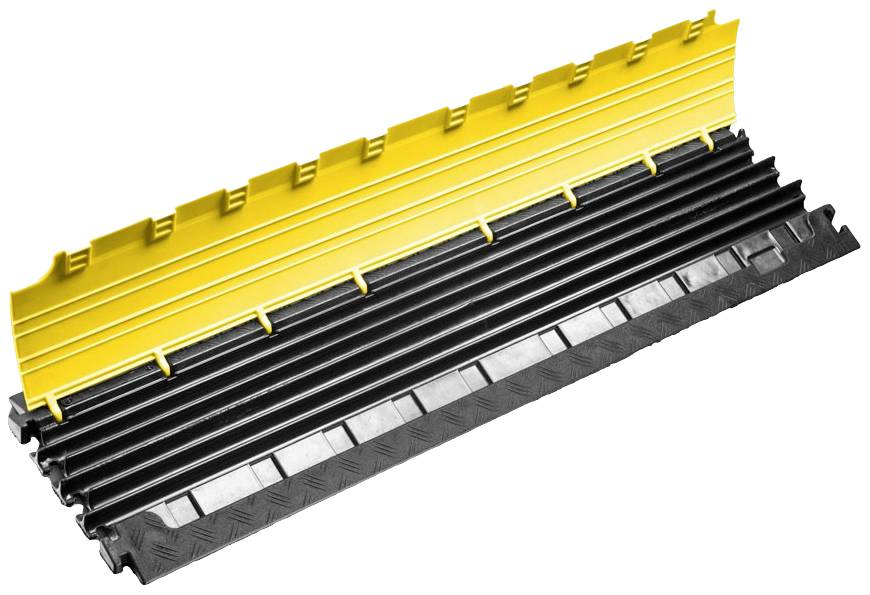

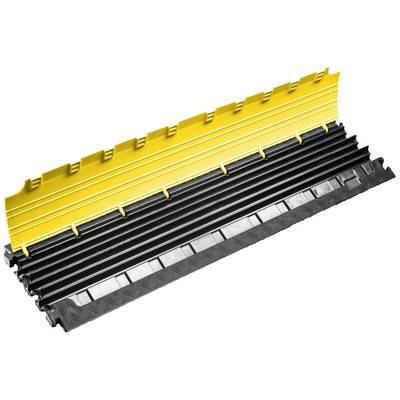

DEFENDER by Adam Hall Cable bridge 85150LUX Polyurethane Black/yellow No. of channels: 6 1010 mm Content: 1 pc(s)

1/2
Product type
Cable bridge
Length
1010 mm
Use
Inside/outside
Load capacity
Bicycle
Pedestrian
Forklift
Pallet truck
Car
Wheelchair
Factory colour
Black/yellow
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct

7 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (1 m = € 128.70)
€ 129.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Piece(s) available
14-day return policy included

Highlights & Details

Defender NANO LUX - cable bridge 6 channels LUX

  • Black/yellow
  • No. of channels: 6

Technical specifications

  • Width x height channel 1 : 17 x 18 mmWidth x height channel 2 : 17 x 18 mmWidth x height channel 3 : 17 x 19 mmWidth x height channel 4 : 17 x 19 mmWidth x height channel 5 : 17 x 18 mmWidth x height channel 6 : 17 x 18 mmLoad capacity : Approx. 2t on an area of 20x20 cmChemical resistance: Petrol-resistant, short-term contact with solvents, oil-resistantHardness range 88 ± 4 shoreFlame protection class B2Temperature range -30 to + 60 °C.Weight: 4.7 kg.
Product type

Cable bridge

Factory colour

Black/yellow

Length

1010 mm

Use

Inside/outside

Load capacity

Bicycle

Pedestrian

Forklift

Pallet truck

Car

Wheelchair

Manufacturer part #

85150LUX

Type

NANO LUX

Dim

(L x W x H) 1010 x 285 x 32 mm

Channels

6

Assembly

Top

Content

1 pc(s)

Features

Movable top

Suitable for cars

Suitable for forklifts

Suitable for pallet trucks

Petrol-resistant

Solvent-resistant (short-term only)

+ yellow stripes

Oil-resistant

Suitable for people

Suitable for wheelchairs

Acid-resistant

Show more
Material

Polyurethane

Width

285 mm

Height

32 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2798313 DEFENDER by Adam Hall Cable bridge 85150LUX Polyurethane Black/yellow No. of channels: 6 1010 mm Content: 1 pc(s)

Description

The ultimate solution for protecting cables and preventing tripping hazards: The innovative defender LUX series cable bridges have highly transparent, yellow-tinted lids where LED light tubes can be placed parallel to cables and other wires. DEFENDER LUX cable bridges have been developed in cooperation with event organizers and operators of large halls and festival sites in accordance with state-of-the-art technology and ensure the highest possible safety and visibility even in the dark, both indoors and outdoors. For more information, see our defender LUX cable bridge price list or contact your DEFENDER representative directly.Cable bridge 6 channelsDEFENDER® NANO cable bridges are particularly flat and can be easily crossed by wheelchair. They are suitable for different internal and external application and are available with yellow as well as with black cover. These cable bridges impress through 6 cable channels for a clean, orderly laying of cables, T-connector as well as a load capacity of 2 tons on an area of 20 x 20 cm and enable not only the pedestrian traffic, but also the driving of light vehicles, trolleys and - thanks to their flat profile - even fork lifts and lift trucks. Separately available end pieces (male/female) ensure a secure entry and execution of the cables. Defender NANO cable bridges can be used for Carnival events, fairs, exhibitions, shopping malls and warehouses as well as stages, studios and broadcasters. Not suitable for traffic.THE DEFENDER LUX cable bridges can be used with commercially available light hoses. Light tubes with so-called neon effect are particularly recommended, as the individual LEDs are less visible here and lead to particularly homogeneous illumination. Observe the appropriate IP classification of the rope light during external operation. The use of LED strips, other one-sided products and light chains is not recommended.Mark your cable bridges! With us you have the possibility of personalizing all DEFENDER cable bridges with your company logo starting with an order quantity of only 30 pieces per model. The corresponding format template is available in the download area at the top. Talk to us.

This text is machine translated.
