Name: DEFENDER by Adam Hall Ramp module 869301BLU Polyurethane Blue 1000 mm Content: 1 pc(s)
Brand: DEFENDER by Adam Hall
SKU: 2798299
Availability: InStock

A rectangular, blue plastic puzzle tile with a non-slip surface. Suitable as a floor mat for sports or play activities.

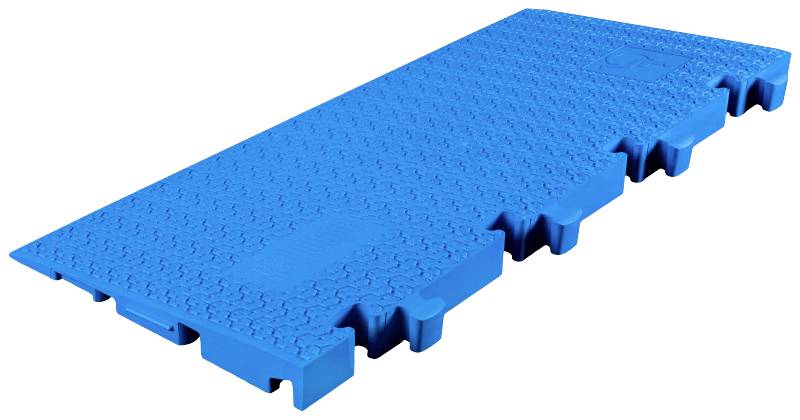

Blue plastic floor element with interlocking structure. It has a non-slip surface and raised connections on the sides.

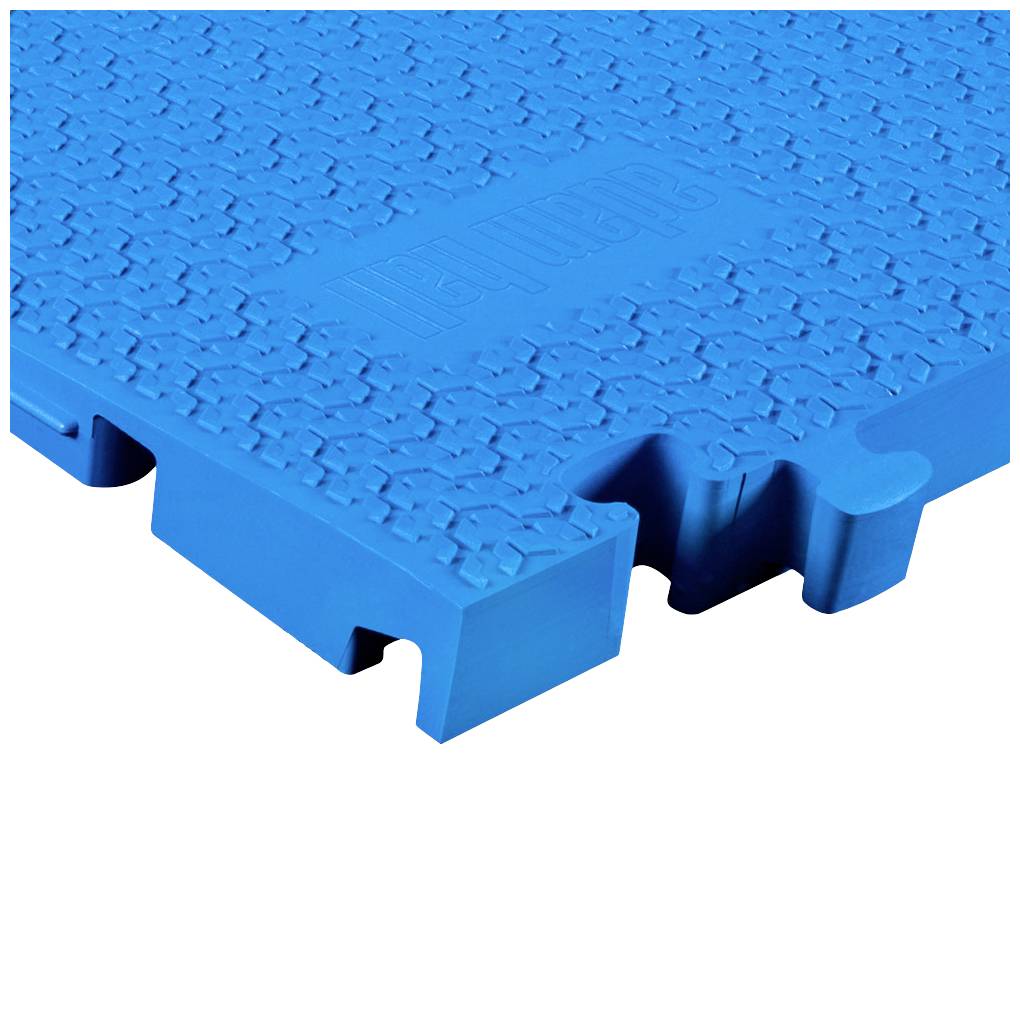

A blue floor panel with a non-slip surface and interlocking edges, suitable for industrial environments.

Blue 3D object with asymmetrical shapes, appearing like a piece of modern industrial design.

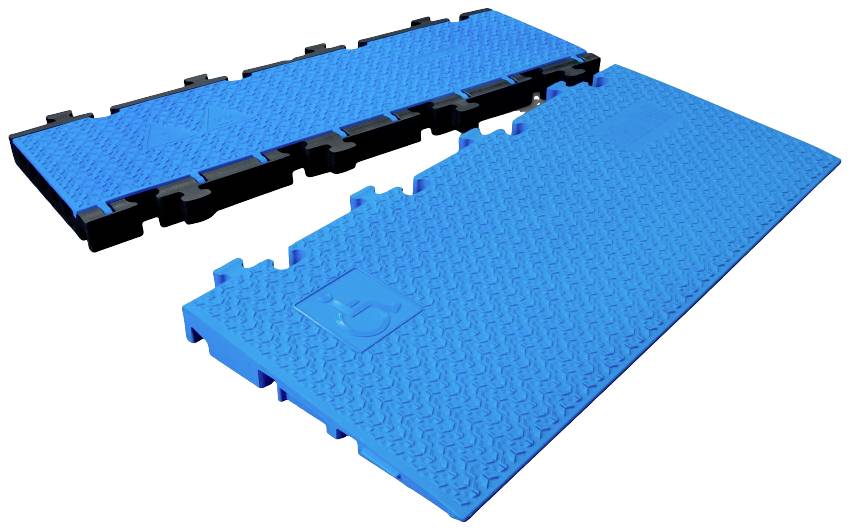

Blue, interlocking plastic plates with a non-slip surface, suitable for flooring in sports or play areas.

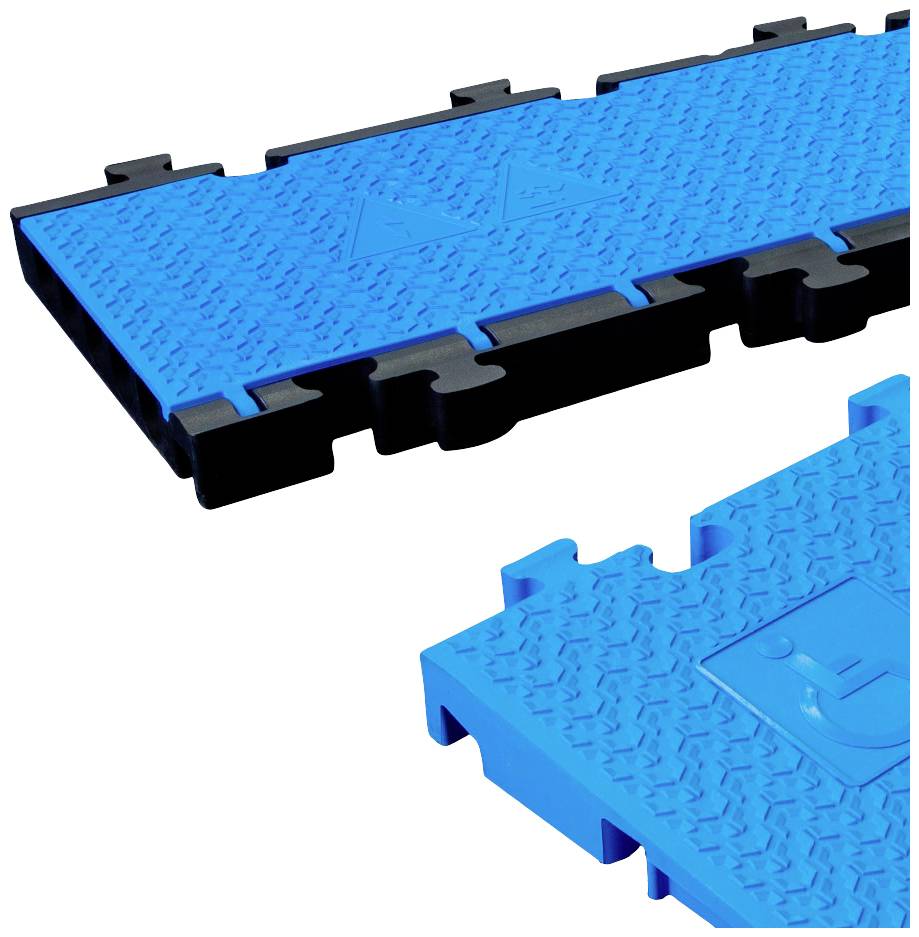

Blue plastic panels with a non-slip surface and interlocking edges. At the top, a panel with geometric patterns, below a section of a second panel.

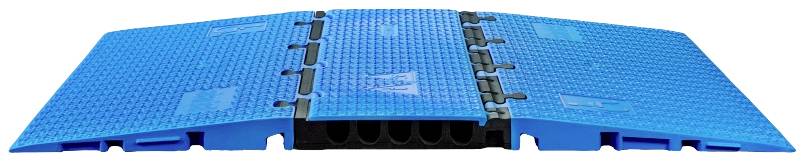

A blue cable protector with two folding wings, covering cables in a central channel. Suitable for use on floors.

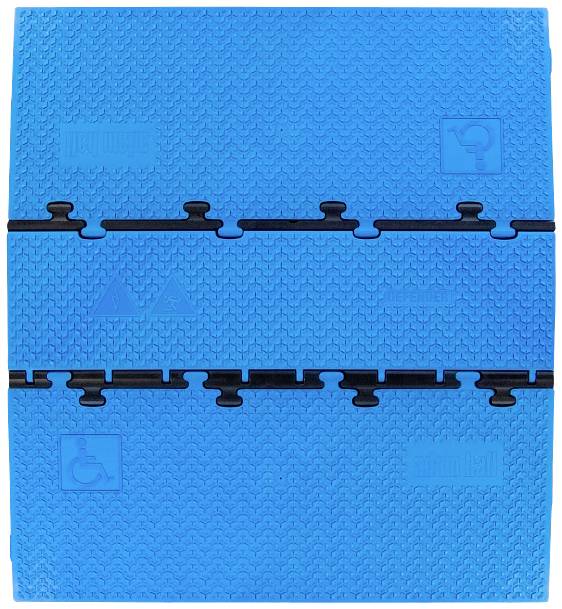

Blue interlocking floor tile with symbols for wheelchair access, construction sites, and lightweight applications, featuring interconnecting edges.

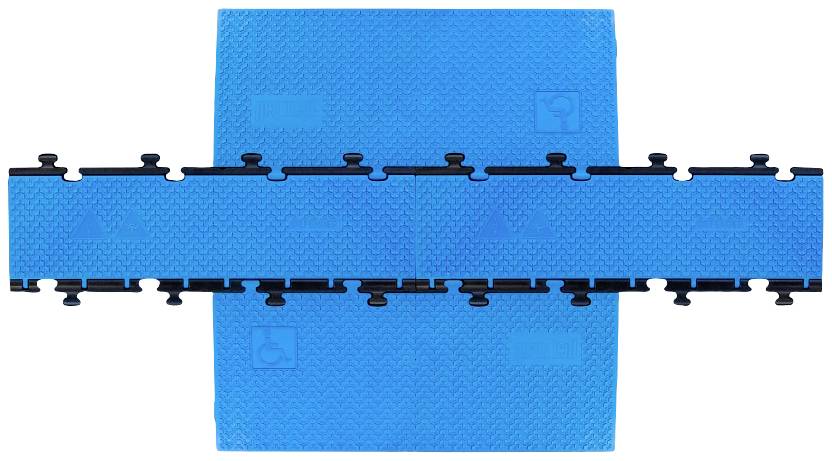

Two blue puzzle mats are connected to each other, with the top one showing interlocking edges for assembly.

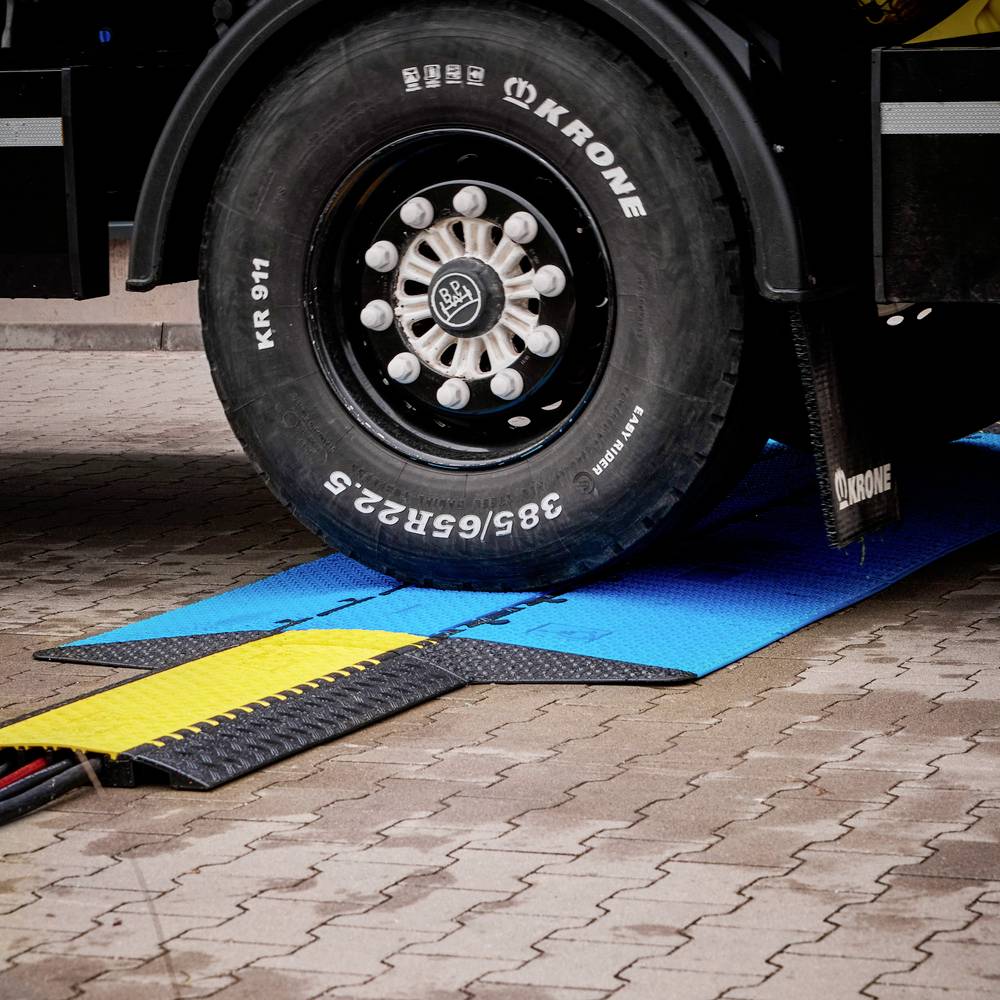

A lorry tyre on a paved road, driving over a cable protection conduit to safeguard cables and prevent accidents.

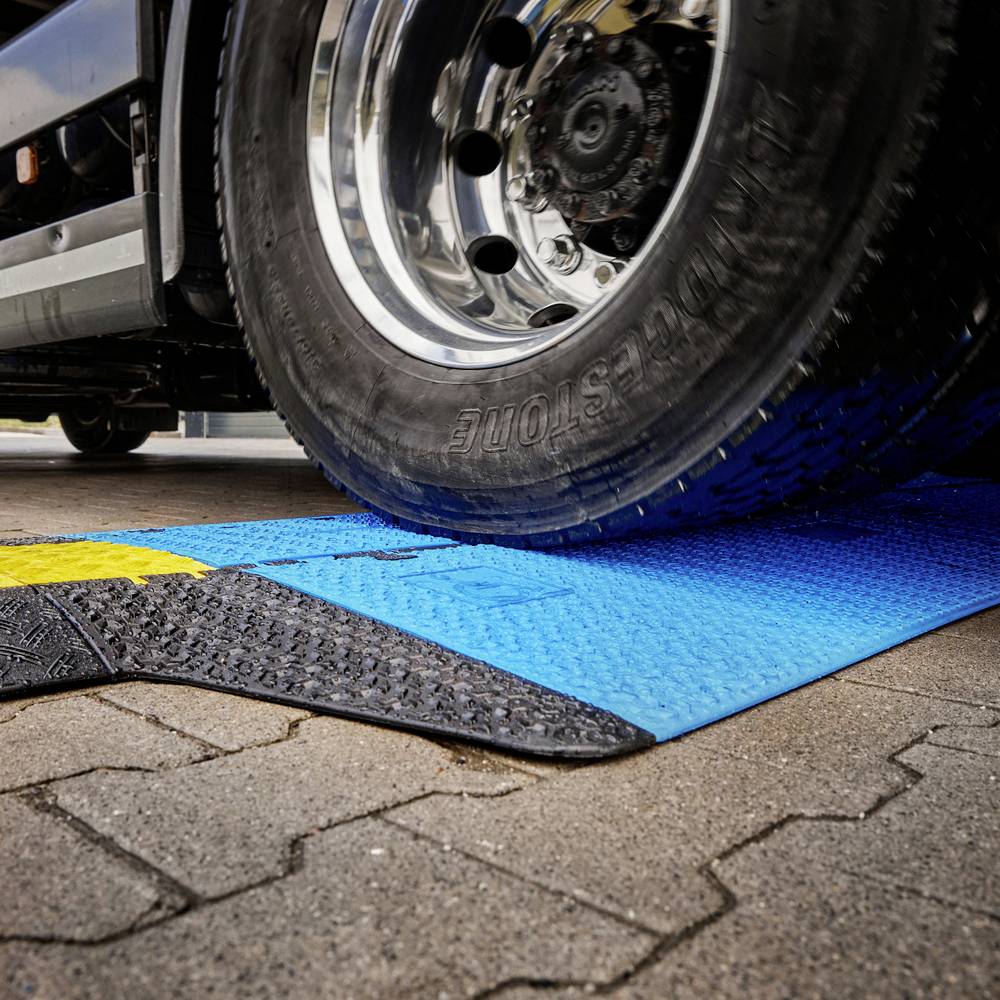

A lorry tyre rolls over a blue ramp on a paved surface. The ramp structure ensures traction and stability.

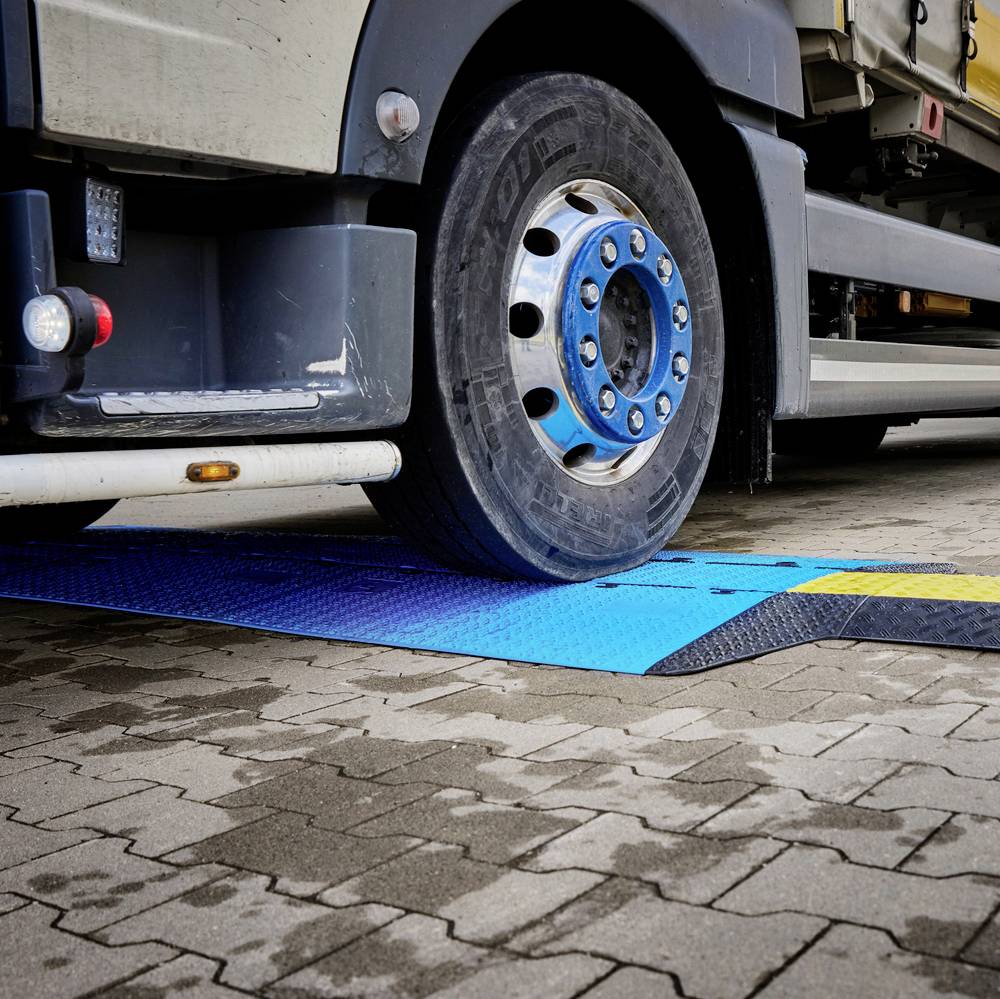

A lorry drives over a blue weighbridge on a paved car park. The weighbridge measures the vehicle's weight.

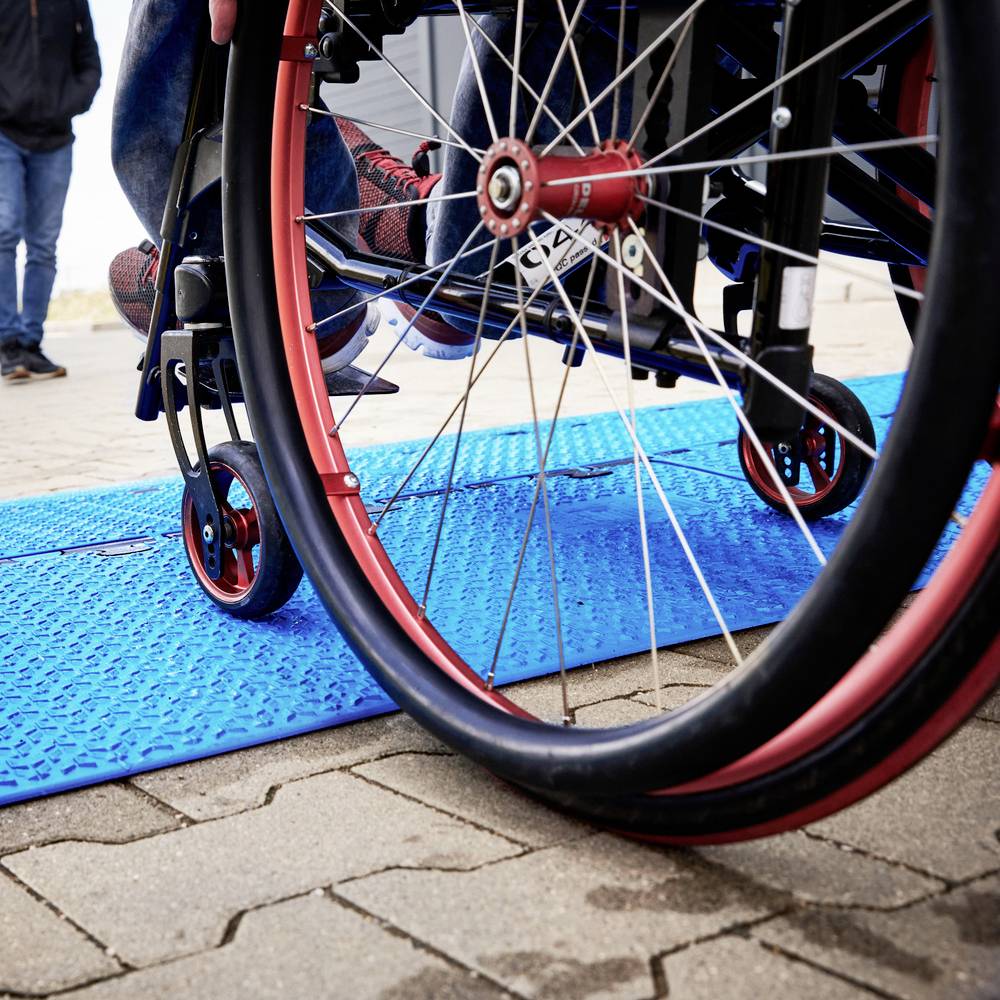

A person in a wheelchair uses a blue ramp on a paved path to overcome a barrier.

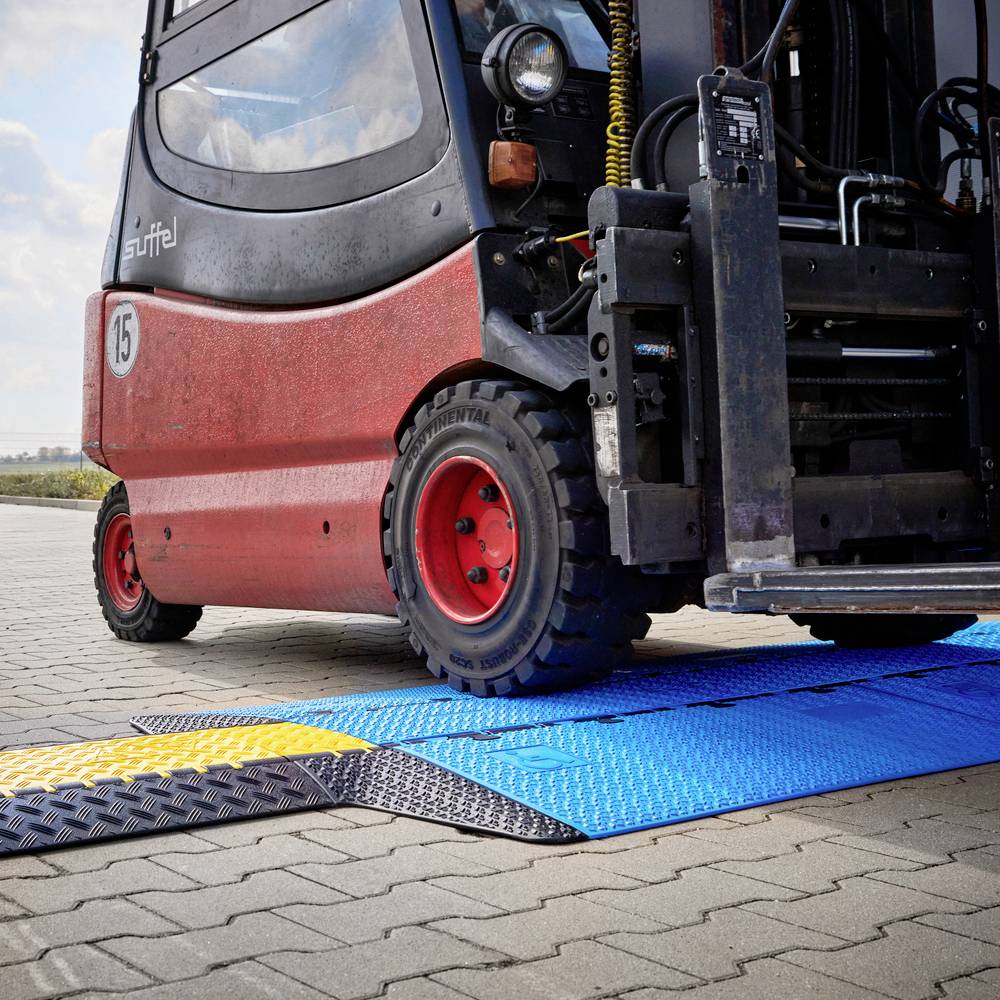

A red forklift is driving over a flexible ramp on cobblestones. The ramp has yellow, blue, and black segments.

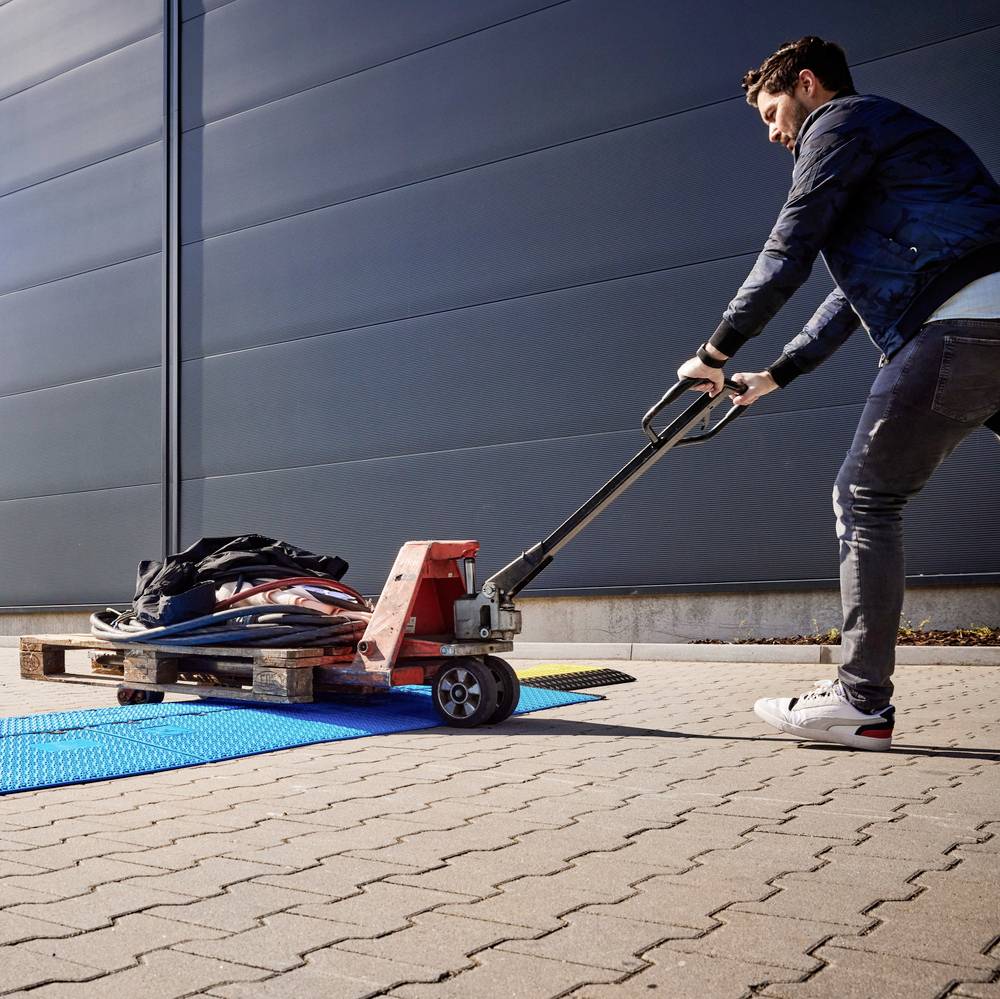

A man is pulling a hand truck with several bags on it across a paved walkway in front of an industrial building entrance.

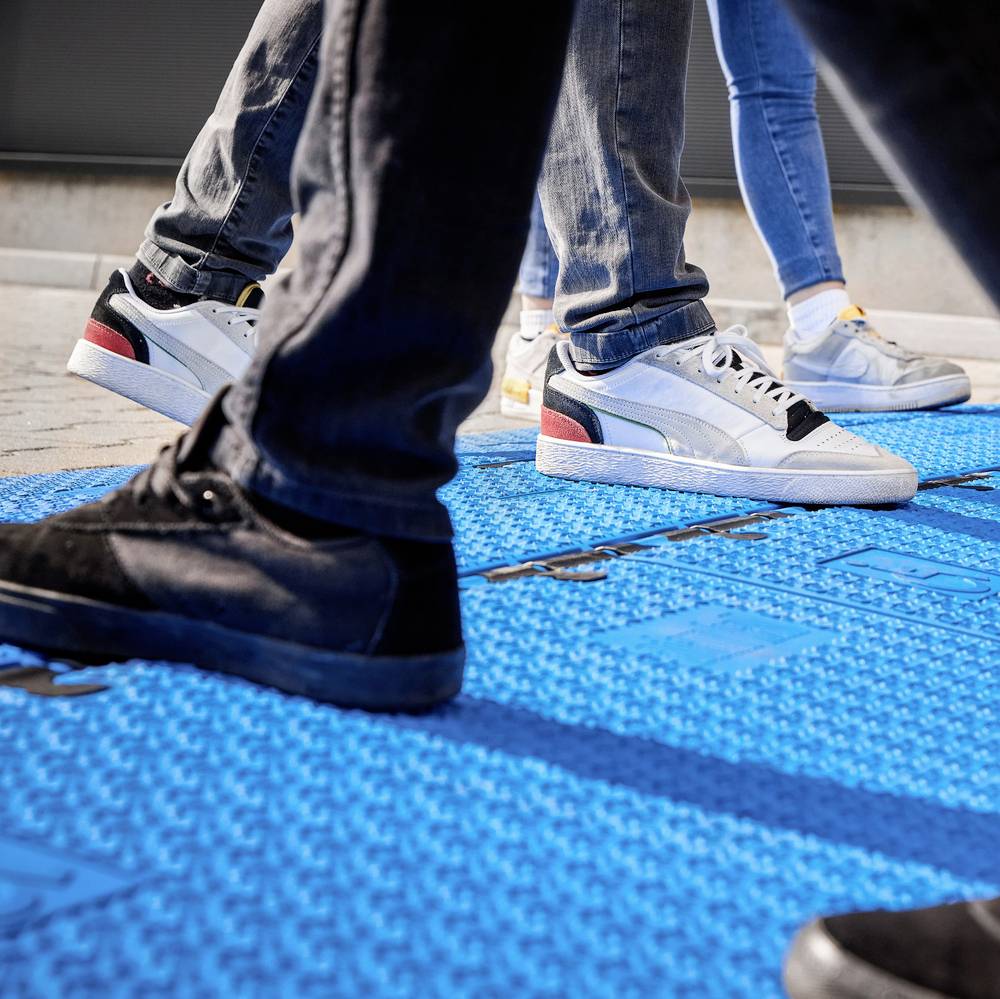

A group of people are walking on a blue, tactile floor surface. Different shoes are visible, some with white soles.

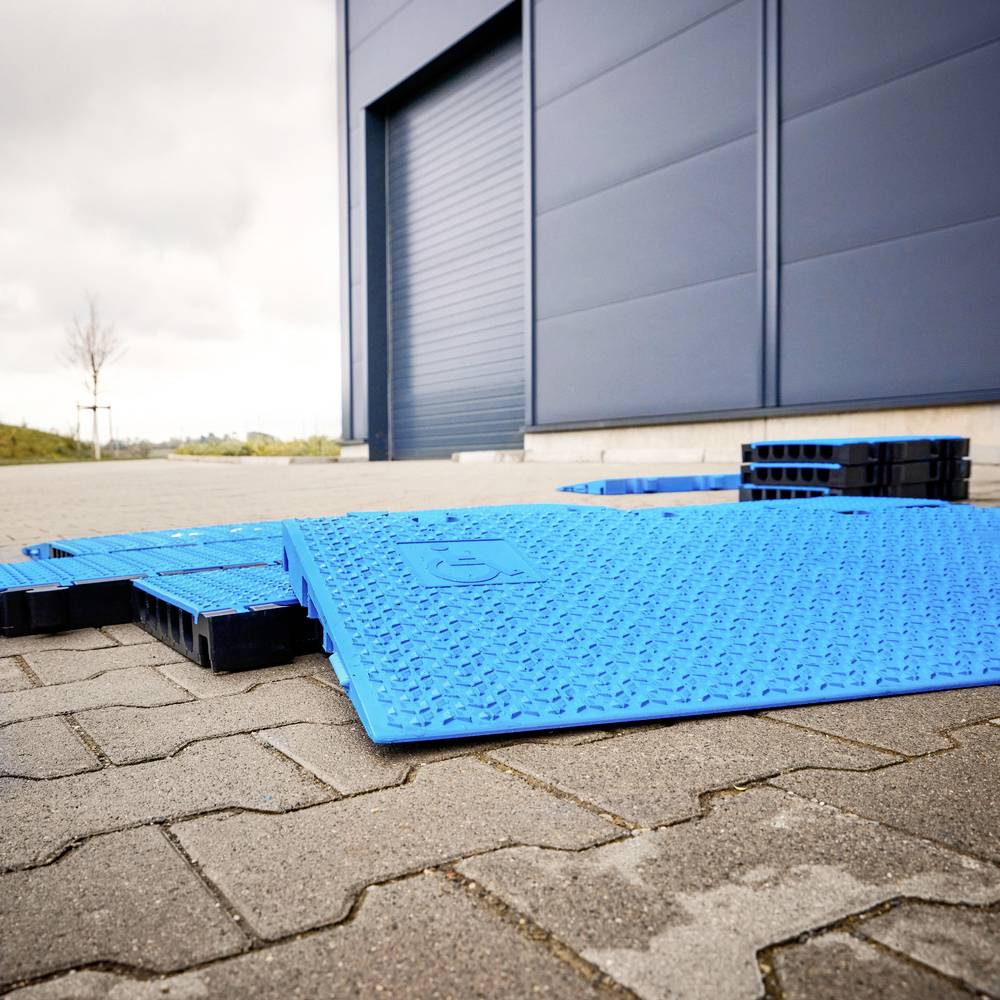

Blue plastic pallets are lying on a paved floor in front of a large blue door. Some pallets are stacked sideways.

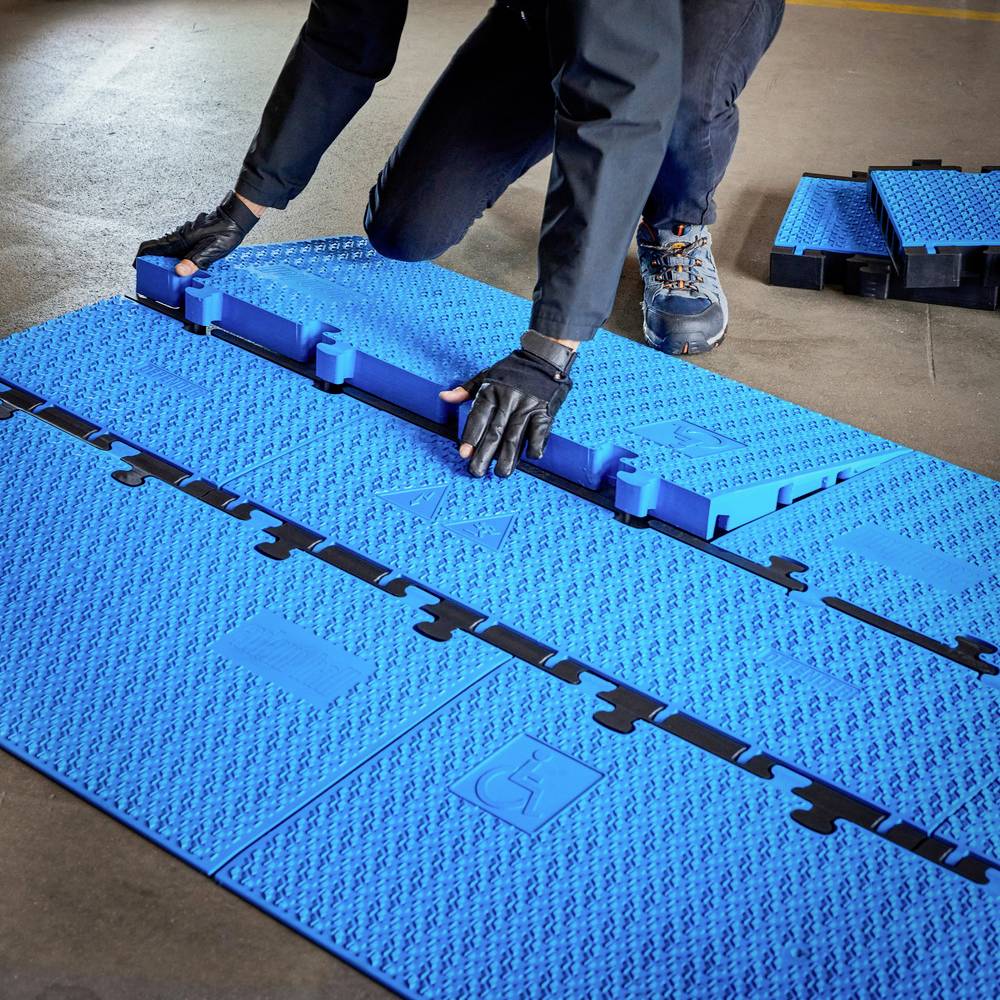

A person is installing blue floor mats on a workshop floor. The mats have non-slip surfaces and interlock with each other.

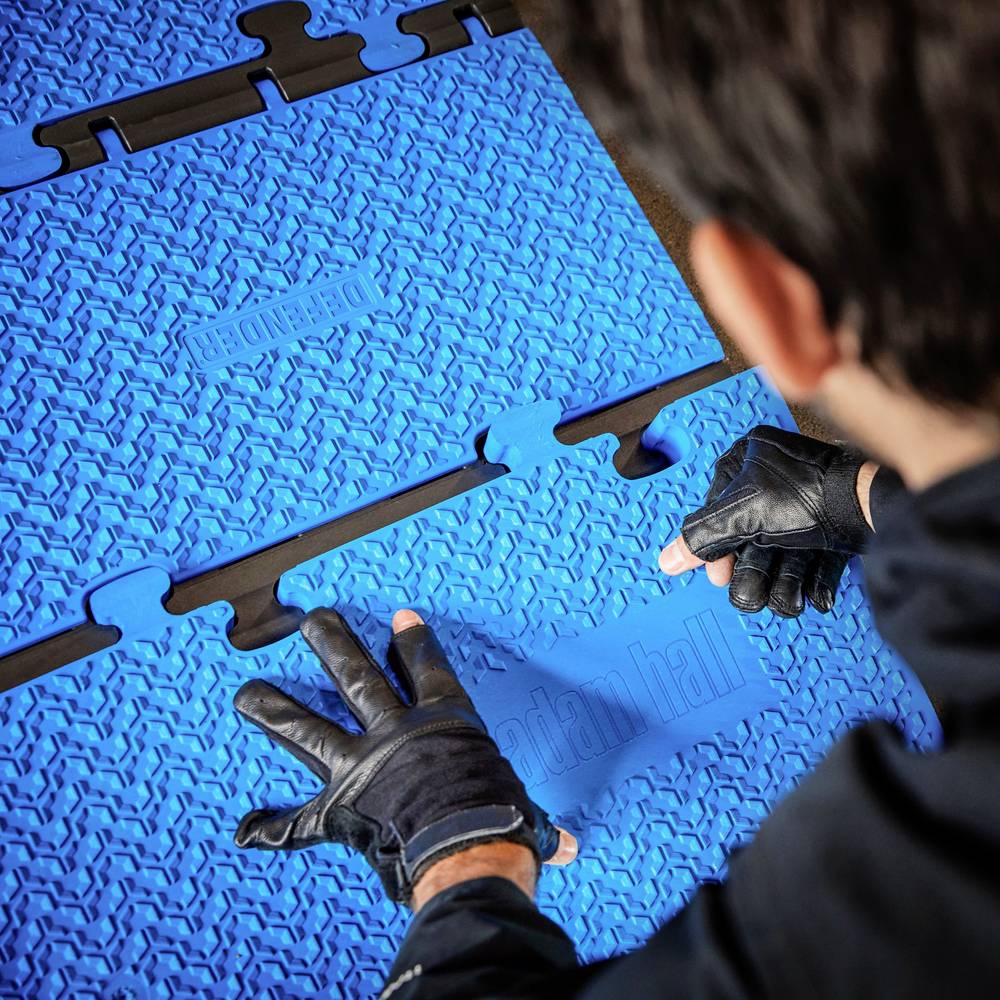

A person wearing gloves is installing blue floor tiles with a non-slip texture. The tiles have interlocking mechanisms for connection.

1/20

Product type

Ramp module

Length

1000 mm

Use

Inside/outside

Load capacity

Bicycle

Pedestrian

Forklift

Pallet truck

Car

Wheelchair

Factory colour

Blue

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 244.99)

€ 244.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Defender MIDI 5 2D R BLU module system for wheelchair ramp and wheelchair-accessible transition ramp

Blue

Technical specifications

Load capacity: Approx. 5 T at an area of 25 x 30 cmChemical resistance: Petrol-resistant, short-term contact with solvents, oil-resistantHardness range : 88 shore ± 4 A shoreTemperature range -30 to + 60 °C.Fire protection class B-s1 (flame retardant) in accordance with DIN EN 13501-1 (pending)Special feature: 2D cable bridge (in length and width modular)Weight: 8.5 kg.

Product type: Ramp module

Factory colour: Blue

Length: 1000 mm

Use: Inside/outside

Load capacity: Bicycle
Pedestrian
Forklift
Pallet truck
Car
Wheelchair

Manufacturer part #: 869301BLU

Type: MIDI 5 2D R BLU

Dim: (L x W x H) 1000 x 430 x 54 mm

Content: 1 pc(s)

Features: Suitable for cars
Suitable for forklifts
Suitable for pallet trucks
Petrol-resistant
Oil-resistant
Suitable for people
Suitable for wheelchairs
2D cable bridge

Material: Polyurethane

Suitable for: DEFENDER® MIDI

Width: 430 mm

Height: 54 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2798299 DEFENDER by Adam Hall Ramp module 869301BLU Polyurethane Blue 1000 mm Content: 1 pc(s)

Description

DEFENDER® 2DM module system, wheelchair accessibleThe DEFENDER® 2D M Blue modular cable bridge was developed for optimum ride over with the wheelchair based on our popular DEFENDER® MIDI cable bridge. It consists of a center section compatible with the MIDI and a flat ramp, which can be extended and combined as required, both in length and width. For extremely simple handling.Ramp blueIn recent years, the topic of accessibility has become increasingly the focus of organizers and authorities. With conventional cable bridge systems, a compromise between wheelchair access and driveability often had to be made. This is different with the new DEFENDER® 2D M: A completely retractable ramp with a 6° gradient is added to each center section. The load capacity of the ramp corresponds to the middle section and is approximately 5 tons per 25 x 30 cm area The flat slope makes it much easier for wheelchair users to access it, as it prevents them from placing the footrests on the ramp. This also makes overrunning the cable bridges with forklifts and trucks easier.The completely symmetrical installation of the ramps makes installation easier and you never have to search for the appropriate mounting part again. The parts can be used in a multi-directional way, there are no right or left elements. No detailed installation plans are required either. Thanks to this symmetry, optimum stability in longitudinal and transverse direction can be achieved by laying middle sections and ramps in the semi-composite and at the same time lost parts such as adapters and bones are not required.The connections have been designed to provide enough clearance for easy assembly and still provide sufficient stability. The longitudinal connection of the ramps, for example, only consists of a small protrusion, which engages from the top with pressure. This means that the elements do not have to be lifted up again after the cross-connectors have entered. The ramps are equipped with an ergonomic carry handle to make handling easier in addition.
