Buy Dehner Elektronik ATS 024T-W240E Mains PSU (fixed voltage) 24 V DC 1 A 24 W

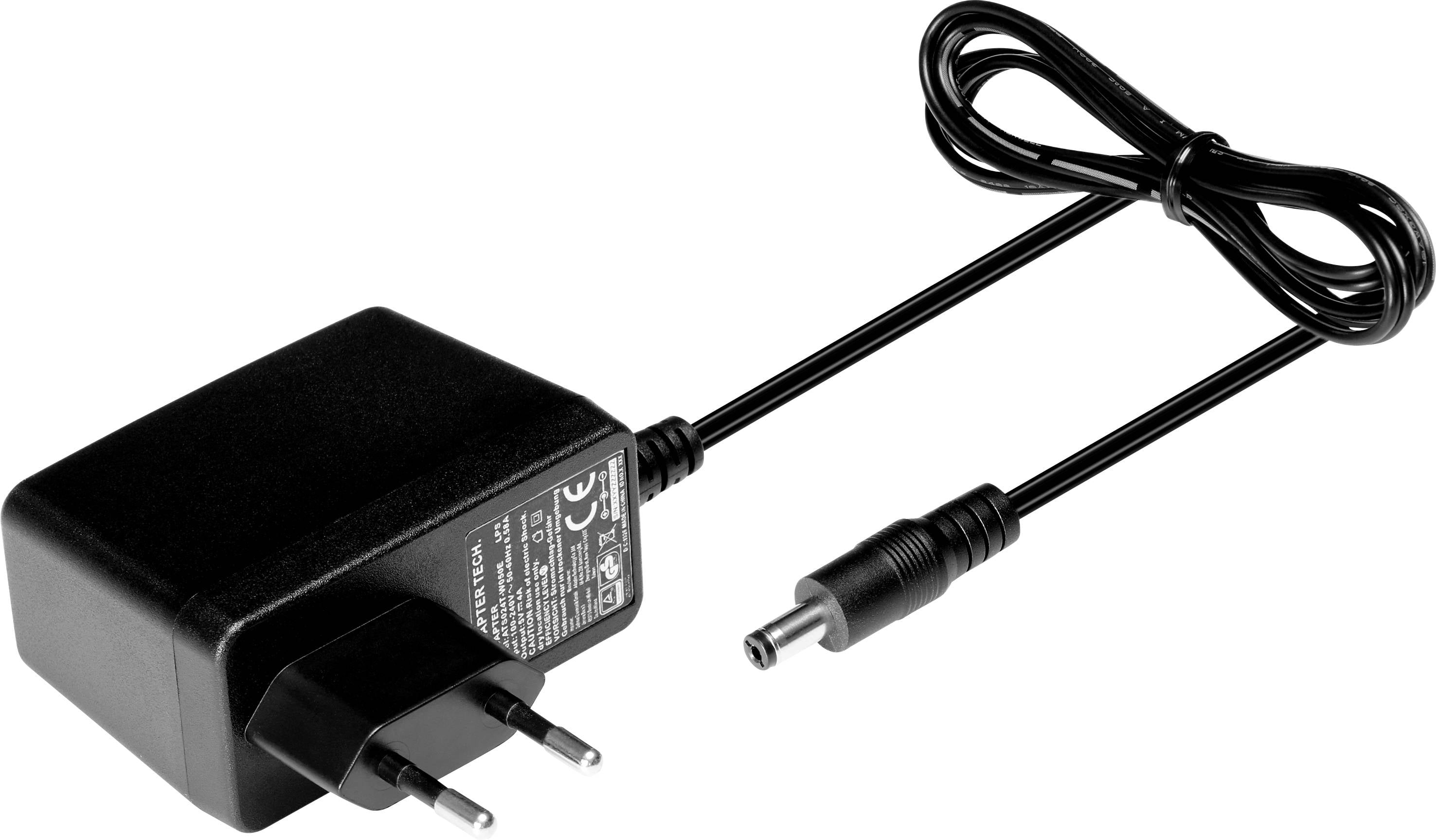

Black power supply with Euro plug and power adapter cable, typical for electronic devices.

Image similar

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

108 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Plug power supply ATS 024T-W240E Dehner Elektronik GmbH

Energy efficiency according to DoE Level VI.
Interference emission in accordance with EN 55032 - Class B.
Overvoltage protection
Overload protection
Short-circuit protection
IEC/EN 62368-1; IEC 60950-1

Technical specifications

Product type: Mains PSU (fixed voltage)

Used at: Indoors

Type: Switched PSU

Max. output current: 1 A

Output voltage: 24 V DC

Output current (max.) - rounded: 1 A

Output: 5.5/2.1 coaxial connector

Input voltage: 240 V AC

: 24 W

Dim: (L x W x H) 90 x 34 x 72 mm

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 240 V AC

Min. input voltage: 100 V AC

EuP Status: Step 2

Weight: 154 g

Width: 34 mm

Height: 72 mm

Length: 90 mm

Type: ATS 024T-W240E

Documents & Downloads

Datasheet

Datasheet 2269350 Dehner Elektronik ATS 024T-W240E Mains PSU (fixed voltage) 24 V DC 1 A 24 W

User & Safety Instructions

User & Safety Instructions 2269350 Dehner Elektronik ATS 024T-W240E Mains PSU (fixed voltage) 24 V DC 1 A 24 W

Warranty Terms

Warranty Terms 2269350 Dehner Elektronik ATS 024T-W240E Mains PSU (fixed voltage) 24 V DC 1 A 24 W

Description

Powerful, efficient power supply. Versatile use in information technology and for audio/video applications

The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and thus a low heat generation.
