Buy Dehner Elektronik SPS G018-12 Industrial PSU 12 V DC 1.5 A 18 W

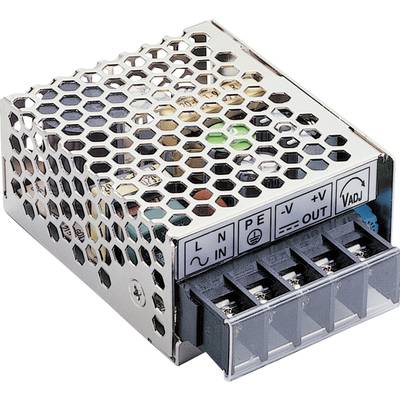

A power supply in a metal enclosure with a honeycomb structure. Visible are connections for L, N, PE, and output voltage (+V, -V).

Image similar

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 27.72 / piece)

€

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Industrial power supply SunPower SPS G018-12 Dehner Elektronik GmbH

Output 12 V DC / 1.5 A
Power 18 W
Screw terminal

Technical specifications

Max. output current: 1.5 A

Output current (max.) - rounded: 1.5 A

Dim: (L x W x H) 75 x 51 x 28 mm

Height: 28 mm

Length: 75 mm

Width: 51 mm

Connection: Screw terminal

Type: closed

PSU features: Regulated

Type: SPS G018-12

MTBF: 6263000 h

Input voltage (max.): 264 V AC

Min. input voltage: 85 V AC

Operating temperature (max.): 50 °C

Max. operating temperature (derating): 70 °C

Min. operating temperature (derating): -20 °C

Output voltage (max.): 12 V DC

No. of outputs: 1 x

: 18 W

Type: Switched PSU

Min. temperature: 85 °C

Weight: 120 g

Product type: Industrial PSU

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2354299 Dehner Elektronik SPS G018-12 Industrial PSU 12 V DC 1.5 A 18 W

Warranty Terms

Warranty Terms 2354299 Dehner Elektronik SPS G018-12 Industrial PSU 12 V DC 1.5 A 18 W

Description

Features

Standard mounting device, thus identical to products of other power supply manufacturers
Very long life by incorporating high-quality components such as Nippon Chemi-Con capacitors, etc., so high MTBF rate
Protection measures against overload, overvoltage and short circuit with automatic restart
International deployment of universal voltage input from 85 to 265 V / AC / 47 - 63 Hz or 120 to 375 V / DC
Increased temperature range of +70 ºC with derating
High efficiency, power in zero load operation 0.15 W.
High efficiency through modern switching technology
Tested according to EN 62368-1 for IT and audio/video equipment
