Name: Deko Light 565193 COB 68 CCT LED recessed light EEC: G (A - G) LED (monochrome) Built-in LED 8 W Signal white (RAL 9003)
Brand: Deko Light
SKU: 2795067
Availability: InStock

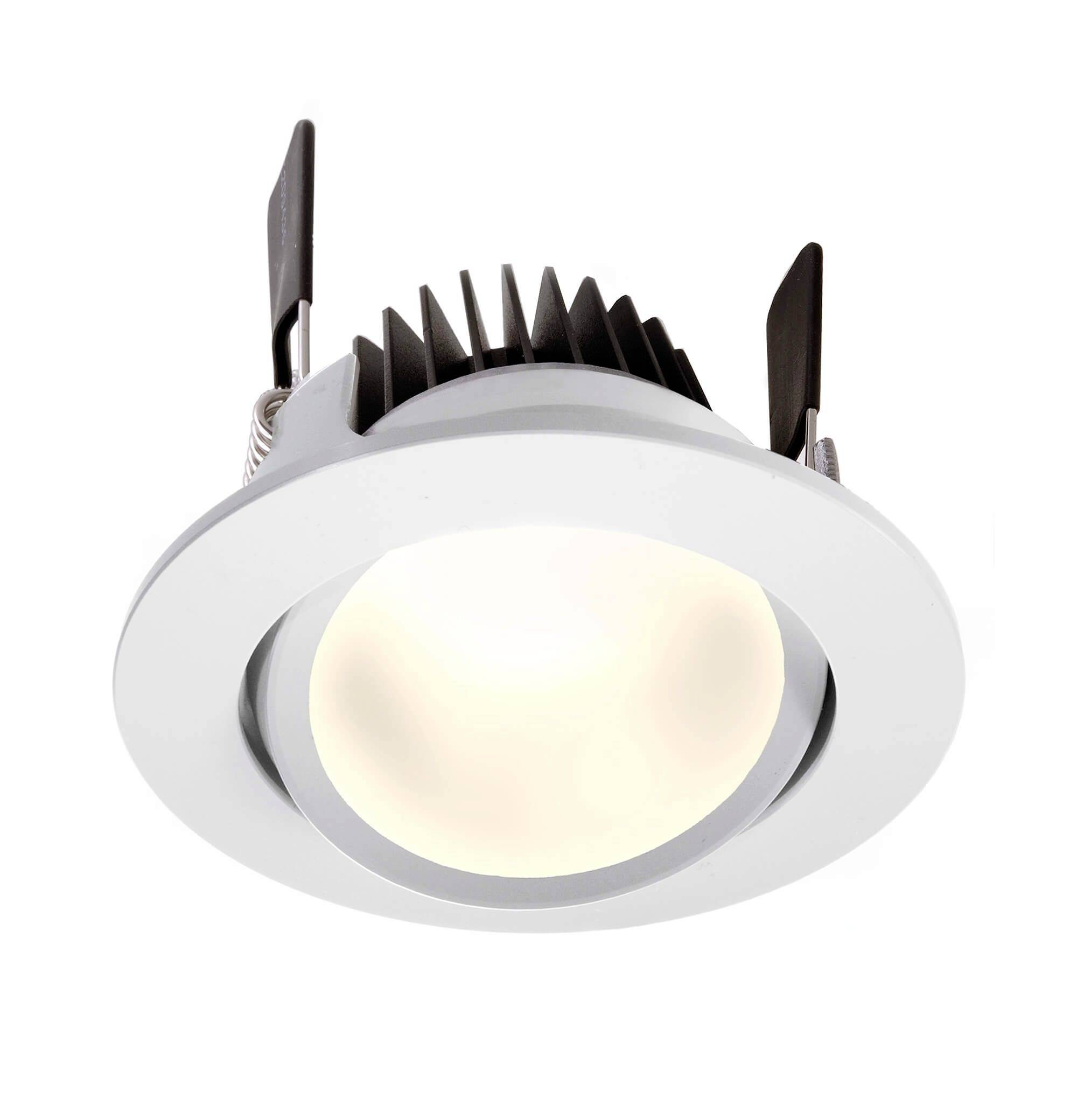

Round recessed LED ceiling light with white trim and heat sink fins on top

Deko Light 565193 COB 68 CCT LED recessed light EEC: G (A - G) LED (monochrome) Built-in LED 8 W Signal white (RAL 9003)-1

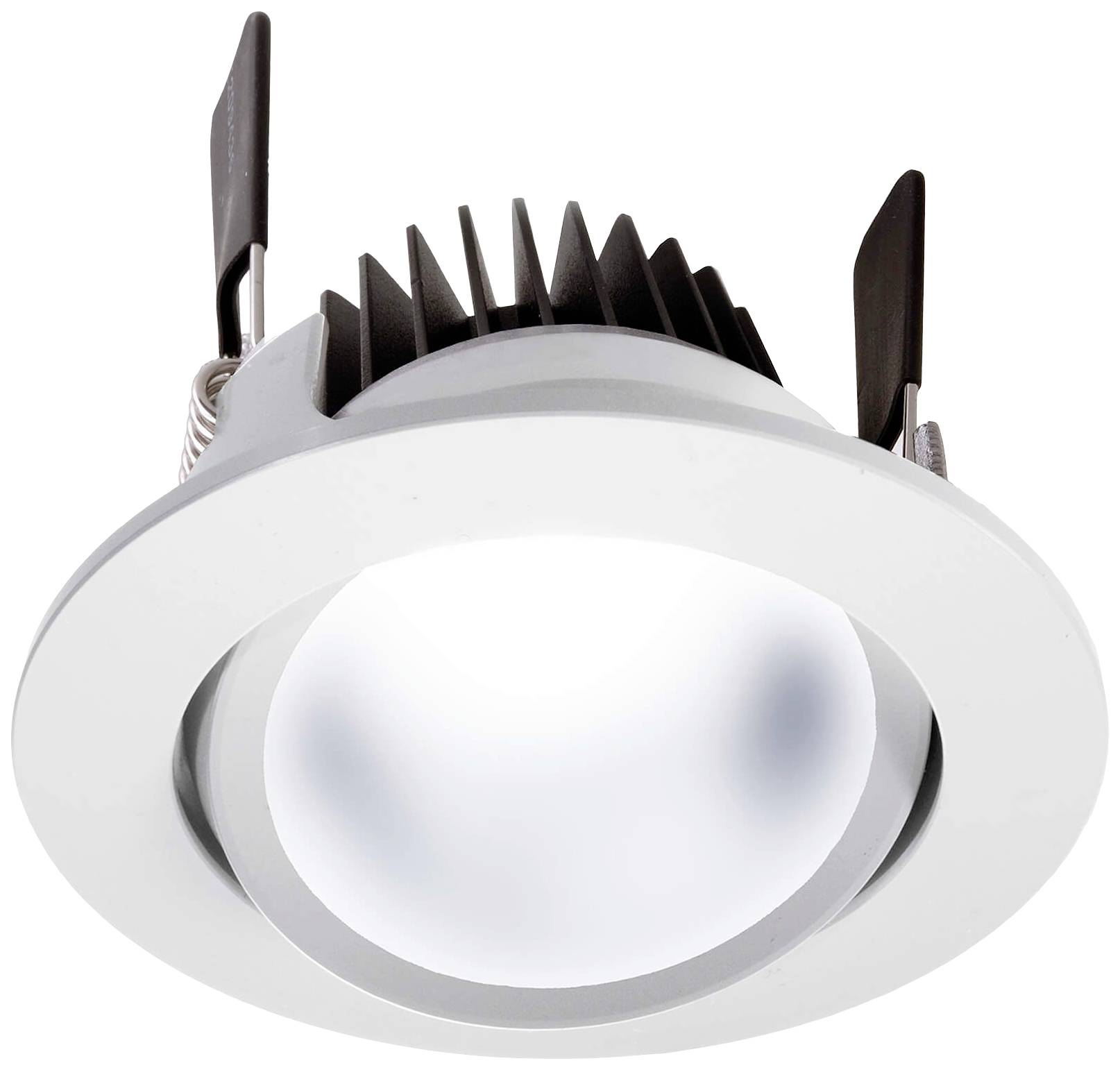

White recessed LED downlight with black heat sink and spring clips, shown against a white background.

Technical line drawing of a mechanical bracket or connector, front view, with labeled dimensions 78, 62, and 46, showing a central fastener and spring section.

Polar light distribution chart showing two nearly overlapping beam patterns, C0/180 in red and C90/270 in blue, with strongest intensity downward at 0°.<br>

1/5

Product data sheet

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

729 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED ceiling light, COB 68 CCT, round Ø 78 mm, 8W, 2500-6500 K, aluminum, white

Power= 8 W Total luminous flux= 534 lm Colour temperature= 6500 K Warm white, Cool white

Technical specifications

Input voltage 24V/DC
Control: Dimmable with optional controller
Colour reproduction Ra:80
Light intensity 364 cd
Life: 50000 h
Switching cycles: 100000
Number of LEDs:1
LED type: COB
Number of channels:2
Connectivity:open cable
Power supplies: LED power supply
Angle of inclination: 25°
Material 2: Glass
Optic 2:satined

Product type: LED recessed light

Operating voltage: 24 V DC

No. of bulbs: 1

: Built-in LED

Bulb type: LED (monochrome)

Rating per bulb: 8 W

: 8 W

: 534 lm

Total luminous flux: 534 lm

: 6500 K

Colour: Warm white
Cool white

Energy consumption: 8 kWh/1000h

Protection screen: Satinised

Radiation angle: 65°

Light features: Swivelling

Recess depth: 60 mm

Outside Ø: 68

: IP20

Protection class: III

Factory colour: Signal white (RAL 9003)

Material: Aluminium

: G (A - G)

Dim: (Ø x H) 78 mm x 46 mm

: Yes

Light bulb included: Yes

Colour temperature (max.): 6500 K

Colour temperature range: 6500 K (max)

Height: 46 mm

(Ø): 78 mm
