Name: DEWALT DCD1623N-XJ 2-speed-Magnetic power drill w/o battery, w/o charger, incl. case
Brand: DEWALT
SKU: 2729940
Price: 1859 EUR
Availability: BackOrder

A yellow and black magnetic drill machine, standing upright, with various adjustment knobs and a handle.

A yellow and black portable magnetic drill machine with multiple control elements and a drill head. It is designed for precise drilling on metal surfaces.

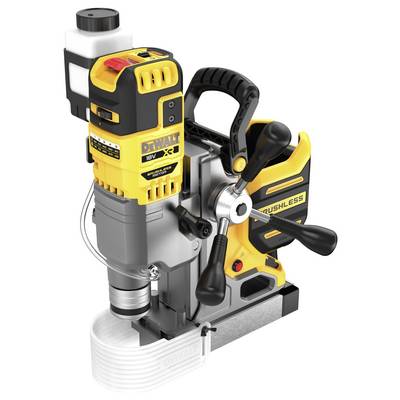

A yellow and black electromagnetic drill with an ergonomic handle and controls for precise metal machining.

A yellow and black DeWalt magnetic drill with a lever and cable, mounted on a metal base.

A yellow-black, brushless magnetic drill machine with multiple handles and a switch, suitable for precise drilling in metal.

A person is replacing the battery of a yellow, brushless DeWalt power tool in a workshop environment.

A person is using a magnetic drill with a 'brushless' marking to drill through a piece of metal.

A gloved hand operates a yellow DeWalt XR power tool with an oil container. The device is being used on a workbench.

A grey drill on a concrete floor, focus on the drill head and casing. Working precisely at the edge of a concrete slab.

Close-up of a yellow submersible pump on grey tiles; the rotary switch is set to 'Auto'.

Close-up of a yellow machine with switches on a grey tiled floor. The device section is not fully visible; context is unclear.

Close-up of a yellow machine tool machining metal. A flexible hose is connected to the device, and metal chains are visible.

A yellow, brushless drill with a black handle on grey concrete tiles. The surface of the tiles is visible in the background.

A worker in safety clothing and a hard hat is operating a yellow drill on a steel beam in a workshop environment.

A person is drilling into a metal carrier with a yellow, brushless drill in a workshop. Safety protection is being worn.

A person is drilling into a metal beam with a DeWalt magnetic drill in a workshop environment.

1/16

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,859.00 / piece)

€ 1,859.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

18 Volt cordless magnetic drill - basic version without rechargeable batteries and charger

Max. drill bit Ø 50 mm

Technical specifications

Stroke length 120 mmMax. Drilling Ø with ring cutter: 50 mmMax. Drill -Ø with spiral drill: 16 mmMax. Drilling depth 50 mmMax. Tap drill M14Max. Magnetic holding force: Approx. 9,900 NQuick-change recording 19 mm WeldonSound pressure level (LPA) 85 (db(A))Sound power level (LWA): 94 (db(A))K-value (acoustic power): 3 (dB(A))

Product type: Magnetic power drill

Operating voltage: 18 V

Max. drill diameter: 50 mm

Transmission type: 2-speed

Weight: 15 kg

Weight, information: without rechargeable battery

Tool holder: Weldon shank

Features: w/o battery
w/o charger
incl. case

Functions: Speed preselection

No. of power packs included: 0

Rotational speed range: 1. Gear:130/190/260/340/420 RPM2. Gear 250/370/500/660/810 U/min

Capacity (mAh, Ah): 15 Ah

Quick tool exchange: Yes

Max. drilling depth: 50 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2729940 DEWALT DCD1623N-XJ 2-speed-Magnetic power drill w/o battery, w/o charger, incl. case

User & Safety Instructions

User & Safety Instructions 2729940 DEWALT DCD1623N-XJ 2-speed-Magnetic power drill w/o battery, w/o charger, incl. case

Description

Extremely powerful cordless magnetic drill from the new FLEXVOLT Advantage series. Dual advantage when using XR FLEXVOLT instead of common 18 Volt XR batteries: 1.) Lower inner resistances of the battery cells ensure a better current flow to the motor. When using an XR Flex volt battery with 108 Wh or 6 Ah, this provides a significantly higher power output and thus a correspondingly stronger pull force for a maximum drill Ø of up to 50 mm. 2.) Far longer operating time thanks to the optional batteries with battery capacities of up to 15 Ah. More than 50% longer run time per battery charge and higher service life through innovative, brushless motor technology.

This text is machine translated.

Features

Innovative, brushless motor technologyPowerful permanent magnet in the base with 2-stage setting of the magnetic forceAdditional control or safe use through electronic engine lock with unset 100% magnetic forceElectronic safety shutdown switches the device off as soon as the magnet lifts off the material (e.g. due to excess feed)V-shaped recesses in the base for safe and anti-tipping positioning on metal pipes19 mm Weldon chuck for tool-free changing and secure fit of the drill bitsOptimally on the material to be processed as well as on the applicable drill types2-speed transmission with 5 electronic settings eachProblem-free long-term use through safety electronicsElectronic clutch switches off the motor automaticallySwitchable right / left operation for loosening bent drills or for cutting threadsAdditional hand grip for safe and application-specific useHighly adjustable motor/gear unit for easy use of all drillsAutomatic ejection of the metal drill core, as soon as the drill head is liftedLarge-sized coolant tank ensures problem-free long-term use and longer service life of the drills usedPrepared for tracking module for easier and faster location by the magazineCan be used with all 18 Volt XR and XR Flex volt batteries (not supplied)

Scope of delivery

1x battery-magnetic drill
1x coolant tank (for cutting oil or -Emulsion) with bracket and connecting hose
1x additional handle
1x safety chain
1x chip protection
1x 16 mm gear ring drill chuck with Weldon shaft
1x transportation case
