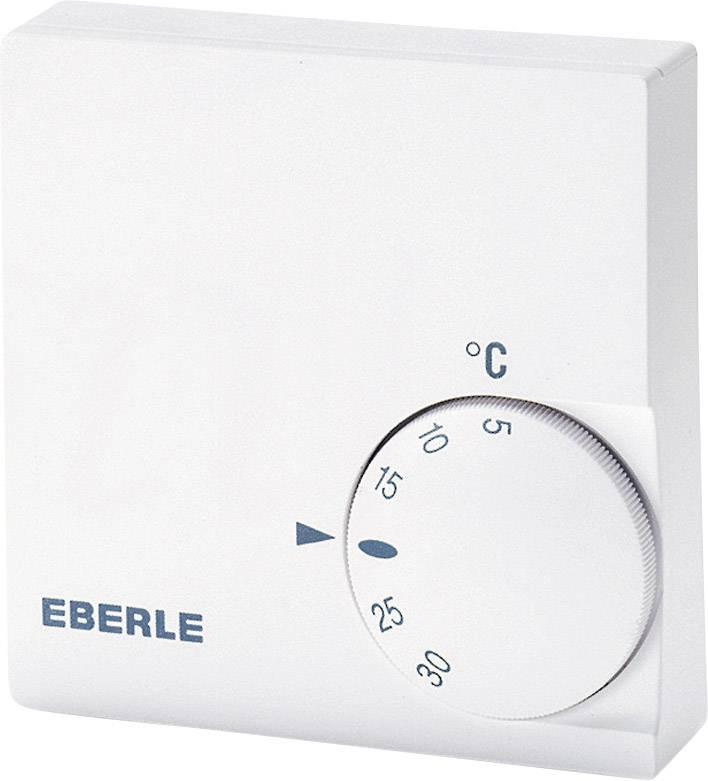

Eberle 111 1102 51 100 RTR-E 6124 Indoor thermostat Surface-mount 24h mode Heating 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
14-day return policy included
Highlights & Details
Eberle RTR-E 6124, room temperature controller
- Room regulator5 - 30 C.AC 230 V.1 Oe10 AWith TA approx. 5K
Technical specifications
- Product type
Indoor thermostat
- Operation type
electronical
- Switching cycle
24h mode
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Frost protection
No
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Surface-mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Hysteresis
0.5 °C
- Contact load capacity
230 V/10 4 - 18 A
- Nighttime drop
No
- Factory colour
Pure white
- Similar RAL
9010
- Width
2.6 cm
- Height
25.5 mm
- Length
7.5 cm
IP30
- Dim
(L x W x H) 7.5 cm x 2.6 cm x 25.5 mm
- Type
Heating
- Weight
75 g
- Contact type
1 breaker
- Min. temperature setting
5 °C
- Adjustment range
5 - 30 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 560856 Eberle 111 1102 51 100 RTR-E 6124 Indoor thermostat Surface-mount 24h mode Heating 1 pc(s)
Description
Room regulators for wall mounting. Suitable for the regulation of central-, hot water floor-, electrical-, night storage heaters etc. Bimetal technology with thermal feedback and high precision. Temperature reduction possible via an external timer switch. Range can be limited as a heating cost brake with the setting knob. Surface mounting or directly on UP-socket with vertical mounting holes or snap-on mounting on DIN-rails.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ROOM TEMPERATURE REGULATOR User manual
