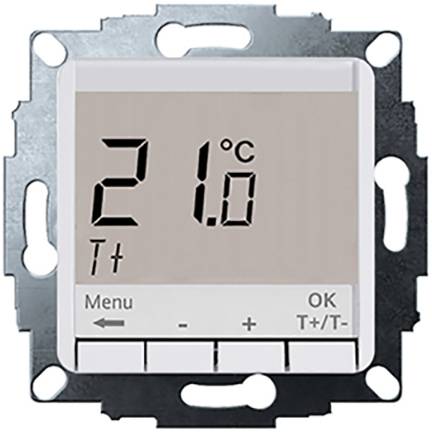

Eberle 527825455103 UTE 4100 / weiß Indoor thermostat Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Highlights & Details
EBERLE UTE 4100/white UP-Thermostat
- FLUSH-MOUNTED thermostat as room controllerAC 230 V, 1 changeover contactHeating 5(2) A, Cooling 1(1) A.Backlight white
Technical specifications
- Temperature display: 0.1°C steps
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Frost protection
Yes
- Display
Yes
- Remote sensor
Optional
- Compatible with
Underfloor heating
Heaters
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Hysteresis
Adjustable (at 2-point)
- Nighttime drop
Yes
- Factory colour
Pure white
- Similar RAL
9010
- Width
55 mm
- Height
50 mm
IP30
- Dim
(W x H) 55 mm x 50 mm
- Weight
130 g
- Contact type
1 change-over
- Min. temperature setting
5 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559437 Eberle 527825455103 UTE 4100 / weiß Indoor thermostat Flush mount 1 pc(s)
Description
Flush-mounted thermostat is suitable for controlling central, warm water floor, warm air heaters, etc. Very large display, the backlight is off in white, briefly on after pressing a button. One-line text display for self-explanatory operation. Easy switching between 2 temperatures (e.g. Comfort and lowering temperature). ECO input for activating a freely adjustable temperature, e.g. for night reduction. Short-time timer (party) for changing the temperature for hours. Energy consumption display (on-time * costs). Frost protection. Unauthorized access. PWM or 2-point control procedure. Adaptation to valves without current supply. Heating or cooling can be set. Valve protection. Mounting in 55er flush-mounted socket
This text is machine translated.
This text is machine translated.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
