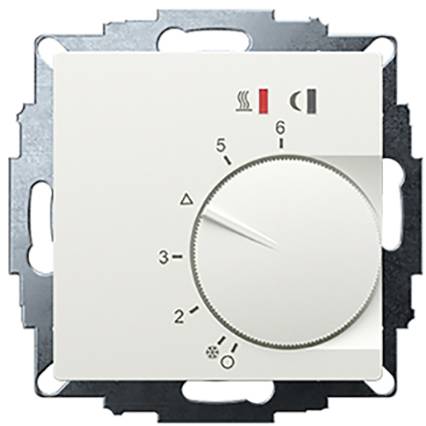

Eberle 547816154102 UTE 2800-F-RAL9010-M-55 Indoor thermostat Flush mount Heating 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
14-day return policy included
Highlights & Details
Eberle UTE 2800-F-RAL9010-M-55 UP-thermostat
- Thermostat as floor level controller10 - 40 C.AC230V16 A1 NOCPWM or 2 point control adjustablePower switchTALED displayRemote sensors
Technical specifications
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
40 °C
- Temperature settings
10 up to 40 °C
- Frost protection
Yes
- Display
No
- Remote sensor
Yes
- Compatible with
Underfloor heating control
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
16 A
- Nighttime drop
Yes
- Factory colour
Polar white (matt)
- Similar RAL
9010
- Width
55 mm
- Height
55 mm
IP30
- Dim
(W x H) 55 mm x 55 mm
- Type
Heating
- Weight
240 g
- Contact type
1 maker
- Min. temperature setting
10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559411 Eberle 547816154102 UTE 2800-F-RAL9010-M-55 Indoor thermostat Flush mount Heating 1 pc(s)
Description
Electronic flush-mounted thermostat is suitable for controlling electric floor and wall/ceiling heating. Regulate or monitor temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Polar white matt, 55x55 cover with button. Various parameters can be set on the device: Remote sensor, limit, temperature reduction, current as well as control algorithm (pulse width modulation or 2 point control). When the watch clamp is connected, the temperature is controlled to a lower level (adjustable 3.5C / 6C / 9C). With LED status indicators. Power switch (on/off) can be operated via adjustment wheel. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. With 4 m remote sensor included in delivery. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Features
- Power switchTALED displayIncl. Remote sensor 4 m.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
