Name: Eberle 547816154302 UTE 2800-F-Anthrazit-55 Indoor thermostat Flush mount 1 pc(s)
Brand: Eberle
SKU: 2559413
Availability: BackOrder

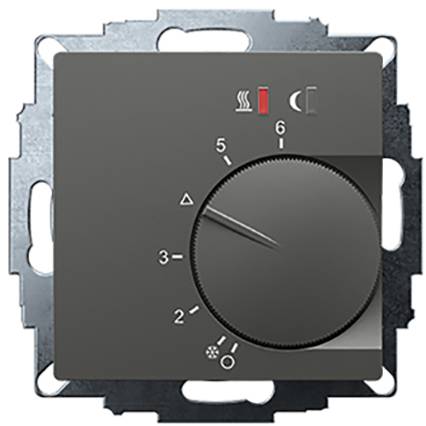

A black thermostat control for electric heaters, marked from 0 to 6 with symbols for heat and fan function.

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

EBERLE UTE 2800-F-Anthracite-55 UP-Thermostat

FLUSH-MOUNTED thermostat as floor controller10 - 40 C, 230 V AC, 16 A, 1 CLOSERPWM or 2 point control can be set

Technical specifications

Product type: Indoor thermostat

Operation type: electronical

Max. temperature setting: 40 °C

Temperature settings: 10 up to 40 °C

Frost protection: Yes

Display: No

Remote sensor: Yes

Compatible with: Underfloor heating control

Mounting type: Flush mount

Power supply (LOV): mains-powered

Operating voltage: 230 V

Contact load capacity: 16 A

Nighttime drop: Yes

Factory colour: Anthracite (matt)

Width: 55 mm

Height: 55 mm

Length: 4 m

: IP30

Dim: (L x W x H) 4 m x 55 mm x 55 mm

Weight: 240 g

Contact type: 1 maker

Min. temperature setting: 10 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2559413 Eberle 547816154302 UTE 2800-F-Anthrazit-55 Indoor thermostat Flush mount 1 pc(s)

Description

Electronic flush-mounted thermostat is suitable for controlling electric floor and wall/ceiling heating. Regulate or monitor temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Anthracite, 55x55 cover with button. Various parameters can be set on the device: Remote sensor, limit, temperature reduction, current as well as control algorithm (pulse width modulation or 2 point control). When the watch clamp is connected, the temperature is controlled to a lower level (adjustable 3.5C / 6C / 9C). With LED status indicators. Power switch (on/off) can be operated via adjustment wheel. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. With 4 m remote sensor included in delivery. Mounting in 55er flush-mounted socket.
