Name: Endress+Hauser RNO22 RNO22-8M1A 1 pc(s)
Brand: Endress+Hauser
SKU: 2886374
Availability: BackOrder

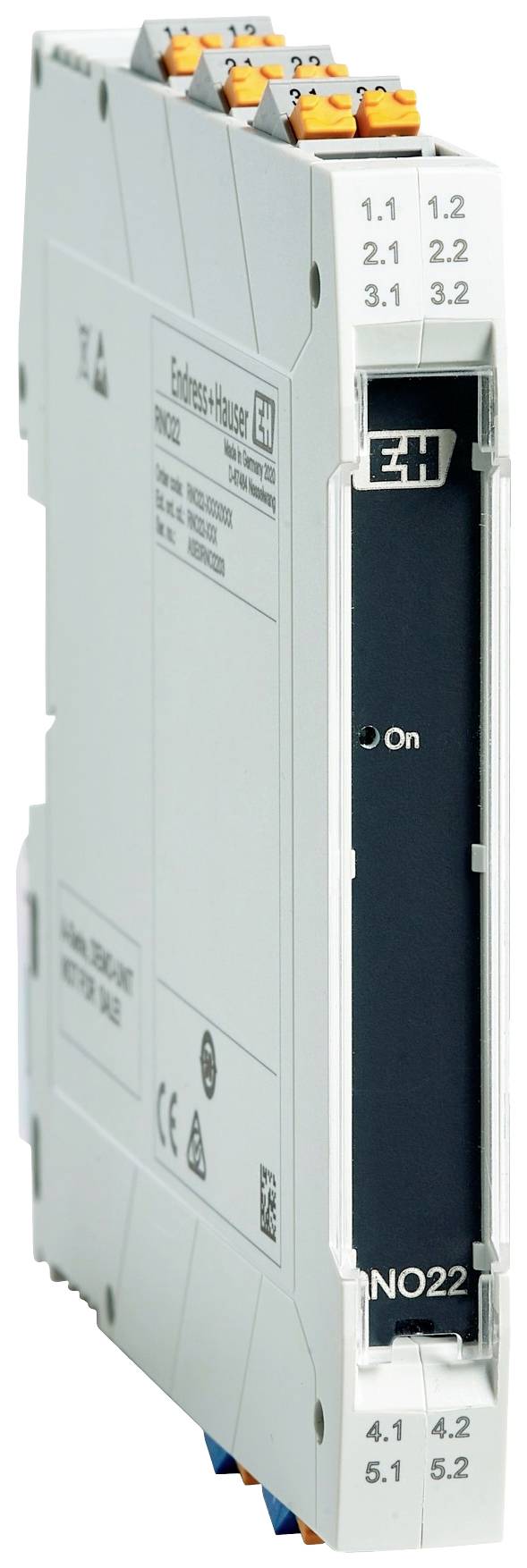

Industrial device in a rectangular housing, with electrical connections at the top and bottom, black front panel with an 'On' indicator.

Input signal (current) (max.)

20 mA

Type

RNO22

Connection

Screw terminal

Output (current)

4 - 20 mA

Input signal (current)

0/4 bis 20 mA

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 229.99 / piece)

€ 229.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Output amplifier

Approval: ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec IIC GC
Electrical connection: Screw terminals
Channel 1 channel

Technical specifications

Type: RNO22

Input signal (current) (max.): 20 mA

Connection: Screw terminal

Output (current): 4 - 20 mA

Input signal (current): 0/4 bis 20 mA

Content: 1 pc(s)

RoHS-compliant: Yes

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

Supply voltage (num.): 24 V DC

Operating voltage U(B): 24 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886374 Endress+Hauser RNO22 RNO22-8M1A 1 pc(s)

Description

The RNO22 is a 1- or 2-channel output isolation amplifier 24 V DC with bidirectional HART transparency for digital communication with intelligent actuators. It is used to safely control active components such as control valves, actuators, I/P converters or display devices. The intrinsically safe device separates and transmits analogue signals 0/4 to 20 mA. The compact interface device with up to two galvanically separated channels allows for idle and short circuit monitoring for reliable operation of critical systems.

This text is machine translated.

Features

Reliable control of active components such as control valves, current/pressure converters
Quick and easy wiring and start-up
Accurate and reliable signal transmission
Circuit breaker and short-circuit monitoring

Description

Features

Reliable control of active components such as control valves, current/pressure converters
Quick and easy wiring and start-up
Accurate and reliable signal transmission
Circuit breaker and short-circuit monitoring
