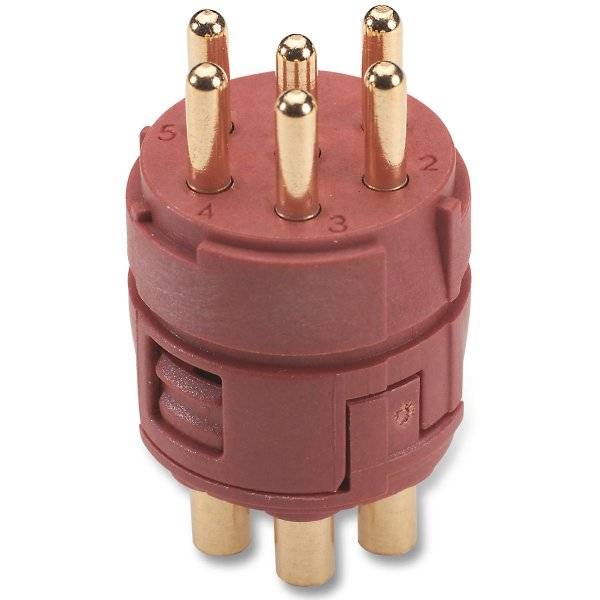

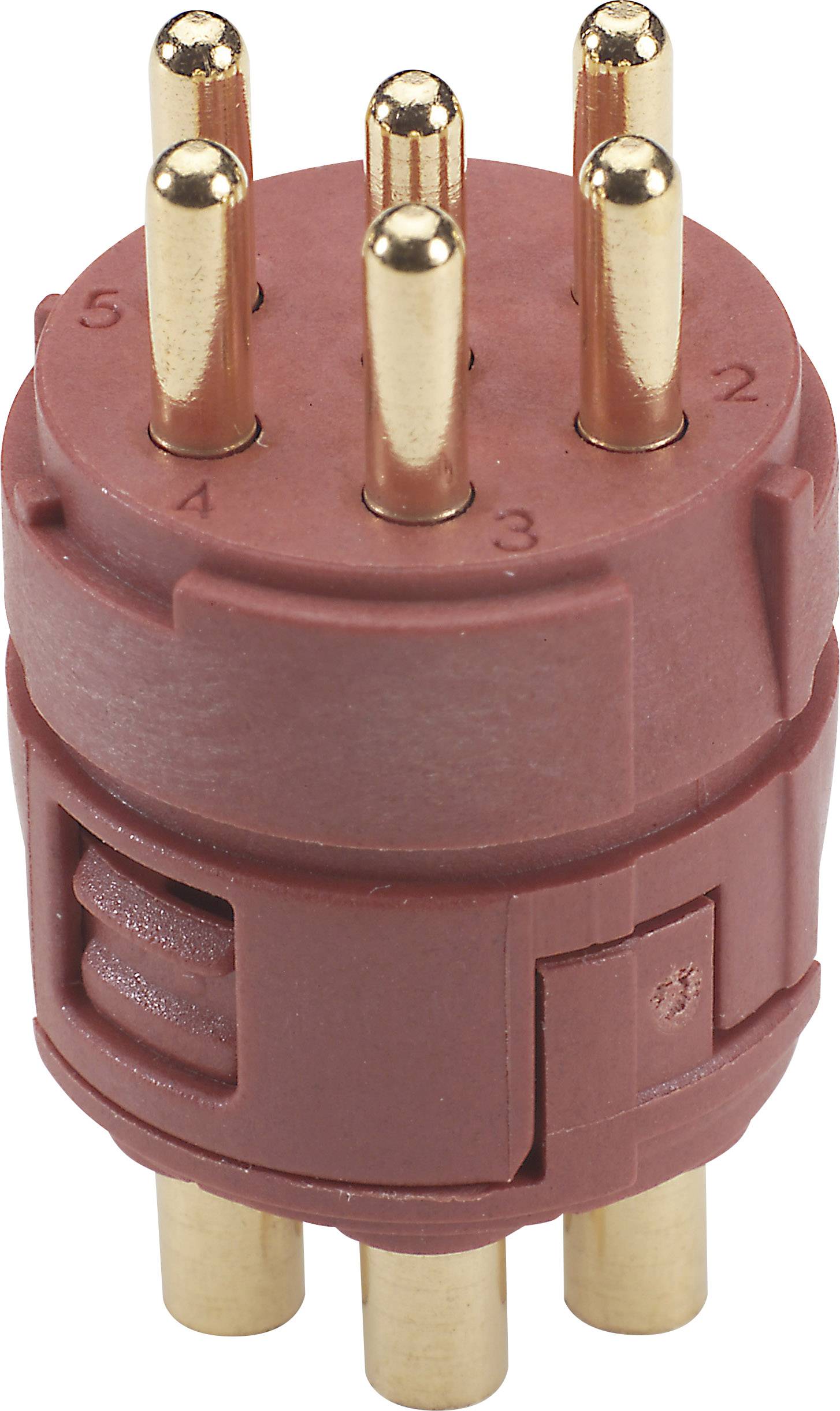

EPIC ® SIGNAL M23 inserts, 6-pin 73002769 73002769 LAPP Content: 20 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
M23 insert
Mounting type
Solder lug
Connector type
Plug
Connection
Soldering
Crimp
Datasheet (PDF)
Total (€ 8.61 / piece)
€ 172.26
plus VAT.
14-day return policy included
Highlights & Details
EPIC ® SIGNAL M23 inserts, 6-pin
Technical specifications
- Packaging type
Piece
- Product type
M23 insert
- Mounting type
Solder lug
- Connector type
Plug
- Connection
Soldering
Crimp
- Connector cross section
1 - 2.50 mm²
- Rated voltage
150 V
- Test current
18 A
- Total no. of pins
6
- Manufacturer part #
73002769
- Industrial packaging
Yes
- Content
20 pc(s)
- Contact material
Brass gold plated
- Core diameter
0.08mm² - 2.5mm² mm²
- Number of pins
6
- RoHS-compliant
Yes
- Features
Right-hand
- Type
73002769
- Leading contact (PE)
No
- Type
E part, right-hand
- Contamination level
3
- Temperature range
-25 °C - +125 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1576127 EPIC ® SIGNAL M23 inserts, 6-pin 73002769 73002769 LAPP Content: 20 pc(s)
User & Safety Instructions
User & Safety Instructions 1576127 EPIC ® SIGNAL M23 inserts, 6-pin 73002769 73002769 LAPP Content: 20 pc(s)
Description
Scope of delivery
- With Contacts
- This text is machine translated.
