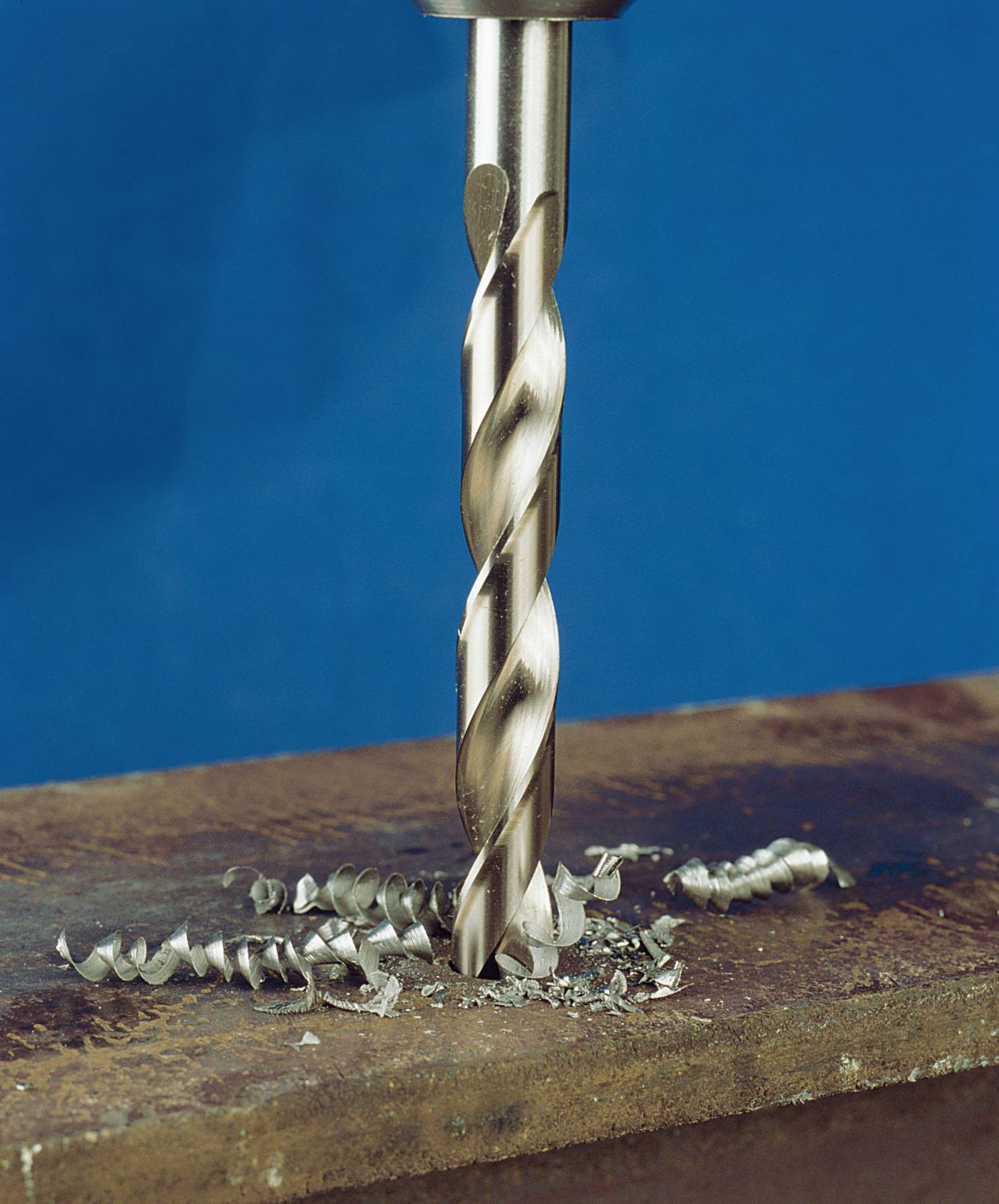

A metal drill bit penetrates a metal surface, with metal shavings forming around the drilling point. The background is blue.

1/2

Image similar

Exact

Product type

Metal twist drill bit

Drill hole Ø

0.5 mm

Content

10 pc(s)

Material

HSS

Material suitability

Metal

Plastic

Non-ferrous metal

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

5 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 1.20 / piece)

€ 11.99

incl. VAT

Only 5 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 0.5 mm

Drill hole Ø tolerance limit: h 8

Tip angle: 118°

Content: 10 pc(s)

Material: HSS

Material properties: cut

Material suitability: Metal
Plastic
Non-ferrous metal

Tensile strength (max.): 900 N/mm²

Tool holder: Cylinder shank

Shank Ø: 0.5 mm

Working length: 6 mm

Total length: 22 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1215391 Exact 32103 HSS Metal twist drill bit 0.5 mm Total length 22 mm cut DIN 338 Cylinder shank 10 pc(s)

Description

Usage areas: For steel, cast steel alloyed and unalloyed (up to 900 N/mm² strength), grey cast iron, malleable cast iron, spheroid iron and pressure casting, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass and bronze Ausspitzung: from Ø 3.0 mm. Etched to DIN1412 C. Tip angle: 118° Surface: polished · Cone shaped section • spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting.

Hints

This text is machine translated.

Description

Usage areas: For steel, cast steel alloyed and unalloyed (up to 900 N/mm² strength), grey cast iron, malleable cast iron, spheroid iron and pressure casting, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass and bronze Ausspitzung: from Ø 3.0 mm. Etched to DIN1412 C. Tip angle: 118° Surface: polished · Cone shaped section • spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting.

Hints

This text is machine translated.
