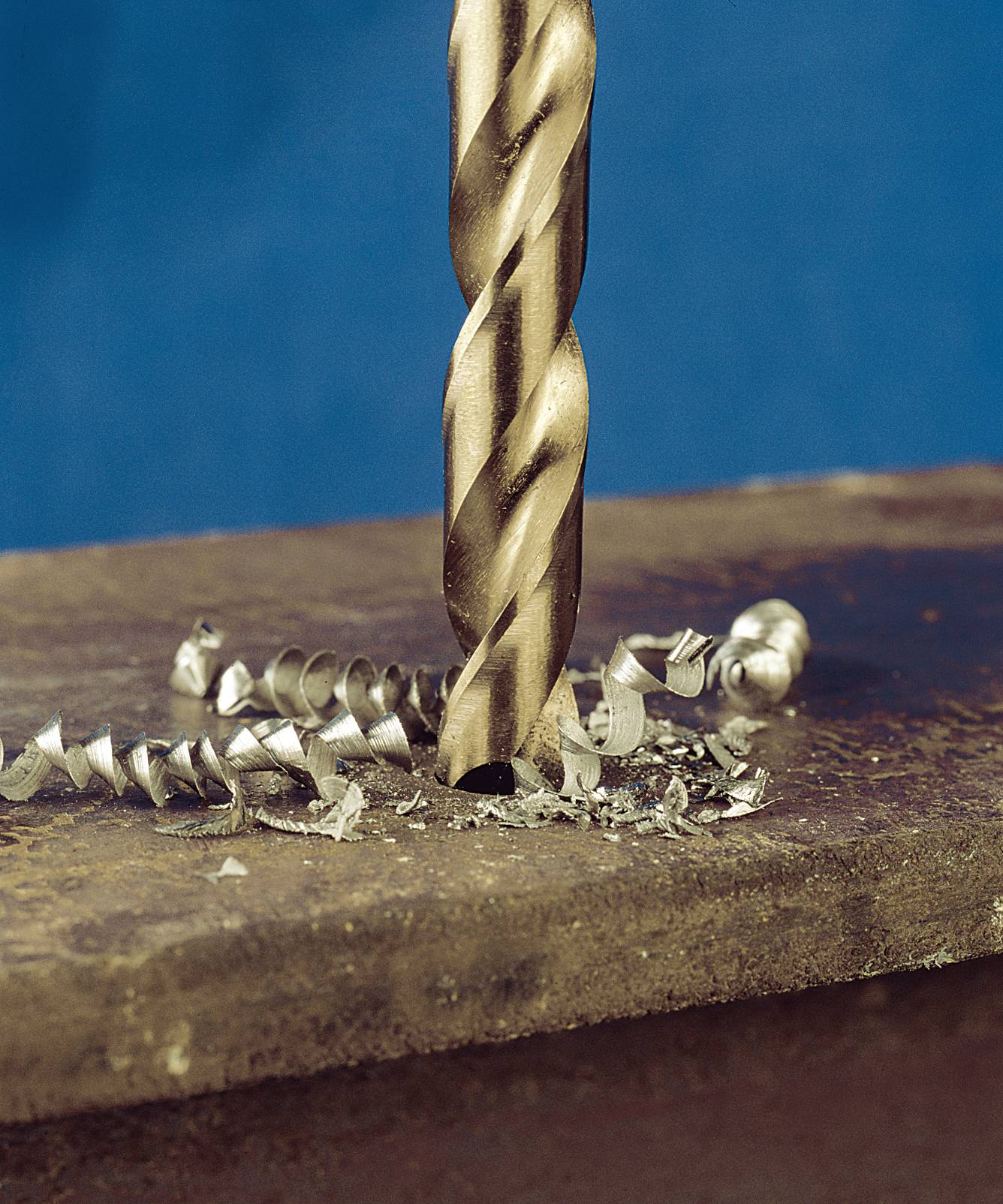

Exact 32374 HSS Metal twist drill bit 6.5 mm Total length 101 mm cut, cobalt DIN 338 Cylinder shank 10 pc(s)
EAN:
Part number:
Item no:
Product type
Metal twist drill bit
Drill hole Ø
6.5 mm
Content
10 pc(s)
Material
HSS
Material suitability
Metal
Plastic
Non-ferrous metal
Stainless steel
Number (Package size 10 pc(s))
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Technical specifications
- Product type
Metal twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
6.5 mm
- Drill hole Ø tolerance limit
h 8
- Tip angle
130°
- Content
10 pc(s)
- Material
HSS
- Material properties
cut
cobalt
- Material suitability
Metal
Plastic
Non-ferrous metal
Stainless steel
- Tensile strength (max.)
900 N/mm²
- Tool holder
Cylinder shank
- Shank Ø
6.5 mm
- Working length
63 mm
- Total length
101 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1215596 Exact 32374 HSS Metal twist drill bit 6.5 mm Total length 101 mm cut, cobalt DIN 338 Cylinder shank 10 pc(s)
Description
Areas of application for legi eret and unalloyed steels (up to 900 N/mm2 strength), hot and cold work steels, remuneration and use steel as well as for rostund acid-resistant steels. The cobalt-Share provides for a higher heat hard resistance. Cone shaped section • spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting · Ausspitzung: from Ø 3.0 mm. Etched to DIN1412 C. Tip angle: 130°. Surface: golden brown properties. As HSS-G plus cobalt alloy.
Hints
This text is machine translated.
