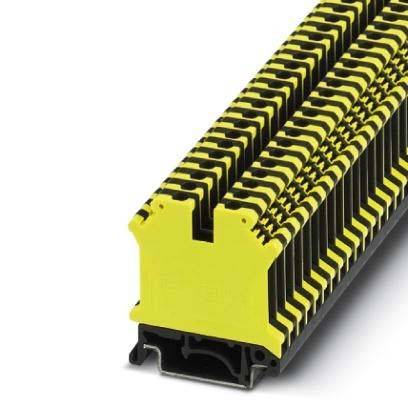

Feed-through modular terminal block UK 4-EX BKYE-FE 0531210 Phoenix Contact
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Black
Yellow
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
0531210
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 4-EX BKYE-FE
- Dim
(L x W x H) 42.5 x 6.2 x 47 mm
- Width
6.2 mm
- Height
47 mm
- Length
42.5 mm
- Flammability rating
V2
- Connector colour
Black/yellow
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565397 Feed-through modular terminal block UK 4-EX BKYE-FE 0531210 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565397 Feed-through modular terminal block UK 4-EX BKYE-FE 0531210 Phoenix Contact
Description
Feed-through modular terminal block
