Feed-through terminal block PT 2,5-QUATTRO/2P BU 3209675 Phoenix Contact

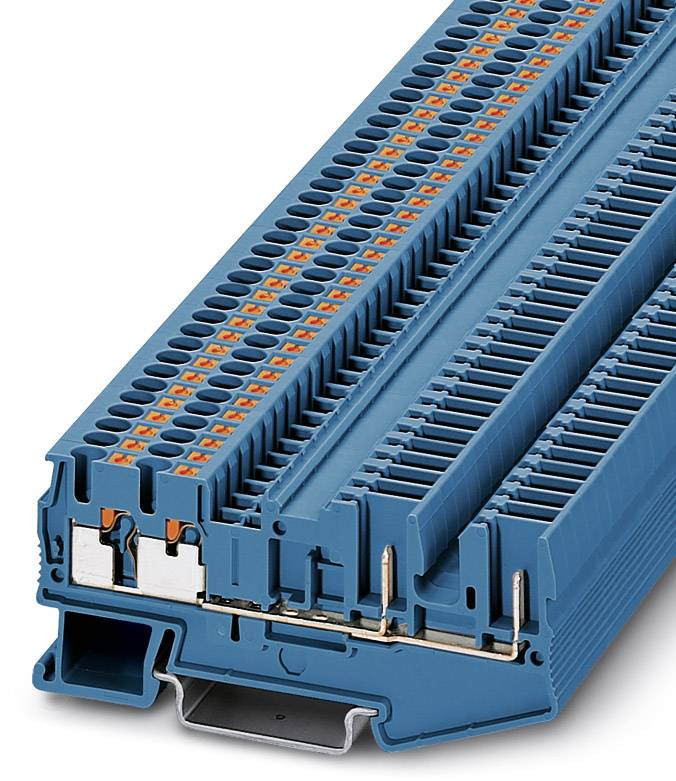

Industrial terminal block in blue plastic with multiple connection rows and metallic contacts, used for electrical connection.
Image similar
Packaging type
Piece
Product type
Serial continuity
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 3 Nov
11 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 1.56 / piece)
€ 77.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Connection

Quick-connect

Cross section (flexible) (min.)

0.14 mm²

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (min.)

0.14 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

26

AWG max.

14

Clamp width

5.2 mm

No. of rows

1

Number of pins

4

Factory colour

Blue

Nominal current

24 A

Nominal current - rounded value

24 A

Nominal voltage

500 V

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3209675

Content

50 pc(s)

Industrial packaging

Yes

Type

PT 2,5-QUATTRO/2P BU

Dim

(L x W x H) 81 x 5.2 x 36.5 mm

Width

5.2 mm

Height

36.5 mm

Length

81 mm

Flammability rating

V0

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 587650 Feed-through terminal block PT 2,5-QUATTRO/2P BU 3209675 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 587650 Feed-through terminal block PT 2,5-QUATTRO/2P BU 3209675 Phoenix Contact

Description

Feed-through terminal block, Connection method: Push-in / plug connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
