Name: Feed-through terminal block STS 6 BU 3038134 Phoenix Contact
Brand: Phoenix Contact
SKU: 565757
Availability: SoldOut

Blue electrical terminal block with multiple connection points, suitable for wiring in control panels and distribution boxes.

Image similar

Packaging type

Piece

Product type

Serial continuity

Connection

Pull spring

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (max.)

10 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2.10 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

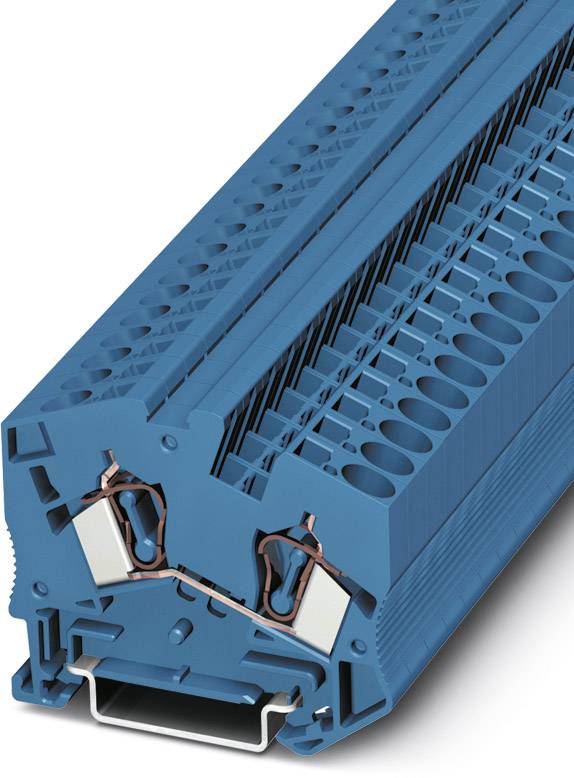

Feed-through terminal block STS 6 BU

STS 6 BU

Technical specifications

Packaging type: Piece

Product type: Serial continuity

Connection: Pull spring

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 10 mm²

AWG (min.): 24

AWG max.: 10

Clamp width: 8.2 mm

No. of rows: 1

Number of pins: 2

Factory colour: Blue

Nominal current: 41 A

Nominal current - rounded value: 41 A

Nominal voltage: 800 V

Stripping length (max.): 12 mm

Manufacturer part #: 3038134

Content: 50 pc(s)

Industrial packaging: Yes

Type: STS 6 BU

Dim: (L x W x H) 58 x 8.2 x 50 mm

Width: 8.2 mm

Height: 50 mm

Length: 58 mm

Contamination level: 3

Flammability rating: V0

Connector colour: Blue

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 565757 Feed-through terminal block STS 6 BU 3038134 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565757 Feed-through terminal block STS 6 BU 3038134 Phoenix Contact

Description

Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 8.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15

Description

Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 8.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
