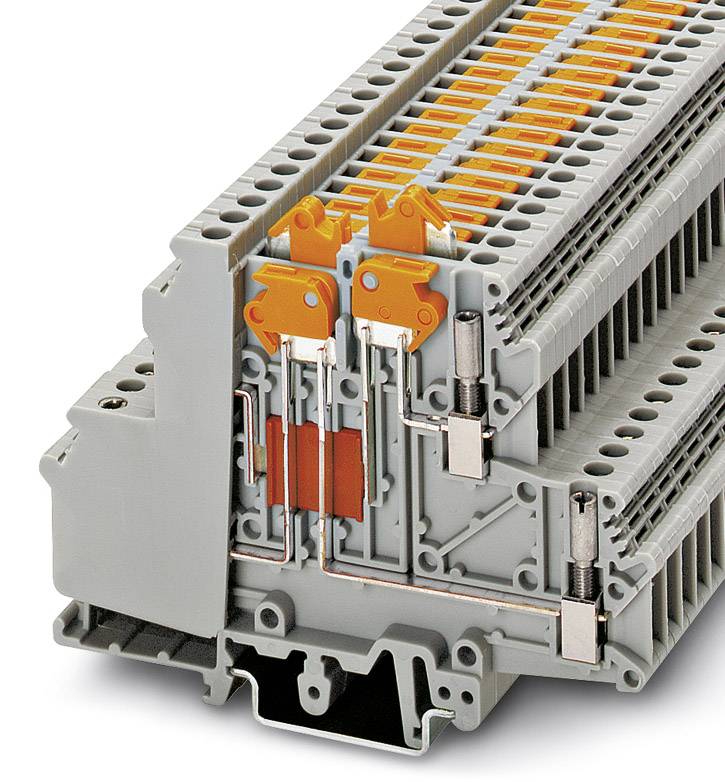

Feed-through terminal block UDMTK 5-P/P BU 3101113 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 16.10 / piece)
€ 899.00
-10 %
€ 805.00
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Package
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Blue
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
400 V
- Stripping length (max.)
8 mm
- Manufacturer part #
3101113
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UDMTK 5-P/P BU
- Dim
(L x W x H) 93 x 6.2 x 68.5 mm
- Width
6.2 mm
- Height
68.5 mm
- Length
93 mm
- Contamination level
3
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 565273 Feed-through terminal block UDMTK 5-P/P BU 3101113 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565273 Feed-through terminal block UDMTK 5-P/P BU 3101113 Phoenix Contact
Description
Feed-through terminal block, Connection type: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Nominal current: 10 A, Nominal voltage: 400 V, Length: 93 mm, Width: 6.2 mm, Color: blue, Assembly: NS 35/7,5, NS 35/15, NS 32
