Feed-through terminal block UK 5-TWIN BU 1923047 Phoenix Contact

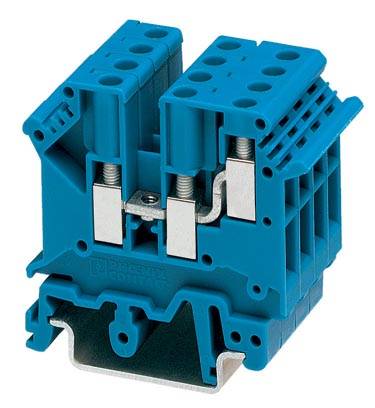

Blue plastic electrical junction block with multiple connection points and metal fixing elements.
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 2 Nov
88 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 3.60 / piece)
€ 179.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Connection

Screws

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

24

AWG max.

12

Clamp width

6.2 mm

No. of rows

2

Number of pins

3

Factory colour

Blue

Nominal current

32 A

Nominal current - rounded value

32 A

Nominal voltage

500 V

Stripping length (max.)

8 mm

Manufacturer part #

1923047

Content

50 pc(s)

Industrial packaging

Yes

Type

UK 5-TWIN BU

Dim

(L x W x H) 50.5 x 6.2 x 47 mm

Width

6.2 mm

Height

47 mm

Length

50.5 mm

Contamination level

3

Flammability rating

V2

Connector colour

Blue

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 565117 Feed-through terminal block UK 5-TWIN BU 1923047 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565117 Feed-through terminal block UK 5-TWIN BU 1923047 Phoenix Contact

Description

1-level terminal block with double connection on one side, cross section: 0.2 - 4 mm², AWG: 24 - 12, width: 6.2 mm, color: blue
