Feed-through terminal block UKKB 5 BU 3216053 Phoenix Contact

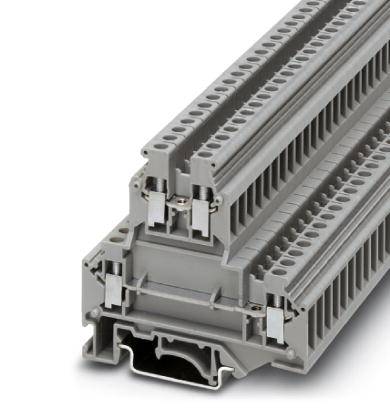

A grey, modular terminal block with multiple connection points, suitable for industrial or electrical applications.
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 4 Nov
2 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 5.98 / piece)
€ 299.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Set(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block UKKB 5 BU

  • UKKB 5 BU

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Connection

Screws

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

24

AWG max.

12

Clamp width

6.2 mm

No. of rows

2

Number of pins

4

Factory colour

Blue

Nominal current

32 A

Nominal current - rounded value

32 A

Nominal voltage

500 V

Stripping length (max.)

8 mm

Manufacturer part #

3216053

Content

50 pc(s)

Industrial packaging

Yes

Type

UKKB 5 BU

Dim

(L x W x H) 67 x 6.2 x 62 mm

Width

6.2 mm

Height

62 mm

Length

67 mm

Flammability rating

V0

Connector colour

Blue

Insulation material

PA

Insulation

PA

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 566059 Feed-through terminal block UKKB 5 BU 3216053 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566059 Feed-through terminal block UKKB 5 BU 3216053 Phoenix Contact

Description

Feed-through terminal block, Cross section:  0.2 mm² - 4 mm², AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15, NS 32

Hints

Special order, no right of withdrawal.
