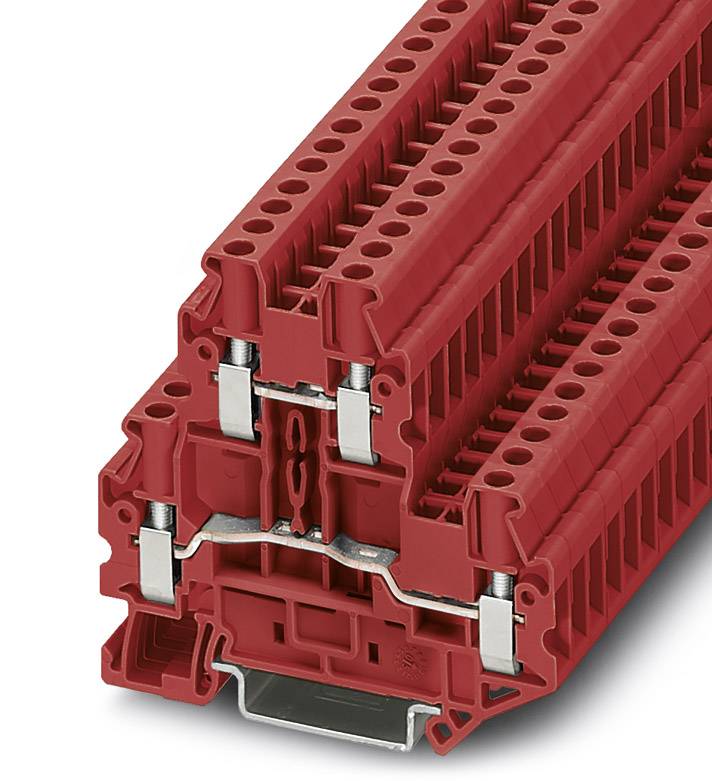

Feed-through terminal block UTTB 4 RD 3046786 Phoenix Contact

Red terminal block, modular in design, with silver contacts. Suitable for electrical connections in industrial applications.
Image similar
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 20 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 3.40 / piece)
€ 169.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block UTTB 4 RD

  • UTTB 4 RD

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Features

with screw connection

Connection

Screws

Cross section (flexible) (min.)

0.14 mm²

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (min.)

0.14 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

26

AWG max.

10

Clamp width

6.2 mm

No. of rows

2

Number of pins

4

Factory colour

Red

Nominal current

30 A

Nominal current - rounded value

30 A

Nominal voltage

800 V

Stripping length (max.)

9 mm

Manufacturer part #

3046786

Content

50 pc(s)

Industrial packaging

Yes

Type

UTTB 4 RD

Dim

(L x W x H) 69.9 x 6.2 x 65 mm

Width

6.2 mm

Height

65 mm

Length

69.9 mm

Flammability rating

V0

Connector colour

Red

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 566175 Feed-through terminal block UTTB 4 RD 3046786 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566175 Feed-through terminal block UTTB 4 RD 3046786 Phoenix Contact

Description

Double-level terminal block with screw connection, cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, width: 6.2 mm, color: red

Hints

Special order, no right of withdrawal.
