Feed-through terminal block UW 4/S 3073319 Phoenix Contact

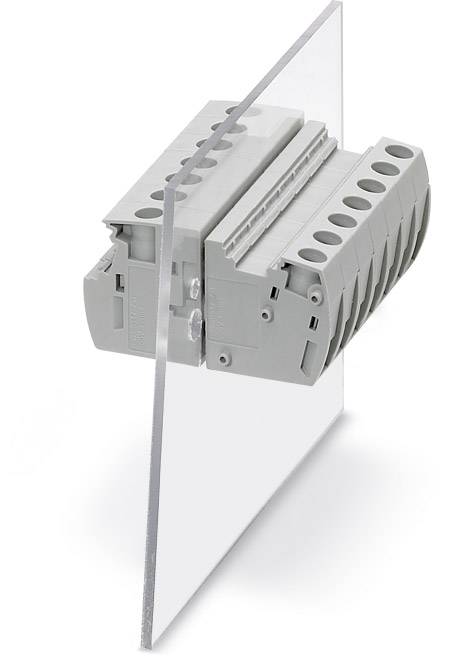

A grey electrical connection block, mounted on a transparent plate. Ideal for illustrating electronic installations.
Image similar
Packaging type
Piece
Product type
Feedthrough terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 3 Nov
384 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 2.90 / piece)
€ 144.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block UW 4/S

  • UW 4/S

Technical specifications

Packaging type

Piece

Product type

Feedthrough terminal

Features

with screw connection

Connection

Screws

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

24

AWG max.

12

Clamp width

8.1 mm

No. of rows

1

Number of pins

2

Factory colour

Grey

Nominal current

32 A

Nominal current - rounded value

32 A

Nominal voltage

500 V

Stripping length (max.)

9 mm

Manufacturer part #

3073319

Content

50 pc(s)

Industrial packaging

Yes

Type

UW 4/S

Width

8.1 mm

Flammability rating

V0

Connector colour

Grey

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 719962 Feed-through terminal block UW 4/S 3073319 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 719962 Feed-through terminal block UW 4/S 3073319 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Load current : 41 A, Cross section: 0.2 mm² - 6 mm², AWG 24 - 12, Connection direction of the conductor to plug-in direction: 0 °, Width: 8.1 mm, Color: gray
