Name: FESTO 536280 ADN-32-15-I-P-A Compact cylinder Stroke length: 15 mm 1 pc(s)
Brand: FESTO
SKU: 1939558
Availability: BackOrder

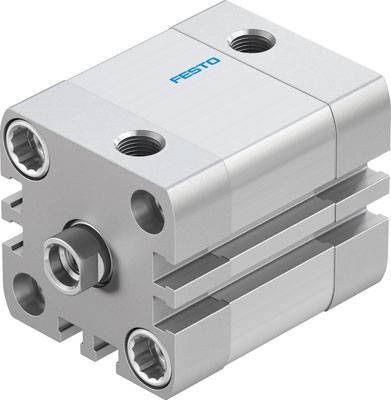

A silver pneumatic cylinder with multiple ports, suitable for industrial applications, shown in an angled view.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADN-32-15-I-P-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 15 mm

Max. operating pressure: 10 bar

Manufacturer part #: 536280

Type: Compact cylinder ADN -32-15-I-P-A in accordance with ISO 21287, for position detection, with internal thread on the piston rod. Hub = 15 mm, piston diameter = 32 mm, Piston Rod Thread = M8, dampening = P: elastic damping rings/plates on both sides, mounting position=any

Size: 32

Sealant: TPE-U

Pneumatics connector: G1/8"

Piston rod material: Steel (stainless)

Piston rod diameter: 32 mm

Force (max.): 483 N

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: not relevant
