Name: FESTO 572659 ADN-32-30-A-PPS-A Compact cylinder Stroke length: 30 mm 1 pc(s)
Brand: FESTO
SKU: 1939769
Availability: BackOrder

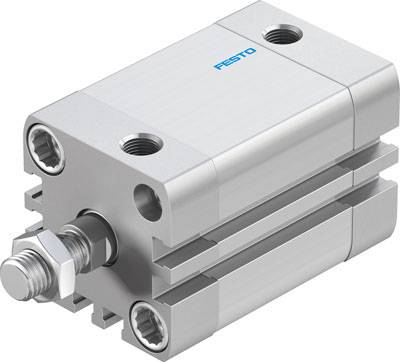

A silver pneumatic cylinder with multiple ports and a bolt.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADN-32-30-A-PPS-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 30 mm

Max. operating pressure: 10 bar

Manufacturer part #: 572659

Type: Compact cylinder ADN -32-30-A-PPS-A self-adjusting pneumatic end position damping. Hub = 30 mm, piston diameter = 32 mm, Piston Rod Thread = M10 x 1.25, dampening = PPS: Self-adjusting pneumatic end position damping, mounting position=any

Size: 32

Operating medium: Compressed air

Sealant: TPE-U

Pneumatics connector: G1/8"

Piston rod material: Steel (stainless)

Piston rod diameter: 32 mm

Force (max.): 483 N

Material: Aluminium

Standard: ISO 21287

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

Operating principle: Double-acting

UKCA: not relevant
