Name: Finder 38.61.3.240.0060 Crossbar switch 230 V AC 6 A 1 change-over 1 pc(s)
Brand: Finder
SKU: 3323572
Availability: InStock

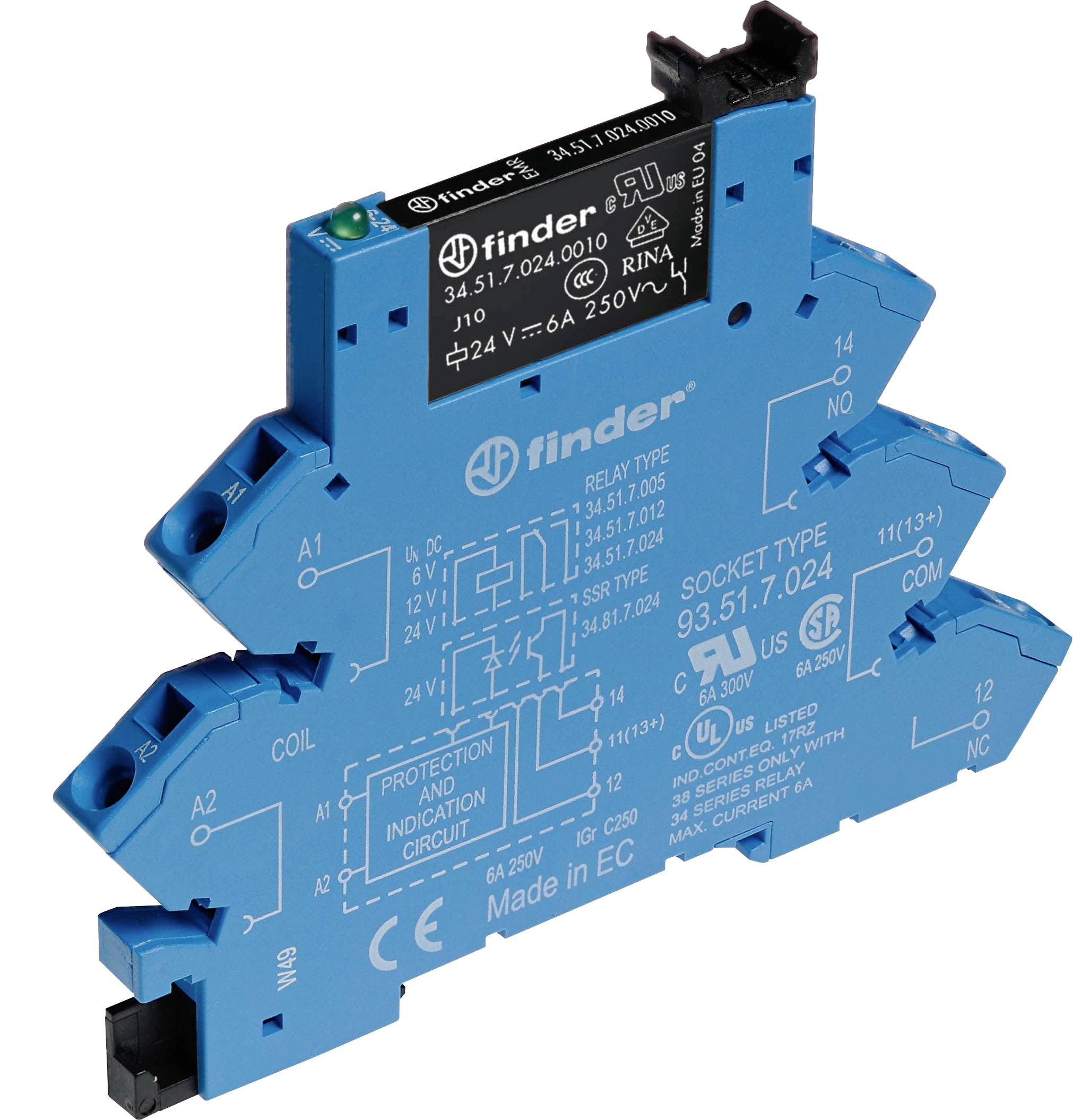

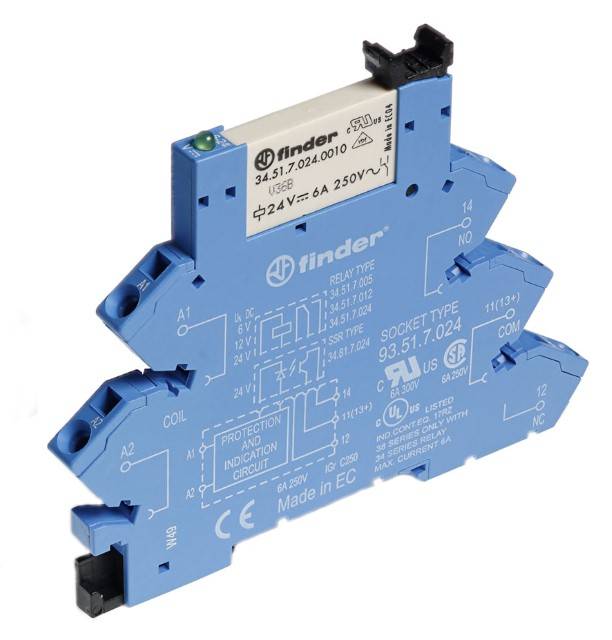

A blue Finder relay socket module for DIN rail mounting, Model 34.51, with electrical connection terminals and technical specifications.

Image similar

Product type

Crossbar switch

Contact type

1 change-over

Nominal voltage

230 V AC

Switching voltage (max.)

250 V AC

Switching current (max.)

6 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 33.99 / piece)

€ 33.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

With removable terminals: No.
Drive, polarity: Non-polar
Switching characteristics of drive: Mono-stable
With positively driven contacts: No.
Type of switch contact: Single contact
Complete unit with socket: Yes

Product type: Crossbar switch

Type: 38.61.3.240.0060

Connection: Spring-loaded connector

Max. pick-up voltage: 240 V AC

Contact type: 1 change-over

Contact material: AgNi

Nominal voltage: 230 V AC

Switching voltage (max.): 250 V AC

Switching current (max.): 6 A

Features: + LED

: IP20

Depth: 76 mm

Width: 6.2 mm

Height: 93.6 mm

Dim: (W x H x D) 6.2 x 93.6 x 76 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 6 A

: 6.2

: 75.6 mm

: 93 mm

: 10 A

: FALSE

: Polarity free

: Mono stable

: FALSE

: Single contact

: TRUE

: Spring clamp connection

: 230-240 V

: 230-240 V

: AC

: IP20

: TRUE

: 184-264 V

: 184-264 V

: AC

: 0

: 0

: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3323572 Finder 38.61.3.240.0060 Crossbar switch 230 V AC 6 A 1 change-over 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3323572 Finder 38.61.3.240.0060 Crossbar switch 230 V AC 6 A 1 change-over 1 pc(s)

Description

Coupling relays for DIN rail with tension spring terminals 1 Changer 6 A / 250 V AC Coil voltage 240 V AC, contact material AgNi, LED, residual current suppression and EMC interference suppression are integrated in the socket

This text is machine translated.
