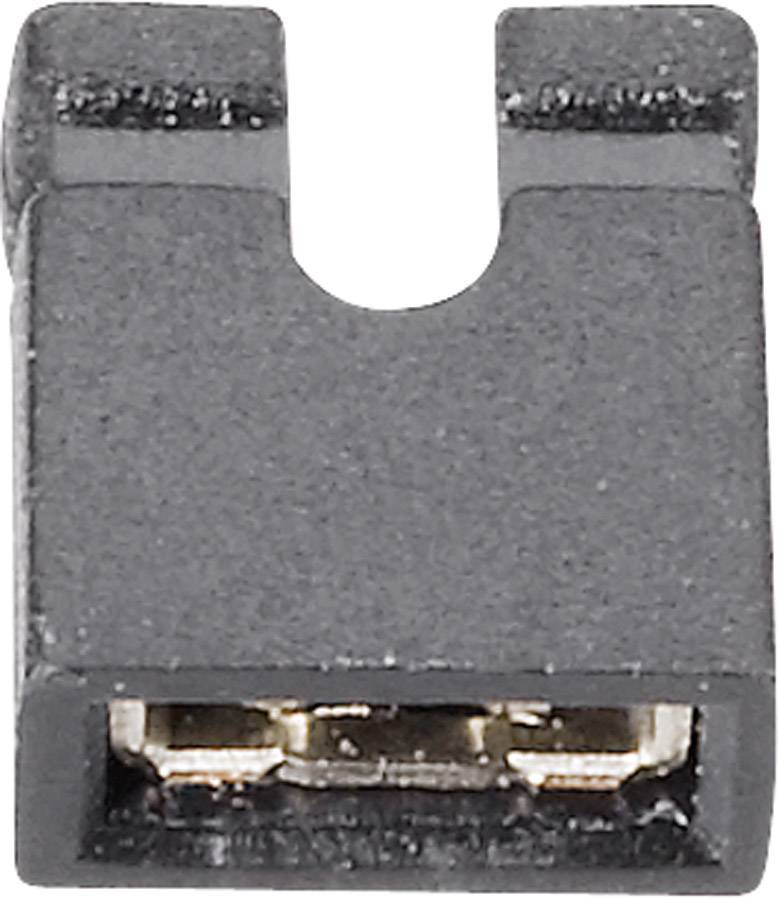

A black jumper plug for connecting two pins on a circuit; used for configuring hardware settings.

A black jumper plug for connecting two pins on a circuit; used for configuring hardware settings.

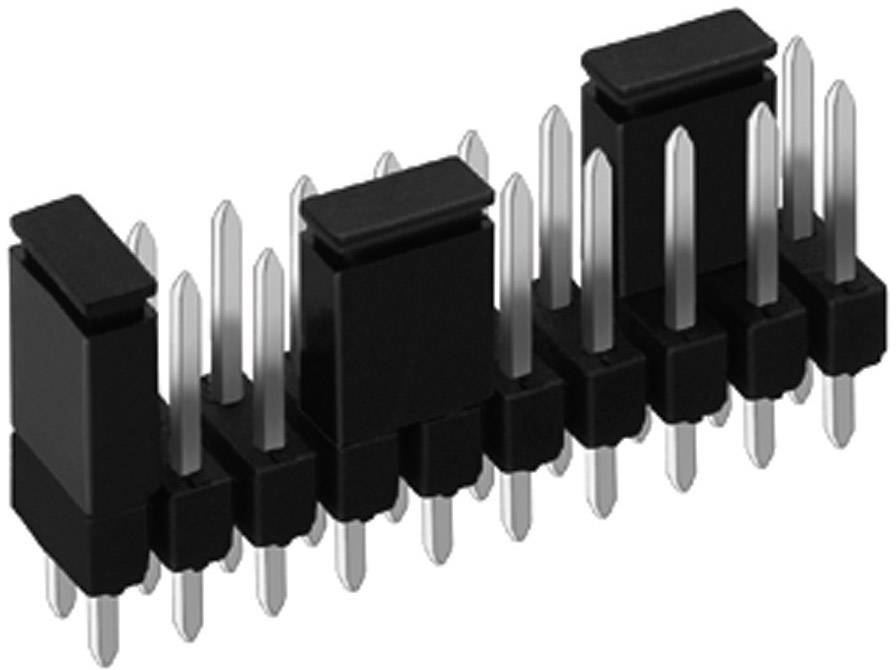

A black and silver connector with two rows of metal pins is used to connect electronic components.

Technical Drawing of Two Shapes with Dimensions: left shape shows height of 4.5 and width of 2.2; right shape shows width of 4.

1/3

Fischer Elektronik

Product type

Shorting jumper

CS

2 mm

Features

open

Pins

2

Dim

(L x W x H) 2.2 x 4.5 x 4 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.48 / piece)

€ 4.80

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer Elektronik CAB 11 G S Pins: 2

Content 1 pc(s)

Our service for you

Technical specifications

Product type: Shorting jumper

Features: open

Pins: 2

CS: 2 mm

Dim: (L x W x H) 2.2 x 4.5 x 4 mm

Manufacturer part #: CAB 11 G S

Factory colour: Black

Content: 1 pc(s)

Insulation material: PBT

Contact material: Copper alloy

Contact surface: Gold plated

Nominal voltage: 150 V DC

Nominal current: 1.5 A

Pins per row: 2

Width: 4.5 mm

Height: 4 mm

Length: 2.2 mm

RoHS-compliant: Yes

Type: CAB 11 G S

Documents & Downloads

Datasheet

Datasheet 736371 Fischer Elektronik CAB 11 G S Pins: 2

User & Safety Instructions

User & Safety Instructions 736371 Fischer Elektronik CAB 11 G S Pins: 2
