Name: FLIR E86 Dual FOV 24° - 42° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™
Brand: FLIR
SKU: 3533054
Availability: BackOrder

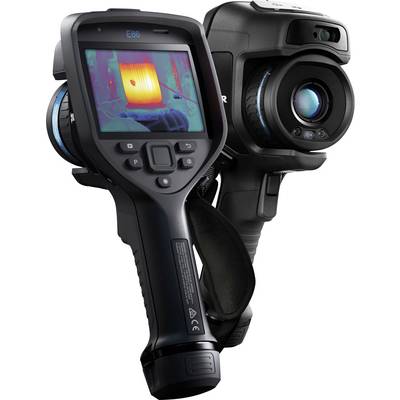

Two handheld thermal cameras; front view displays a heat signature on the screen, emphasizing temperature variations.

A handheld thermal imaging camera showing a heat map on its display.

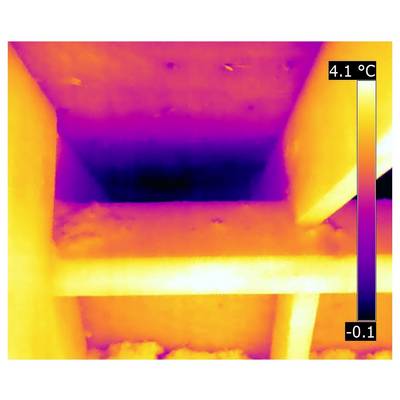

The image shows an infrared thermal view of an attic hatch. It highlights temperature variations with a scale from -0.1 to 4.1 degrees Celsius.

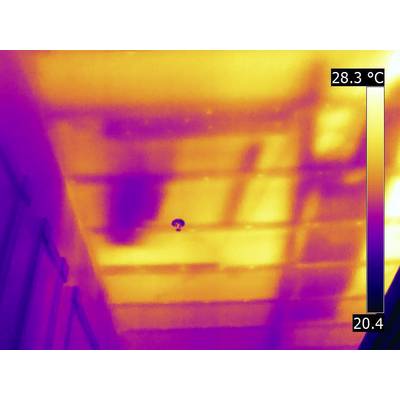

'Thermal image of a ceiling with temperature scale on the right, showing temperatures from 20.4°C to 28.3°C.'

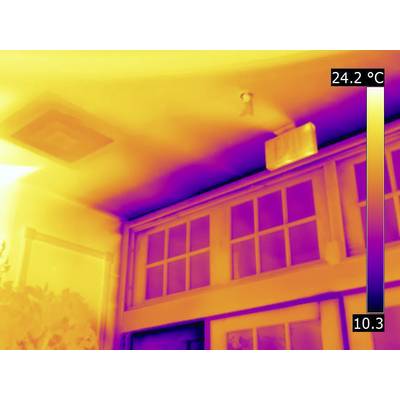

Thermal image of a door and ceiling shows temperature variations ranging from 10.3°C to 24.2°C, with a visible exit sign.

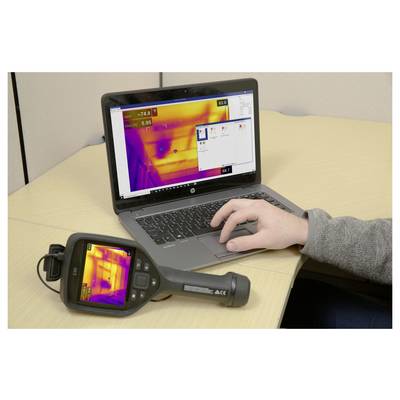

A hand operates a laptop displaying thermal imaging software. Beside it, a thermal camera shows a heat map, reflecting the screen's view.

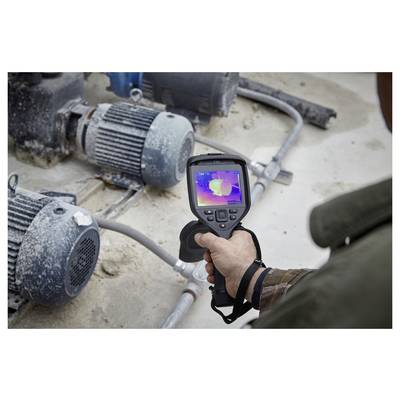

A person holds a thermal imaging camera aimed at machinery, displaying a heat map to check temperatures, indicating potential overheating.

A person using a thermal camera to inspect a room with patterned curtains, likely checking for heat loss or insulation issues.

A person stands on a ladder using a thermal imaging device to inspect a ceiling. The room is well-lit, with detailed ceiling patterns.

A person in a blue shirt holds a thermal imaging camera indoors, focusing carefully on the screen.

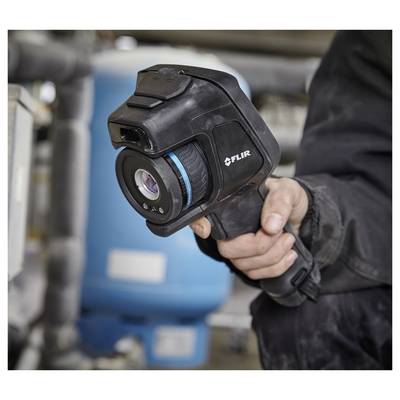

'A person holding a FLIR thermal imaging camera, used for detecting heat variations in industrial settings. Blue machinery in the background.'

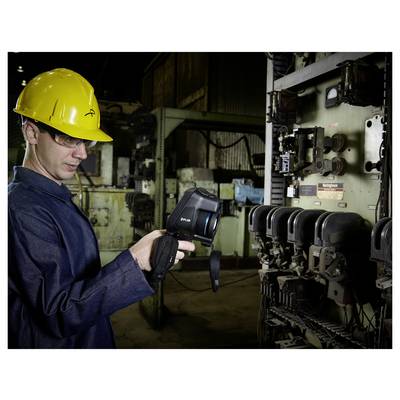

A technician wearing a yellow hard hat uses a thermal imaging camera to inspect electrical panels in an industrial setting.

1/12

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 14,415.00 / piece)

€ 14,415.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FLIR E86 with DFOV (24° - 42°) lens, 464x348, -20°C to +1500°C.

30 Hz Thermal imaging camera
Temperature reading range -20 up to 1500 °C
464 x 348 Pixel Bolometer matrix
Thermal sensitivity 40 mK

Technical specifications

Time lapse (infrared): 10 seconds to 24 hours
Class 2 laser
Fall height: Designed for 2 m drop height

Type: E86 Dual FOV 24° - 42°

Product type: IR camera

Bolometer array: 464 x 348 Pixel

Interfaces: Bluetooth
Wi-Fi
USB A (USB 2.0)
DisplayPort

Temperature reading range (max.): 1500 °C

Colour schemes: 6

Temperature reading range (min.): -20 °C

Optics: 24° × 18° and 42° x 32° (DFOV)

Frame rate: 30 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 40 mK

Dim: (L x W x H) 27.8 x 11.6 x 11.3 cm

Memory units: 1

Digital zoom: 4 x

Display: 640 x 480 p

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Automatic
Manual

Geometric resolution (IFOV): 0.90 mrad

Weight: 1 kg

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Calibration service: AutoCal™ interchangeable lenses, automatic calibration

Temperature reading range: -20 up to 1500 °C

Min. focusing distance: 0.15 m

Width: 11.6 cm

Height: 11.3 cm

Length: 27.8 cm

Connection: Bluetooth
USB 2.0

Features: Wi-Fi
Touchscreen
MSX®
MeterLink™

: Manufacturer's standards (no certificate)

Variants(All information include VAT, plus shipping costs)

Bolometer array

Interfaces

Temperature reading range (max.)

Thermal sensitivity

Display resolution

Temperature reading range (min.)

FLIR E86 Dual FOV 24° - 42° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Item no:3533054

Available soon

Conrad Electronic

This article

464 x 348 Pixel

Bluetooth

1500 °C

40 mK

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,415.00^*

FLIR E76 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533035

Fast track dispatch on Wed 4 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

USB

650 °C

50 mK

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 24° + 14° & 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533037

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

40 mK

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,229.00^*

FLIR E76 24° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533036

Fast track dispatch on Wed 4 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

USB

650 °C

40 mK

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533038

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

40 mK

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533040

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

30 mK

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533039

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

50 mK

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 Dual FOV (24° - 42°) & 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Item no:3533056

Available soon

Conrad Electronic

320 x 240 Pixel

USB

650 °C

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13,855.00^*

FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

Item no:3533055

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

640 x 480 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,959.00^*

FLIR E76 IR camera 0 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi

Item no:2305183

Fast track dispatch on Wed 4 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

50 mK

320 x 240 Pixel

0 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

Documents & Downloads

Datasheet

Datasheet 3533054 FLIR E86 Dual FOV 24° - 42° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

User & Safety Instructions

User & Safety Instructions 3533054 FLIR E86 Dual FOV 24° - 42° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Description

The FLIR E86 offers numerous powerful functions for fast and accurate detection. When combined with a FLIR FlexView™ dual-field lens, you can instantly switch from wide angle to telescan. This infrared camera with a resolution of 464 × 348 pixels has an extended temperature measurement range for easier detection of hot spots and hidden anomalies in electrical and mechanical plants. AutoCal™ interchangeable lenses provide full coverage of near and distant targets, and FLIR imaging technologies such as UltraMax® and MSX® deliver crisp, high-color thermal images. With the integrated FLIR inspection route software, you can travel along pre-defined routes so that you can proceed with planning even at larger locations or when reviewing several areas. FLIR Ignite enables the automatic uploading of E86 images directly from the camera to the cloud, in order to store and share them easily and securely.

Laser distance measurement
The laser distance meter enables a fast and precise auto-focus and provides data for the in-picture area calculation (m² or ft²).

One lens, two fields of view
Pair your Exx Series camera with a dual-field FLIR FlexView lens so you can easily switch from wide angle to telescan at the touch of a button.

Streamlined reporting
With the integrated FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in microphone for recording voice comments and reporting functions, the E86 makes it easier, faster and more efficient to work. (*Optional add-on software)

This text is machine translated.

Features

464 × 348 pixels
Accuracy ±2 °C (±3.6 °F) or ±2% of the measured values
5 MP digital camera with integrated LED photo/video lamp
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Storage media: Removable SD-card
Frame rate: 30 Hz
Picture-in-picture: Adjustable size and position
Focal length: 42°: 10 mm (0.39 inches); 24°: 17 mm (0.67 inches)
Detector type and grid: Uncooled microbolometer, 12 µm
5 MP digital camera with integrated LED photo/video lamp
Digital zoom 1 to 8 times continuously
Colour palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, lava
Focus: Continuous laser distance meter (LDM), one-point laser distance meter (LDM), one-point contrast, manual
Minimum Focus Distance: 42°: 0.25 m (1.98 ft) 24°: 0.5 m (1.64 ft)
Minimum Focus Distance with MSX: 42°: 0.65 m (1.98 ft);24°: 0.5 m (1.64 ft)
Non-radiometric IR video streaming: H.264 or MPEG-4 via WLAN MJPEG via UVC or WLAN
Lens recognition: Automatic
Radiometric IR video recording: Real-time radiometric recording (.CSQ)
Radiometric IR video streaming: Yes, via UVC
Spatial resolution (IFOV): 42°: 1.2 mrad/Pixel; 24: 0.67 mrad/Pixel
Field of view 42° × 32°, 24° × 18°
Spectral range: 7,5-14 µm
Viewfinder: No.
Thermal sensitivity / NETD: Less than 40 mK, 42° at 30 °C (86 °F); less than 40 mK, 24° at 30 °C (86 °F)

Scope of delivery

Infrared camera with lens
2 rechargeable batteries
Battery charger
Hard shell carrying case
Case Carrying Systems
Front lens cover
Power supplies 15 W/3 A
Printed documents
SD memory card (8 GB)
Cable (USB 2.0 A to USB Type C, USB Type C to HDMI, USB Type C to USB Type C)
License card: FLIR thermal studio starter
