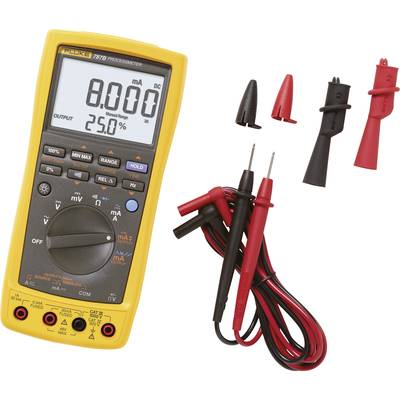

Fluke 787B Handheld multimeter Digital Current draw reading CAT III 1000 V, CAT IV 600 V Display (counts): 30000
EAN:
Part number:
Item no:
Number
Total (€ 1,612.61 / piece)
€ 1,612.61
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Fluke 787 B ProcessMeter™
- TRMS multimeter
- Loop calibrator
- Fluke Connect®-compatible
Technical specifications
- Current source: 0 - 20 mA/4 - 20 mA
- Max. load 500 Ω
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.001 mA
- A DC reading range (max.)
1 A
- A AC reading range (min.)
0.001 A
- Amperage reading range AC (max.)
1 A
- Reading range - resistance
0.1 Ω - 40 MΩ MΩ
- Frequency reading range
0.5 Hz - 20 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.05 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz - 2 kHz
- Interfaces
IR
- Power supply (details)
4 x AA battery
- Height
203 mm
- Width
100 mm
- Length
50 mm
- Weight
600 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
787B
- Display
Digital
- Display (counts)
30000
- Dim
(L x W x H) 50 x 100 x 203 mm
- Features
Current draw reading
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1592231 Fluke 787B Handheld multimeter Digital Current draw reading CAT III 1000 V, CAT IV 600 V Display (counts): 30000
Conformity certificate
Conformity certificate 1592231 Fluke 787B Handheld multimeter Digital Current draw reading CAT III 1000 V, CAT IV 600 V Display (counts): 30000
Description
The Fluke 787 ProcessMeter™ B extends your possibilities of troubleshooting, because this compact measuring device the performance of a digital multimeter with highest safety and a current loop calibrator combined. Building on the measuring functions of the robust digital multimeter Fluke 87 You have now with the 787 B also have the option of mA to measure, to give and simulate-and with accuracy and resolution, as you would expect from a current loop calibrator from Fluke. In short: the ideal measuring device for measurements and calibrations in current loop applications. With the Fluke Connect® App, technicians optional data directly from the place of wireless monitor, Record and share with your team, anytime, anywhere. An optional interface module is available.
This text is machine translated.
This text is machine translated.
Features
- Enter/Measure/simulate 20 mA DC current
- Simultaneous display of the value in mA and % of measuring range
- Digital multimeter with certified safety according to IEC 61010, measuring categories CAT III 1000 V and CAT IV 600 V
- Compatibility with Fluke Connect® for a wireless data transmission and recording (with optional module IR 3000 FC)
- High-quality digital multimeter (1000 V, 440 mA)
- Frequency measurement up to 20 kHz
- Operating modes Min./Max./Average/Hold/Relative value
- Diode tester and continuity beeper
- Manual setting feature (100 %, 25 %, coarse, fine) as well as automatic step and ramp functions
- From the outside accessible battery compartment for easy battery replacement.
Scope of delivery
- Premium TL71 test lead set
- Alligator clips AC72
- Four AA alkaline batteries (installed)
- Quick guide
Hints
Fluke Connect® interface module IR 3000 FC is not included.
