Name: Fluke FLK-A3003FC Clamp meter Digital Data logger CAT III 1000 V, CAT IV 600 V
Brand: Fluke
SKU: 1380387
Availability: BackOrder

Highlights & Details

FLK-A3003FC

Measurement of up to 2000 A direct current.
Detachable clamp-on ammeter with extension cable for measurement in narrow spaces.
Can be used as a stand-alone device or part of a system.
Logging function for recording and storage of up to 65,000 measured values
Large jaw opening (64 mm) for measuring large heavy current conductor
Use the protocol function for recording and storage of up to 65,000 measurements
The Fluke a 3003 FC transmits wirelessly to the following measured values, with Fluke Connect® compatible master units:
Digital multimeter Fluke 3000 FC
Infrared cameras Fluke Ti 200/300/400
PC with optional adapter pc 3000 FC
Mobile Fluke Connect app
Infrared cameras TiX 560 and TiX 520

Technical specifications

IP 54

Product type: Clamp meter

Amperage reading range DC (min.): 1.0 A

A DC reading range (max.): 2000 A

Basic accuracy: 0.2 %

Interfaces: Bluetooth®

Power supply (details): 2 AA batteries

Height: 165 mm

Width: 63.5 mm

Weight: 299 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Current reading: DC

Type: FLK-A3003FC

Display: Digital

Dim: (W x H) 63.5 mm x 165 mm

Features: Data logger

Opening range of current clamps: 64 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1380387 Fluke FLK-A3003FC Clamp meter Digital Data logger CAT III 1000 V, CAT IV 600 V

Description

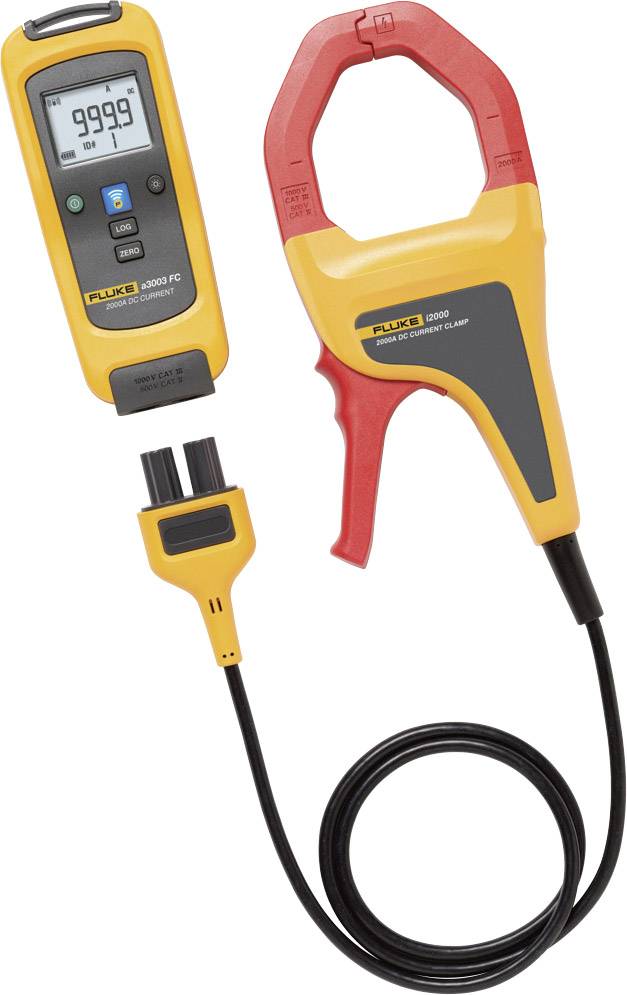

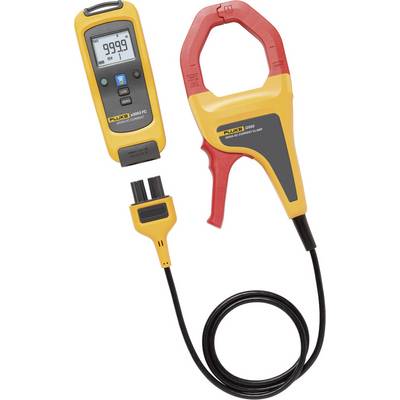

All facts are always at hand. The A3003 FC is a clamp-on ammeter for measuring large direct currents. It enables you to record and logging of measurement data over time as well as the sharing of the measured data with the Fluke Connect™-app and the video call function share live™. With Fluke Connect-enabled wireless measuring devices, you can in awkward and dangerous places, without itself the danger. The process is very simple. Close the current measuring clamp a 3003 FC or one of the other wireless measurement modules from the Fluke Connect family to the measuring points and read the results from a safe distance on the Fluke Connect a multimeter or a PC.
In addition, the Fluke Connect-measuring devices even measured data to send your smartphone, so that you can save and on-site measurements at any time and anywhere with your team can share.

This text is machine translated.

Scope of delivery

Fluke a 3003 FC, direct current module, batteries, carrying strap, magnet and quick start overview.

Description

All facts are always at hand. The A3003 FC is a clamp-on ammeter for measuring large direct currents. It enables you to record and logging of measurement data over time as well as the sharing of the measured data with the Fluke Connect™-app and the video call function share live™. With Fluke Connect-enabled wireless measuring devices, you can in awkward and dangerous places, without itself the danger. The process is very simple. Close the current measuring clamp a 3003 FC or one of the other wireless measurement modules from the Fluke Connect family to the measuring points and read the results from a safe distance on the Fluke Connect a multimeter or a PC.
In addition, the Fluke Connect-measuring devices even measured data to send your smartphone, so that you can save and on-site measurements at any time and anywhere with your team can share.

This text is machine translated.
