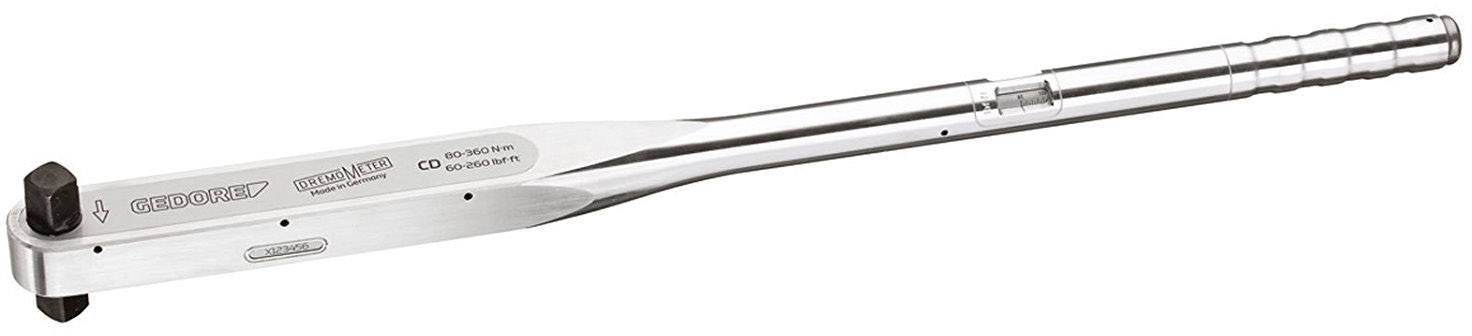

Name: Gedore 8575-10 7688710 Torque wrench 3/4" (20 mm) 80 - 360 Nm
Brand: Gedore
SKU: 1908589
Availability: BackOrder

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

6 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 895.00 / piece)

€ 895.00

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Technical specifications

8575-10 - GEDORE - Torque wrench DREMOMETER CDL 3/4" 80-360 Nm
Application:
Controlled screw suit in the range of 80 - 360 N
m / 60 - 260 lbf
ft
Application in almost all industrial production areas
Design:
Classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is exceeded for your safety
3/4" square drive with pin protection DIN 3120 - B 20, ISO 1174
automatic short-travel release with sensitive and audible signal
double scale with a division of 5 N
m and 5 lbf
ft
Technical advantage/function:
Light, but robust (since housing made of one piece of aluminum) and insensitive, very workshop-friendly
no value shifts and influence of the accuracy by working both-handed or operating outside the grip (as with conventional torque wrenches).
Both the drive square as a pivot point are in an axis thus highly reliable for use, Can be extended to reduce the work load of the user
extremely low wear by reducing the force of the lever mechanism
forged lever chain from the company's own quality forge
highest precision even with strong continuous use
long life and long service life
simple operation - fast and safe torque tightening
pleasant setting through shapely, Captive adjustment button at the end of the grip
single and double square for controlled right or left suit

Documents & Downloads

User & Safety Instructions 1908589 Gedore 8575-10 7688710 Torque wrench 3/4" (20 mm) 80 - 360 Nm

Information 1908589 Gedore 8575-10 7688710 Torque wrench 3/4" (20 mm) 80 - 360 Nm

Use:
Controlled screw tightening in the range 80-360 N
m / 60-260 lbf
ft
For use in almost all industrial manufacturing areas Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
3/4" square drive with pin-locking mechanism as per DIN 3120 - B 20, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 5 N
m and 5 lbf
ft
Technical advantage/Function:
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Single- and double-square drive for controlled bi-directional tightening

Use:
Controlled screw tightening in the range 80-360 N
m / 60-260 lbf
ft
For use in almost all industrial manufacturing areas Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
3/4" square drive with pin-locking mechanism as per DIN 3120 - B 20, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 5 N
m and 5 lbf
ft
Technical advantage/Function:
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Single- and double-square drive for controlled bi-directional tightening
