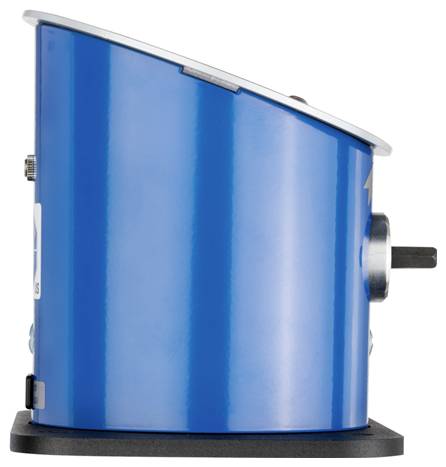

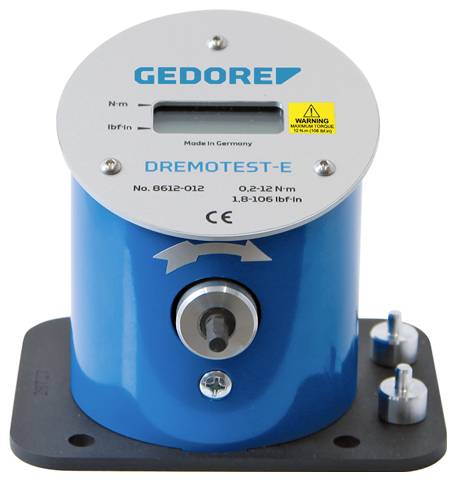

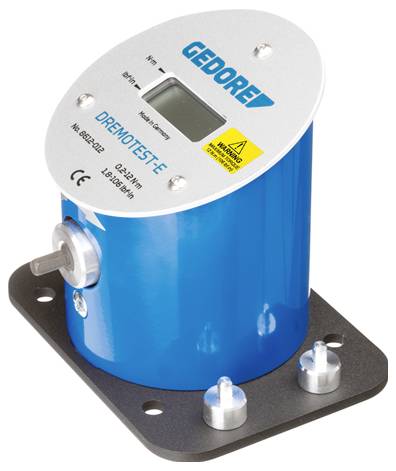

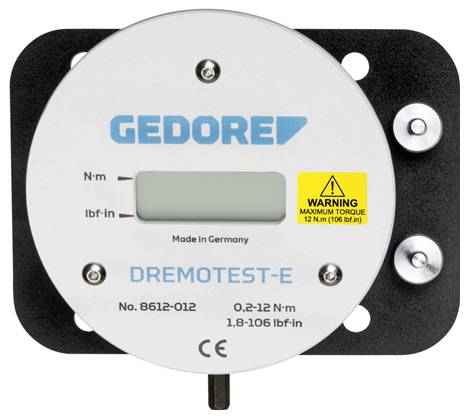

Name: Gedore 8612-012 2288311 Tester
Brand: Gedore
SKU: 1908611
Availability: InStock

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

5 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 1,185.00 / piece)

€ 1,185.00

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Technical specifications

For checking or setting right-hand torque wrenches and torque screwdrivers, ideal for checking fixed torque wrenches on the line
Easy to use, electronic test device with integrated torsion measuring transducer (DMS)
With 1/4" hex socket, SW 10, 17, 36 mm or square socket 1.1/2" (depending on model)
With 1/4", 3/8", 1/2", 3/4", 1" square adapter or bit adapter 1/4" or 3/8" (depending on model)
High measuring accuracy: +/- 1 % tolerance for all readings, +/- 1 digit
1. Peak detection (first peak / spot detection)
Auto reset
Can be switched between N
m, lbf
ft and lbf
in
Serial interface RS232 for PC
Optionally available: Car adapter for power supply with 12 Volt (No. 8612-390), plausibility check software (code 2834391)
Delivery scope
Electronic test device
RS232 cable
Power supply with Euro-plug (UK, US, OFF-adapter on request)
100 - 240 V, 50 - 60 Hz, max. 500 mA (observe rating plate)
2 socket wrench inserts (size and drive depending on model)
Adapter for No. 8612-3150
User manual
Shipping packaging

Documents & Downloads

User & Safety Instructions 1908611 Gedore 8612-012 2288311 Tester

Information 1908611 Gedore 8612-012 2288311 Tester

Conformity certificate 1908611 Gedore 8612-012 2288311 Tester

For verifying and setting clockwise torque wrenches and torque screwdrivers
Easy to operate, electronic torque tester with integrated torque transducer (DMS)
5 models in the range from 0.2 to 3150 N
m
With fixed hexagon female drive 1/4", 10, 17, 36, 46 mm or 1.1/2" square drive adaptor (model dependent)
With 1/4", 3/8", 1/2", 3/4", 1" square drive adaptor or bit adaptor (model dependent)
High measurement accuracy: +/- 1 % tolerance of reading, +/- 1 digit
Break-Point-measurement (1st peak)
Autoreset
Can be switched from N
m to lbf
ft
Serial interface RS232
Optionally available: adaptor for cigarette lighter socket (12 V), no. 8612-390 Scope of delivery:
Electronic torque tester
RS232 cable
Power supply unit with EURO plug (UK, US, AUS-adaptor on request)
100 - 240 V, 50 - 60 Hz, max. 500 mA (see type plate)
2 sockets (size and drive model-dependent)
Adaptor for 8612-3150
Operating instructions
Packaging

For verifying and setting clockwise torque wrenches and torque screwdrivers
Easy to operate, electronic torque tester with integrated torque transducer (DMS)
5 models in the range from 0.2 to 3150 N
m
With fixed hexagon female drive 1/4", 10, 17, 36, 46 mm or 1.1/2" square drive adaptor (model dependent)
With 1/4", 3/8", 1/2", 3/4", 1" square drive adaptor or bit adaptor (model dependent)
High measurement accuracy: +/- 1 % tolerance of reading, +/- 1 digit
Break-Point-measurement (1st peak)
Autoreset
Can be switched from N
m to lbf
ft
Serial interface RS232
Optionally available: adaptor for cigarette lighter socket (12 V), no. 8612-390 Scope of delivery:
Electronic torque tester
RS232 cable
Power supply unit with EURO plug (UK, US, AUS-adaptor on request)
100 - 240 V, 50 - 60 Hz, max. 500 mA (see type plate)
2 sockets (size and drive model-dependent)
Adaptor for 8612-3150
Operating instructions
Packaging
