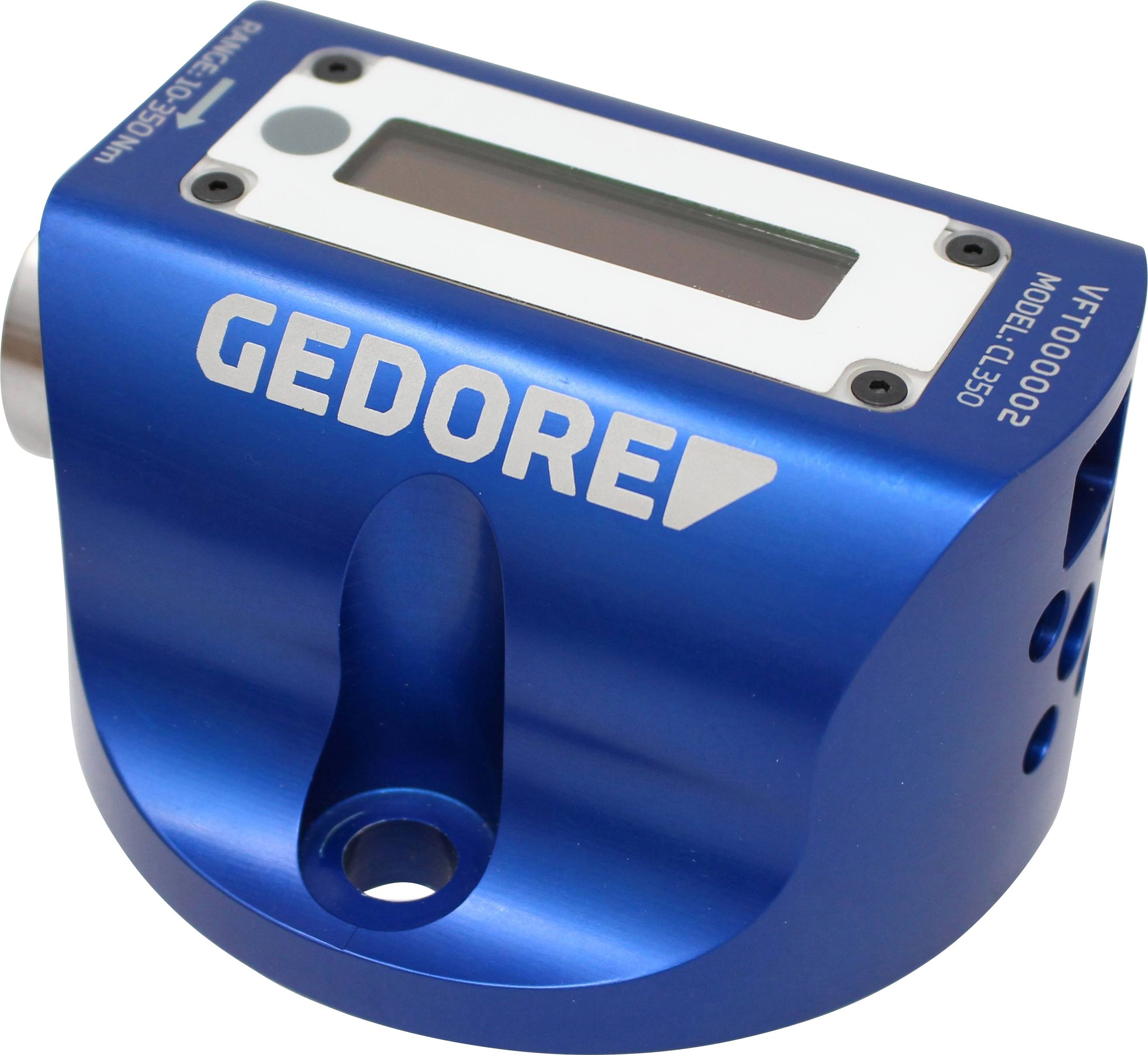

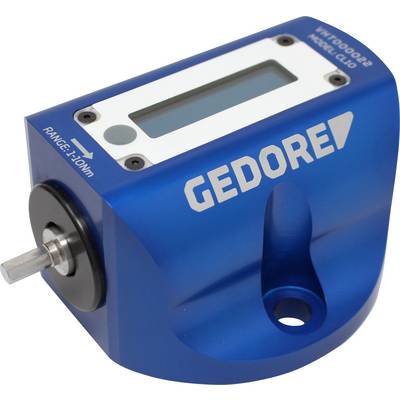

Gedore CL 1 3297888 Torque tester 1/4" (6.3 mm)
EAN:
Part number:
Item no:
Number
Total (€ 1,063.03 / piece)
€ 1,063.03
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Resolution: 0.0001
- Actuation direction: Right
- Material: Aluminum housing
- Interface: USB
- Product type
Torque tester
- Downforce
1/4" (6.3 mm)
- Torque (min.)
0.02 Nm
- Torque (max.)
1 Nm
- Trigger accuracy
0.01 %
- Length
135 mm
- Weight
1.32 kg
- Width
120 mm
- Height
70 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452018 Gedore CL 1 3297888 Torque tester 1/4" (6.3 mm)
Description
Digital torque tester for testing torque wrenches and torque screwdrivers
Lightweight and robust thanks to aluminum base housing
5 models in the range of 0.02 N.·m to 350 N.·m
With 1/4", 3/8", 1/2" square attachment (CL1 and CL10H with 1/4" hexagonal shaft)
Measurement tolerance +/- 1% for all readings
3 measurement modes: Floating value display (track), break point detection (first peak), peak value measurement
Simple handling by 1-button operation (measuring mode, unit)
Can be switched between N·m, lbf·ft and lbf·in (depending on model)
Easy to read thanks to one-line well-lit OLED display
Autostart function when inserting a torque tool
Auto sleep mode when not in use
Easy mounting on the table or on the wall
Power supply and data output via USB connection
Delivery scope
Capture Lite tester
USB connection cable
Adapter (depending on model)
User manual
Proof certificate
Sturdy plastic case with insert
