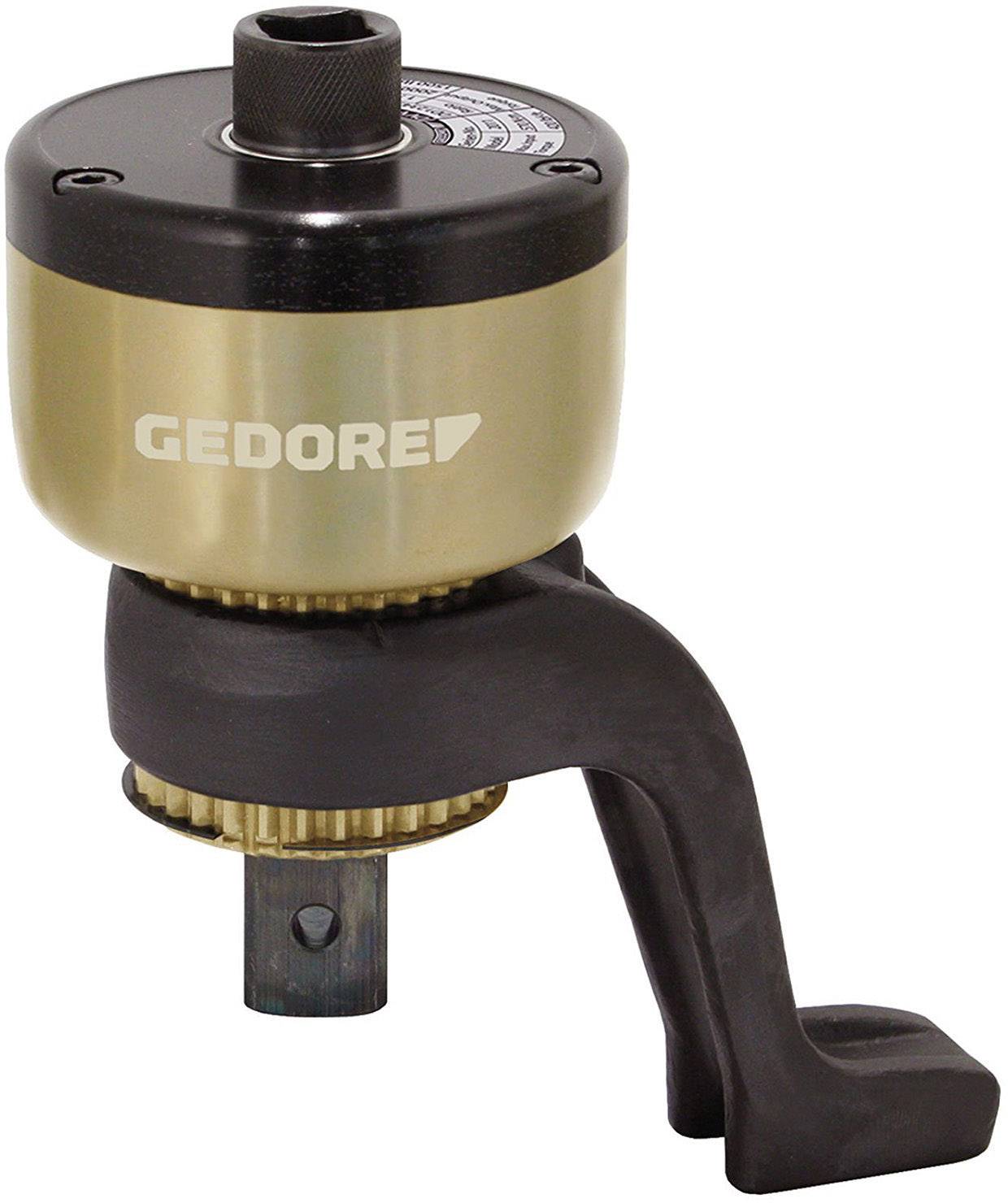

Gedore DVV-13Z 2653370 Torque multiplier Calibrated to (ISO standards) Square, solid, 20 mm (3/4")
EAN:
Part number:
Item no:
Number
Total (€ 1,150.42 / piece)
€ 1,150.42
plus VAT.
14 days return policy included
Technical specifications
- Particularly suitable for:
- Industry, construction sites, commercial and automotive workshops, agricultural technology
- bridge, ship, aircraft, railway, refineries
- machine and plant engineering, maintenance
- design:
- Mechanical, hand-operated torque multiplier for the controlled screw suit and for loosening screw connections
- with single-stage planetary gear
- Housing made of high-performance aluminum
- with offset reaction arm Z-shape made of chromium-vanadium steel
- Optional retrofit with straight reaction arm L-shape, with adjustable reaction square, made of light-alloy
- model
- with transmission ratio 1:5 guaranteed accuracy: Better than +/- 3 % tolerance
- to operate in conjunction with a torque wrench
- 1 model with maximum load in the range up to 1300 N
- m
- also available as a set (No. DVV-13ZG) with three different power screwdriver inserts SW 27, 30, 32 mm
- output four-edge with bore for power screwdriver inserts with locking pin and ring
- Scope of delivery:
- Torque multiplier DREMOPLUS ALU
- with offset reaction arm Z-shape
- Delivery in sturdy transport case with foam insert
- Factory test certificate and setting table
- Technical detailed information is available on request
- Product type
Torque multiplier
- Downforce
Square, solid, 20 mm (3/4")
- Torque (max.)
10000 Nm
- Trigger accuracy
3 %
- Length
230 mm
- Weight
1300 g
- Width
80 mm
ISO standards
- Drive
1/2"
- Handle length
450 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908775 Gedore DVV-13Z 2653370 Torque multiplier Calibrated to (ISO standards) Square, solid, 20 mm (3/4")
Information
Information 1908775 Gedore DVV-13Z 2653370 Torque multiplier Calibrated to (ISO standards) Square, solid, 20 mm (3/4")
Description
Features
- Particularly suitable for:
- Industry, construction sites, car and truck garages, agricultural technology
- Bridge, aircraft and railway construction, shipbuilding, refineries
- Machinery and plant engineering, maintenance Features:
- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a single-stage planet gear
- High-performance aluminium housing
- With Z-form offset reaction arm of chrome-vanadium steel
- Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
- Multiplication at the ratio of 1:5
- Guaranteed accuracy: Better than +/- 3 % tolerance
- For operation in combination with a torque wrench
- 1 model for a maximum load of around a max. 1300 N
- m
- Also available as set (No. DVV-13ZG) with three different impact sockets - sizes 27, 30, 32 mm
- Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:
- Torque Multiplier DREMOPLUS ALU
- With Z-form offset reaction arm
- Delivery in sturdy shipping case with foam insert
- Factory test certificate and setting table
- Detailed technical information is available on request
