Name: Glass fibre tester FBP-SD101 Viavi Solutions Networks
Brand: Viavi Solutions
SKU: 2840524
Availability: InStock

Lila Hand Tool with USB Connection, Suitable for Repairs or Technical Work.

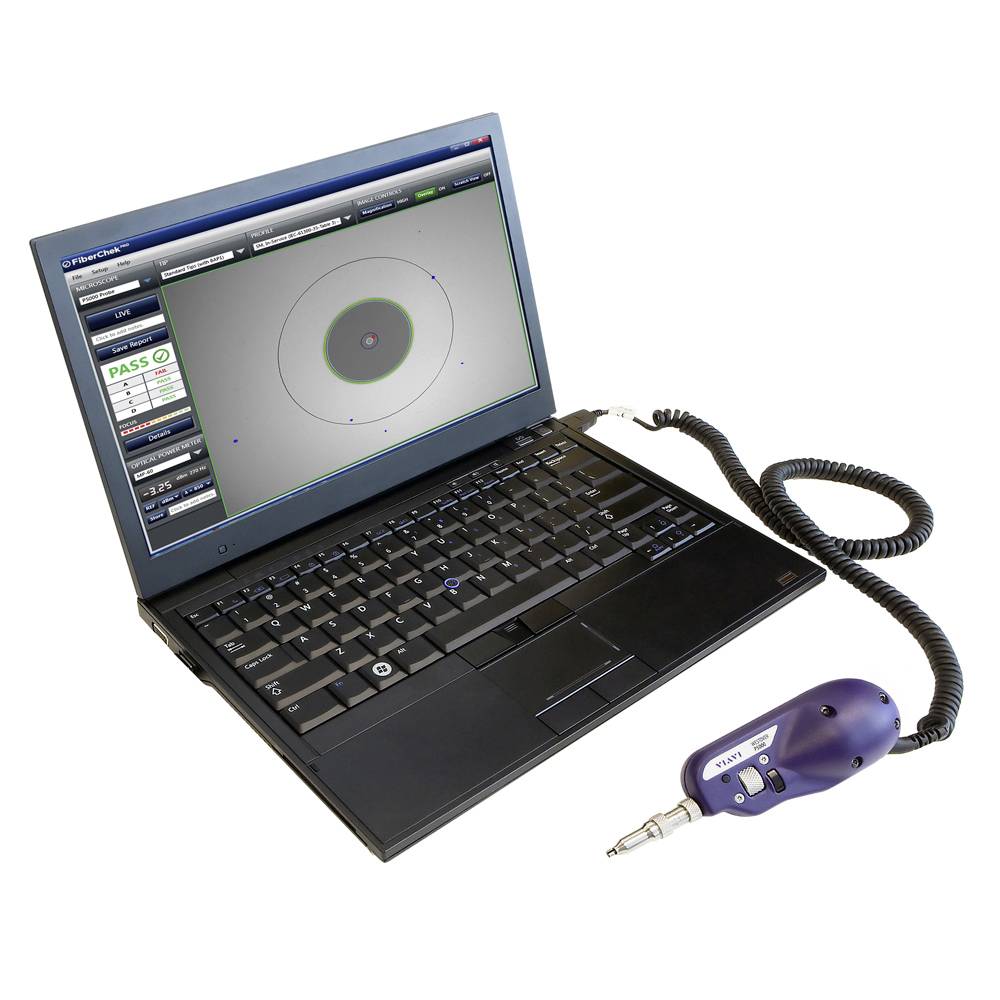

Laptop with an open screen displaying a circular graphic and 'PASS'. Device connected with a cable. Potential examination or testing equipment.

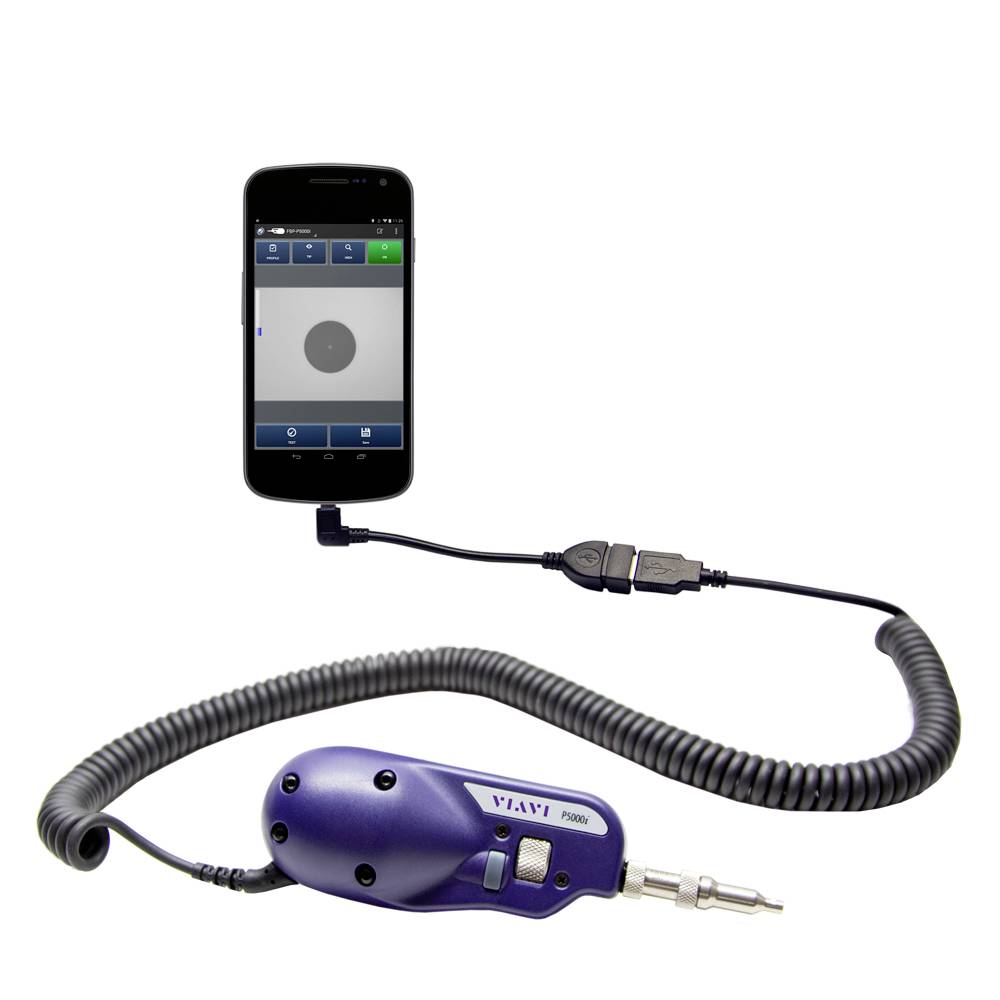

A portable inspection microscope with a coiled cable, connected to a smartphone for displaying images or videos.

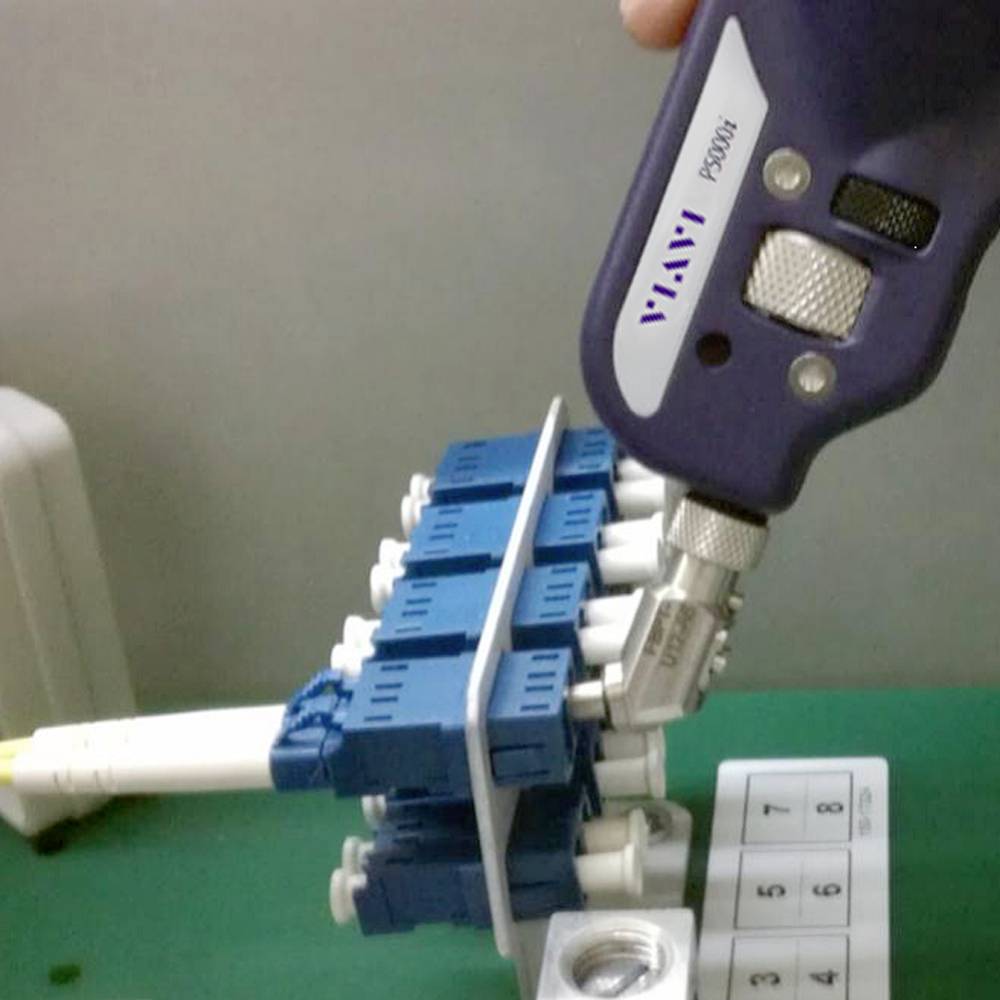

A purple handheld device is connected to a blue technical device, which is placed on a green table. Technical analysis.

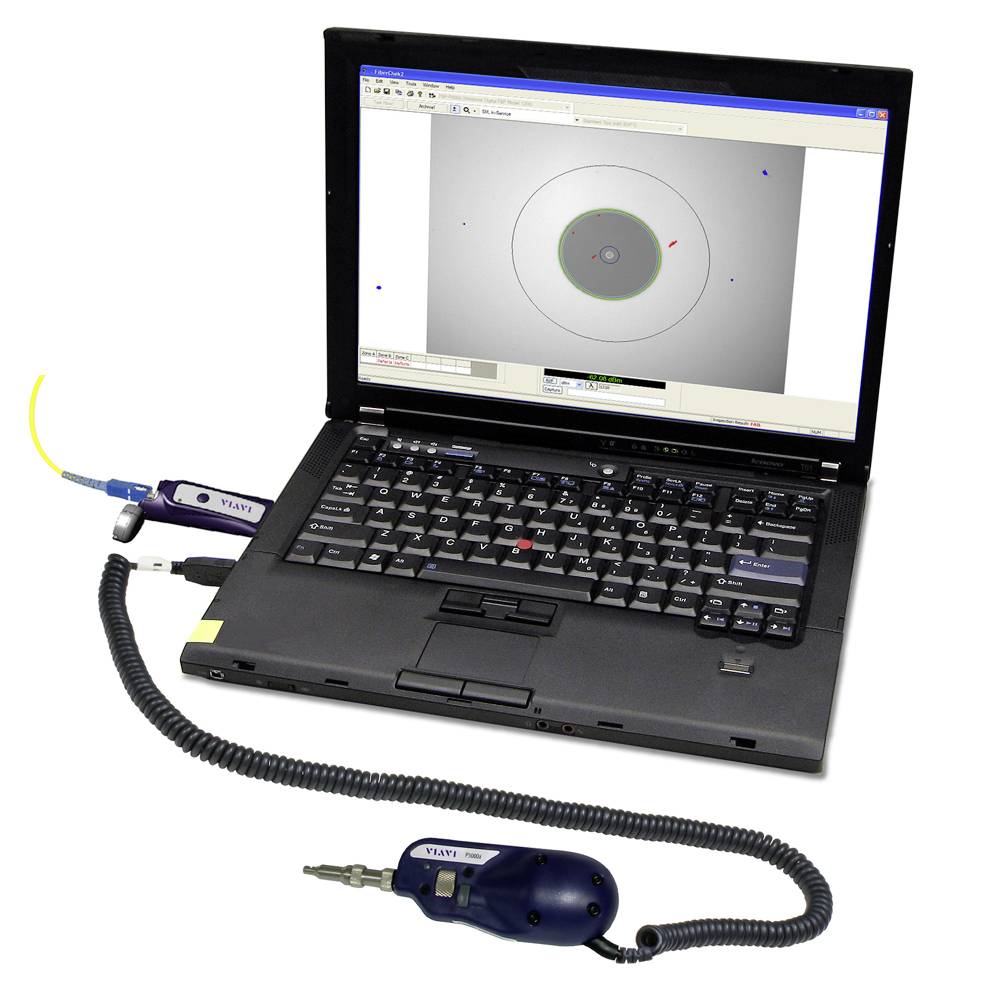

A laptop displays software for optical centring on the screen. Devices for measuring optical lenses are connected.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,195.00 / piece)

€ 2,195.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VIAVI fiber optic inspection kit P5000i probe included LC/PC and SC/PC tips

Technical specifications

Field of view at low magnification: Horizontal: 740 μm, vertical 550 μmField of view at strong magnification: Horizontal: 370 μm, vertical 275 μmLive image 640 x 480 pixelsConnection USB 2.0Camera sensor: 2560 x 1920, 1/2.5 inch CMOSLight source: Blue LEDLighting method: CoaxialPower supply USB-connection

Product type: Glass fibre tester

Max. cable length: 1.83 m

Optical display: Yes

Dim: (W x H x D) 140 x 46 x 44 mm

Weight: 110 g

Range: Networks

Features: Data export mode

Width: 140 mm

Height: 46 mm

Depth: 44 mm

Type: FBP-SD101

Documents & Downloads

Datasheet

Datasheet 2840524 Glass fibre tester FBP-SD101 Viavi Solutions Networks

User & Safety Instructions

User & Safety Instructions 2840524 Glass fibre tester FBP-SD101 Viavi Solutions Networks

Information

Information 2840524 Glass fibre tester FBP-SD101 Viavi Solutions Networks

Description

The VIAVI P5000i makes it easier and faster to prove that all network connections are properly and optimally established. This smart fiber microscope increases the reliability of fiber inspection. It provides safe and objective good/bad results to the fiber that your customers connect to your network and is easy to use. In addition, the P5000i fiber optics microscope allows good/bad fiber assessment in conjunction with numerous VIAVI test solutions that users are already relying on to test their networks.

This text is machine translated.

Features

Test and certify the quality of the fiber end surface at the touch of a button, making your technician a fiber specialistIntelligent fiber microscope to certify fiber performance and output results on an existing VIAVI test platformSecure assessment through fast, simple and objective checksHelps your technicians complete the installation the first time, promote best practices, improve work quality, and streamline workflowReliable connections and secure protection throughout the life of the fiber

Scope of delivery

1x VIAVI P5000i digital video microscope1x carry case for microscope and accessories1x carry case for probes1x test tip 2.5 mm/UPC1x test tip 1.25 mm/UPC1x test tip LC/UPC1x test tip SC/UPC1 x installation CD for FiberChekPRO software1x quick user manual

Description

Features

Test and certify the quality of the fiber end surface at the touch of a button, making your technician a fiber specialistIntelligent fiber microscope to certify fiber performance and output results on an existing VIAVI test platformSecure assessment through fast, simple and objective checksHelps your technicians complete the installation the first time, promote best practices, improve work quality, and streamline workflowReliable connections and secure protection throughout the life of the fiber

Scope of delivery

1x VIAVI P5000i digital video microscope1x carry case for microscope and accessories1x carry case for probes1x test tip 2.5 mm/UPC1x test tip 1.25 mm/UPC1x test tip LC/UPC1x test tip SC/UPC1 x installation CD for FiberChekPRO software1x quick user manual
