Name: Glass fibre tester PCE-OFT 10 PCE Instruments Networks
Brand: PCE Instruments
SKU: 3841680
Availability: InStock

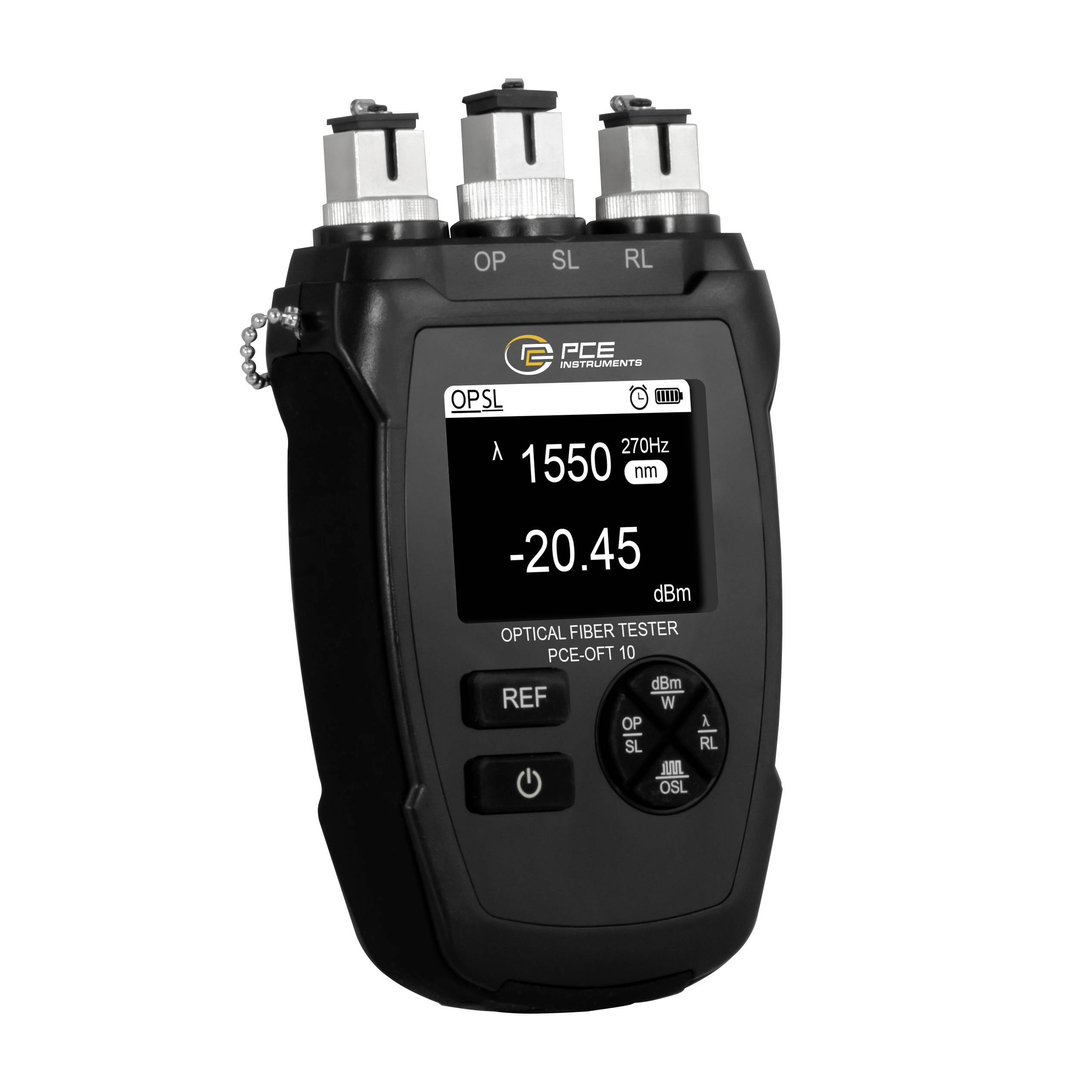

Portable PCE optical fiber tester showing 1550 nm wavelength and -20.45 dBm measurement on its display.

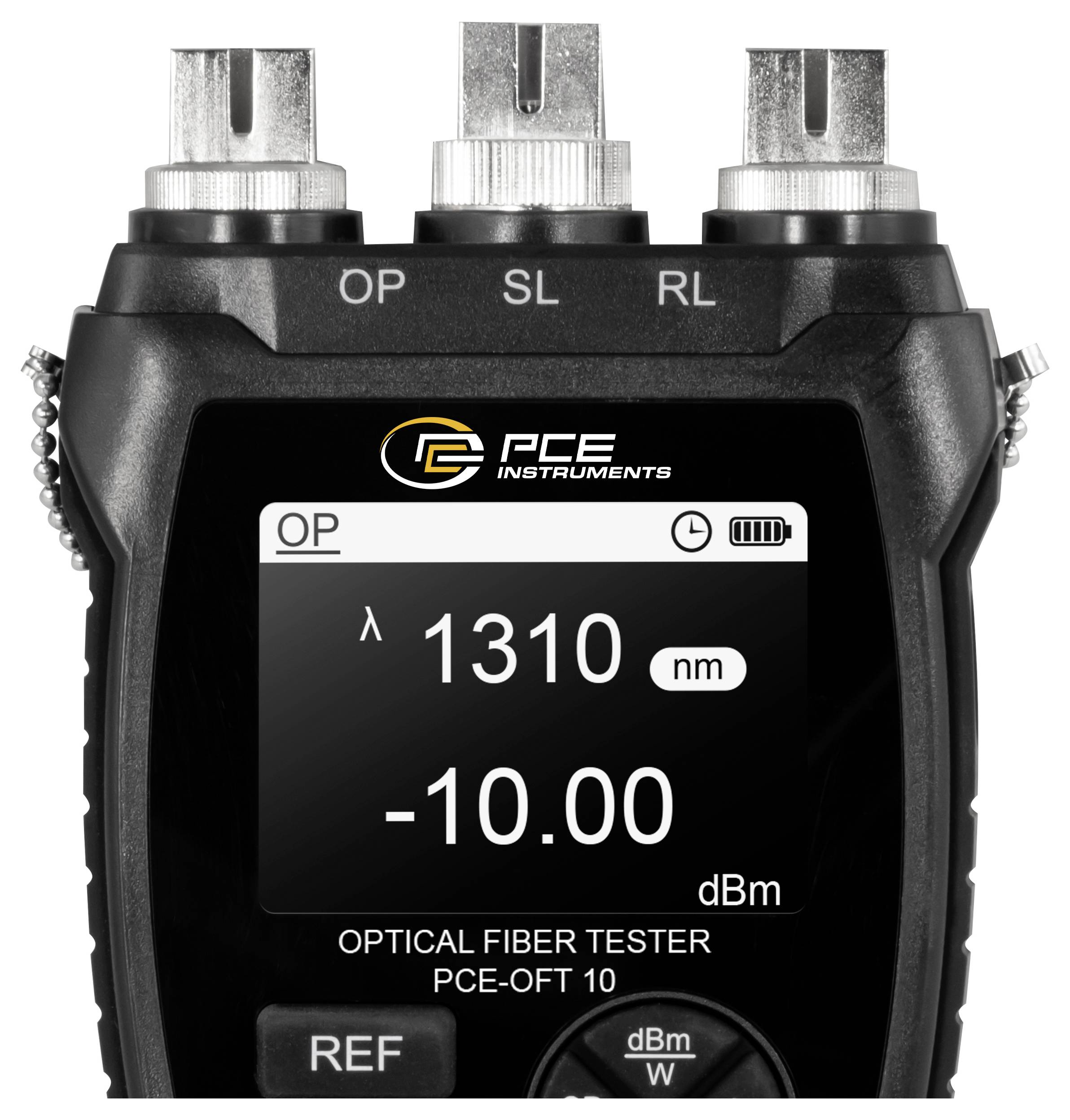

Handheld optical fiber tester showing wavelength 1310 nm and optical power -10.00 dBm on its screen.

Close-up of a black network switch with three Ethernet ports on a white background, showing labeled ports for LAN connections.<br>

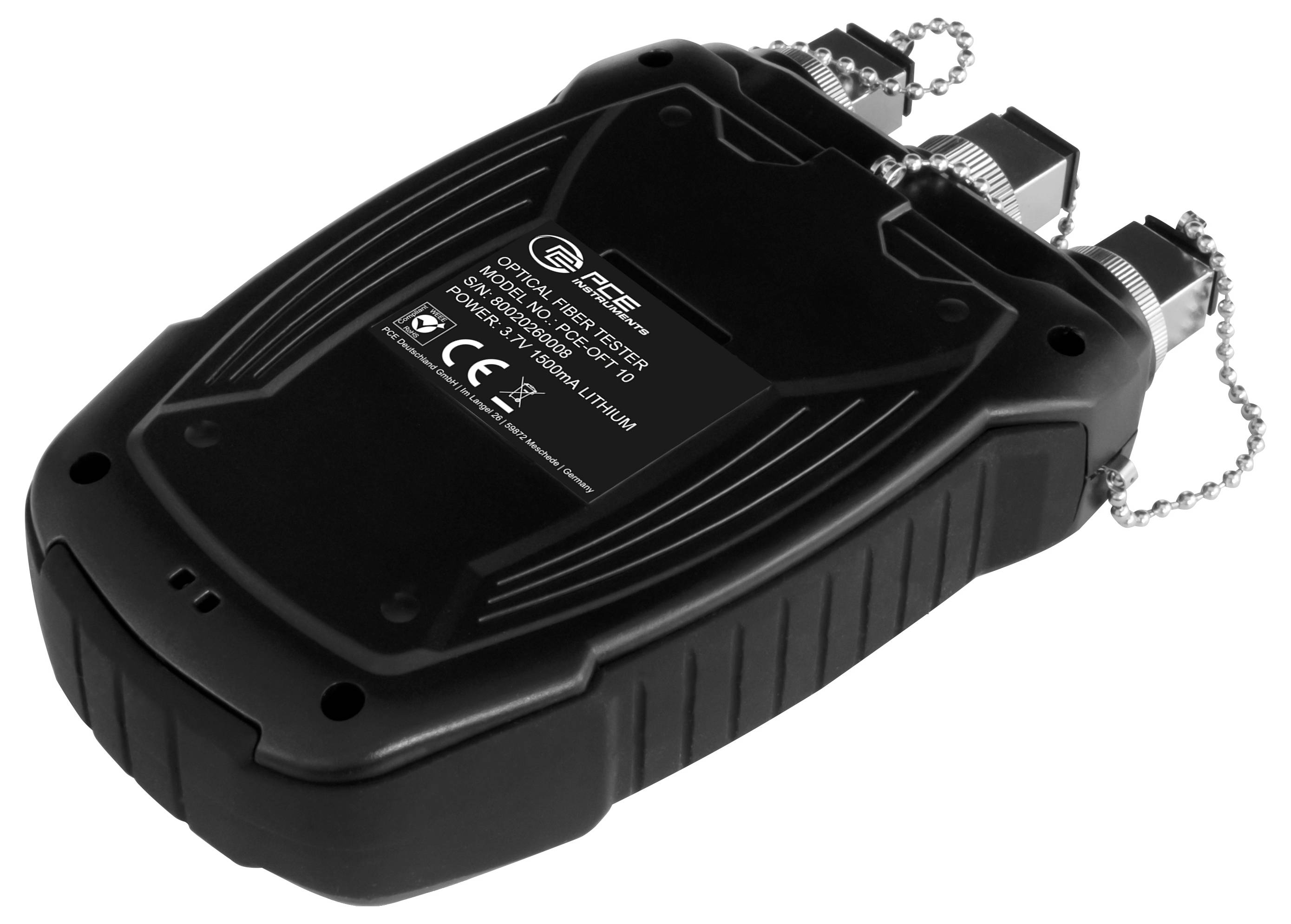

Black handheld electronic tester with chain-capped connectors and label, shown on a white background.<br>

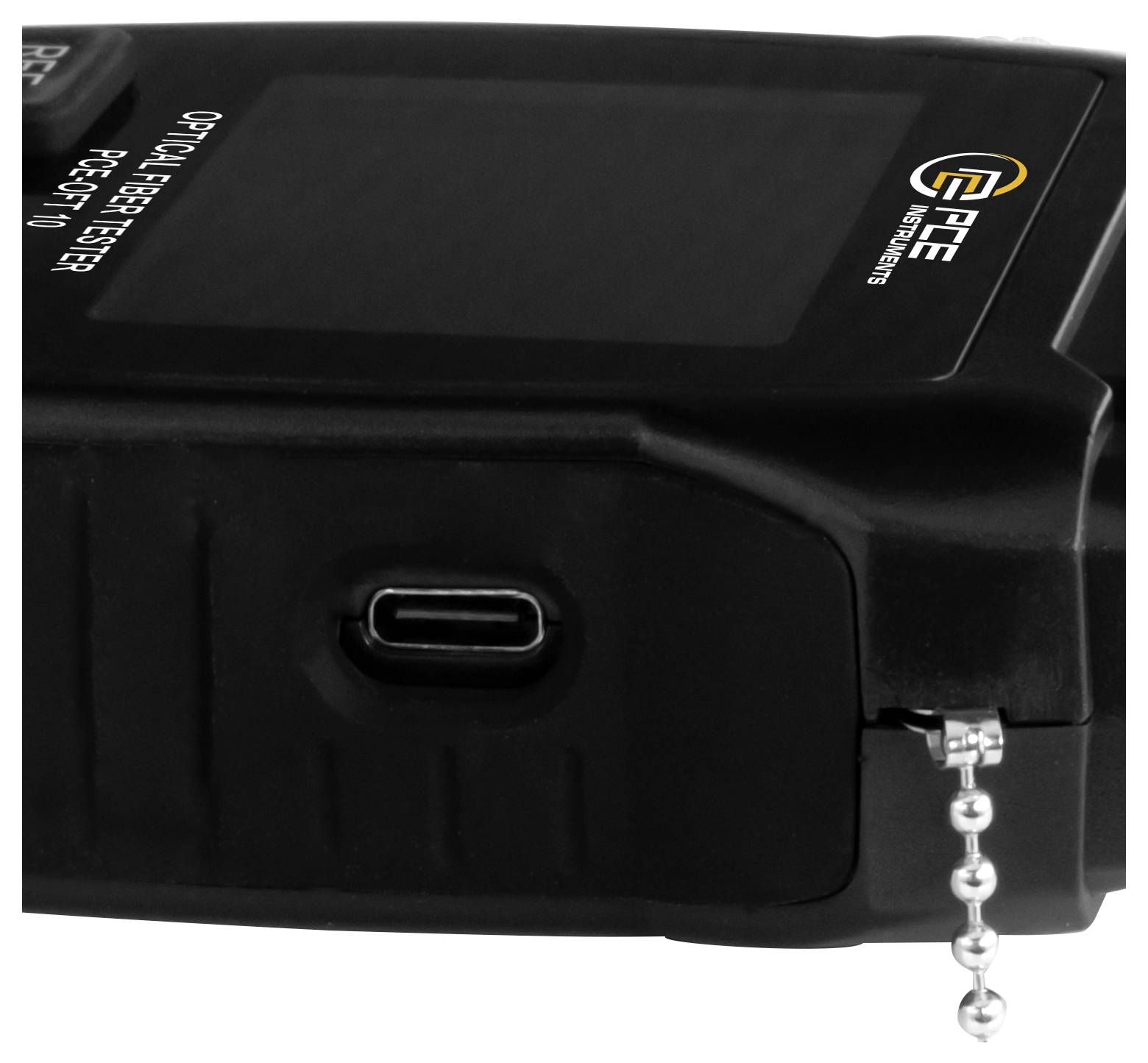

Close-up of a black EPE Electronics device with a USB-C port and a pull chain on the front panel.

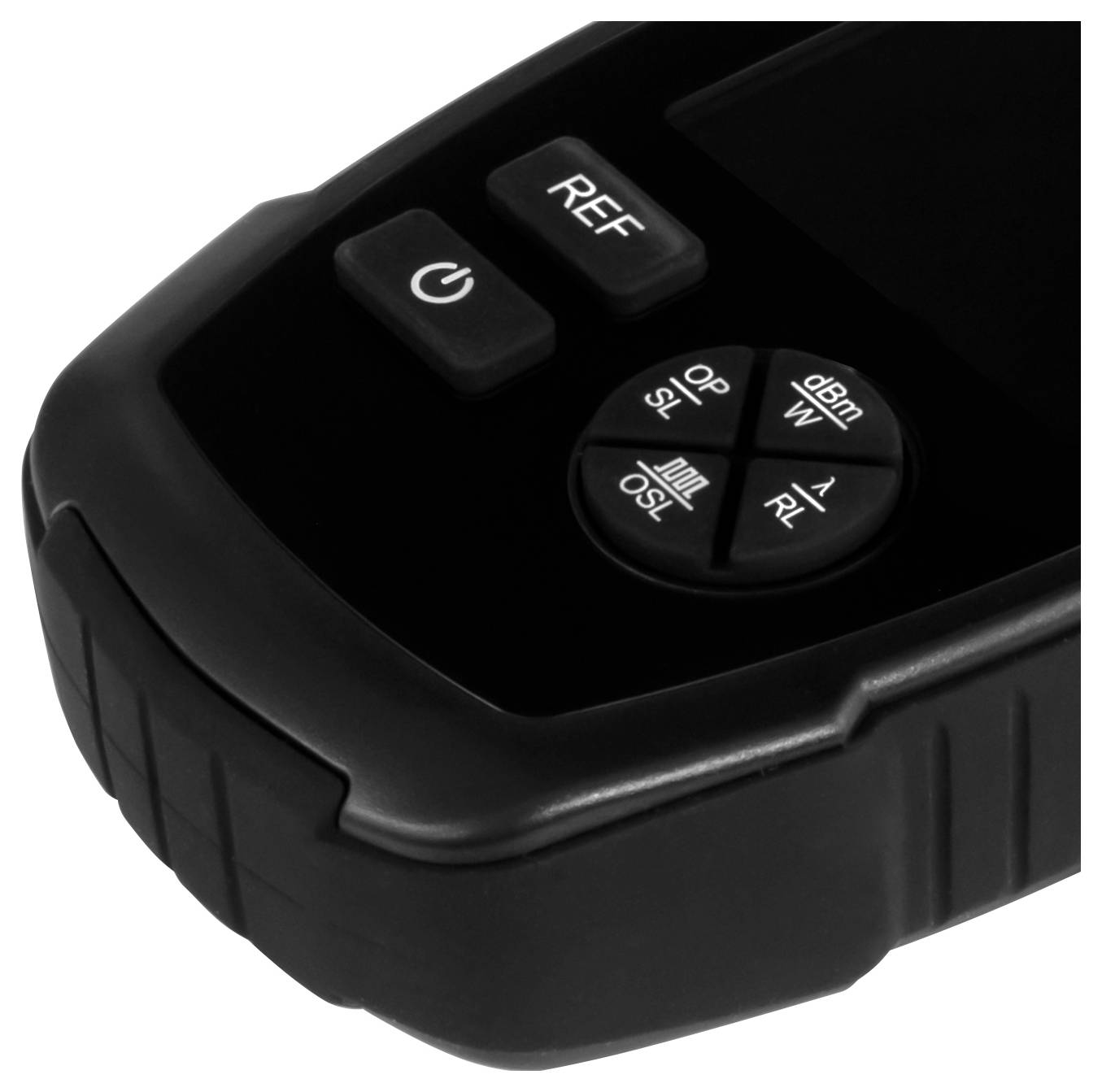

Close-up of a black handheld device with a power button, 'REF' button, and a four-way control pad labeled for settings or modes.<br>

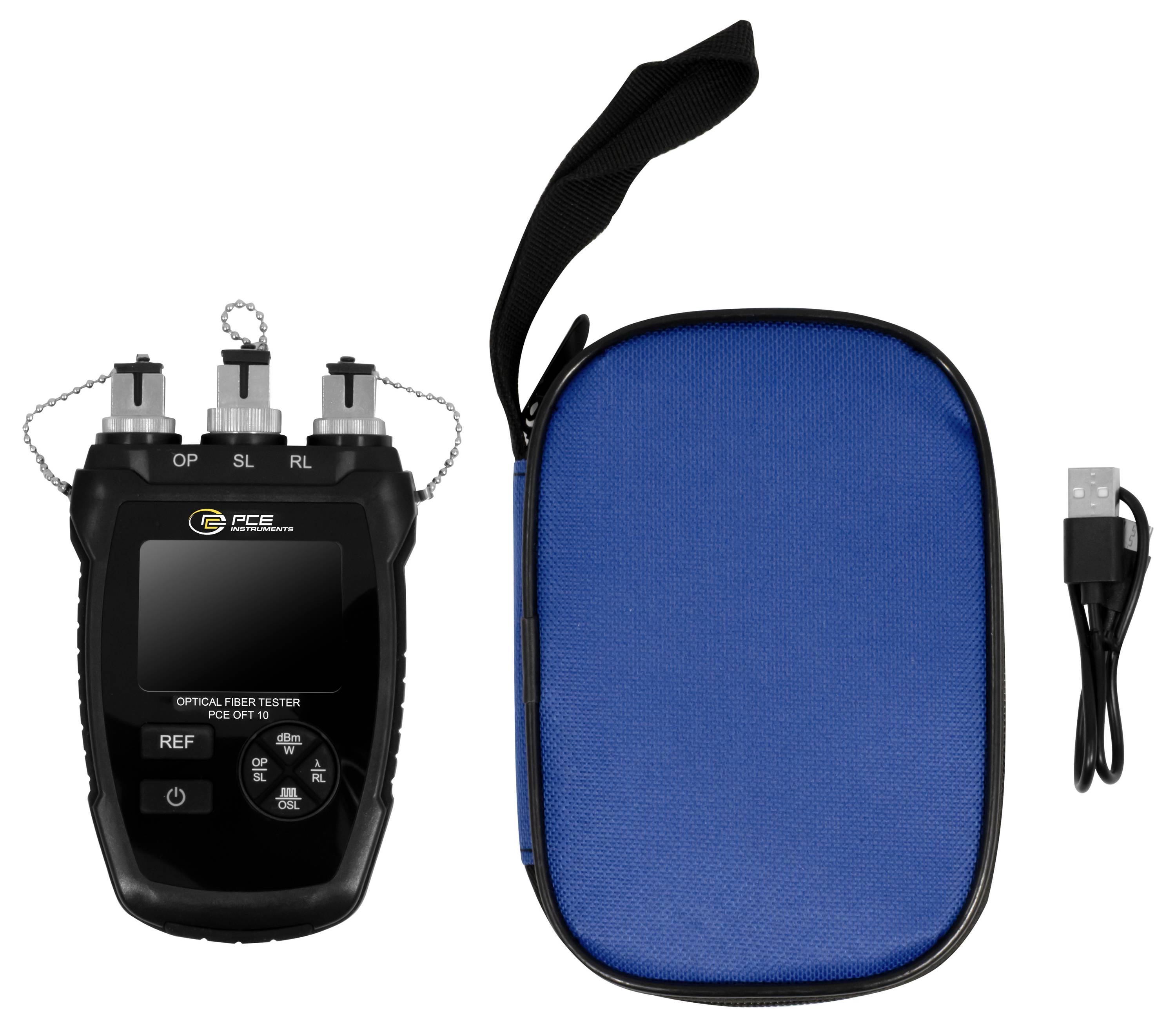

Handheld optical fiber tester with capped ports, blue zippered carrying case, and USB cable on a white background.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 93.99 / piece)

€ 93.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

PCE Instruments Fiber Optic Tester PCE-OFT 10 |Measuring range -70 ... +10 dBm |Resolution 0.01 dBm |Units dBm, Hz, NW

Optical power meter (OP): 850 ... 1650 nm
Red light source RL (VFL): 650 nm
Optical light source 1310, 1550 nm
Charging interface USB-C type
FC, SC and ST compatible connectors
REF function for relative power and insertion loss
Combined OPM and light source function
Low Battery Indicator

Technical specifications

Power
Measuring range -70 ... +10 dBm
Resolution 0.01 dBm
General Technical Specifications
Unit(s) dBm, Hz, NW
Display type LC-color display
Display size 2.3 inches
Interface USB-C
Automatically switches off approx. 30 min.
Menu language English (US), English (GB)
Protection class (device) IP20
POWER SUPPLY 5 V DC (USB-C)
Battery 1 x 3.7 V 102550 , Lithium-ion battery
Capacity: 1500 mAh
Power 5.55 Wh
Operating conditions -20 ... 50 °C , 0 ... 90 % r. F.
Storage conditions -20 ... 50 °C , 0 ... 90 % r.h.
Dimensions (L x W x H) 145 x 90 x 30 mm
Weight 200 g

Product type: Glass fibre tester

Function: Cable tracking
Break
Location
Continuity

Display: LCD

Optical display: Yes

Dim: (L x W x H) 145 x 90 x 30 mm

: Manufacturer's standards (no certificate)

Weight: 200 g

Range: Networks

Width: 90 mm

Height: 30 mm

Length: 145 mm

Type: PCE-OFT 10

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3841680 Glass fibre tester PCE-OFT 10 PCE Instruments Networks

User & Safety Instructions

User & Safety Instructions 3841680 Glass fibre tester PCE-OFT 10 PCE Instruments Networks

Description

The LWL tester combines optical power meter (OPM), optical light source and red light source (VFL) in a compact measuring device for testing glass fiber connections. As a versatile fiber-optic tester, it enables the measurement of optical power, the determination of light attenuation as well as the quick localization of error points and fiber breaks in glass-fiber cables. The fiber optic cable tester is suitable for installation, maintenance and troubleshooting in fiber optic networks.

The integrated optical power meter (OPM) supports wavelengths from 850 to 1650 nm (850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650 nm) and covers a measuring range from -70 to +10 dBm. Using the REF function, a reference value can be saved to reliably determine relative power as well as the insertion loss.

The optical light source (light source) operates at 1310 and 1550 nm and is suitable Ideal for attenuation measurements on single-mode glass fibers. Thanks to the combined OPM and light source function, measurements can be carried out very comfortably with the fiber optic cable tester. In addition, modulation frequencies of 270, 1000 and 2000 Hz are available.

For quick troubleshooting, the fiber optic cable tester has an integrated red light source (RL/VFL) with a wavelength of 650 nm. Permanent light or flashing operation makes fiber breaks, bends and incorrect plug connections visible along the fiberglass cable.

The connectors of the optical fiber tester for OPM, light source and VFL are compatible with FC, SC and ST connectors and protected against contamination by protective caps. The built-in rechargeable battery is charged comfortably via a type-C USB charging interface. A battery level indicator and optional automatic shut-off after 30 minutes of inactivity ensure efficient operation.

The fiber optic tester is Ideal for service and maintenance work on FTTH, Telecommunications and data networks as well as suitable for use by network technicians, electrical installers and service technicians.

This text is machine translated.
