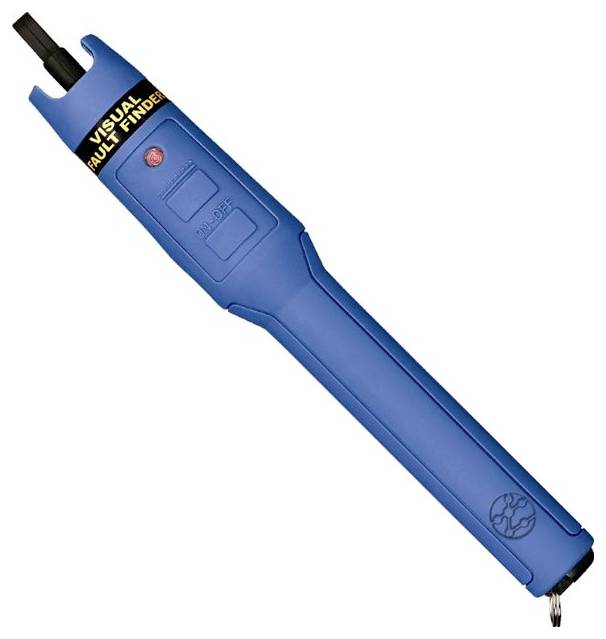

Glass fibre tester VFF5 Trend Networks VFF5
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
Only 5 Piece(s) available
Optical laser source
Highlights & Details
Technical specifications
- Product type
Glass fibre tester
- Function
Continuity
- Max. cable length
5 km
- Optical display
Yes
- Dim
(W x H) 32 mm x 220 mm
- Weight
180 g
- Width
32 mm
- Height
220 mm
- Type
VFF5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 619121 Glass fibre tester VFF5 Trend Networks VFF5
User & Safety Instructions
User & Safety Instructions 619121 Glass fibre tester VFF5 Trend Networks VFF5
Description
For the quick and easy continuity testing and localization of interruptions in glass fiber connections with red laser light (VFL).
This text is machine translated.
This text is machine translated.
Features
- Visual monitoring of the cable progression
- By supplying a predetermined breaking point on the fiber is displayed, the Rotlichts
- Erkenung faulty spleisverbindungen in connection slots
- Localization of faulty components and connectors
- Light signal in Pulse or continuous operation
- Testing of multi- and single-mode fibers up to 5 km
- Anti-roll design - no need to worry about slipping on inclined surfaces
- Robust casing protected by non-slip Santoprene®-sheath
Scope of delivery
- Battery
- Wrist strap
- Belt clip
- User manual
- Bag
