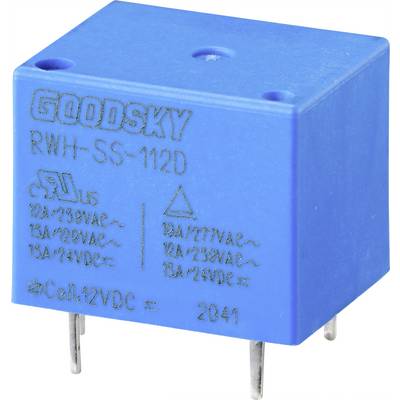

GoodSky RWH-SS-112D PCB relay 12 V DC 15 A 1 change-over 1 pc(s) Tray
EAN:
Part number:
Item no:
Packaging type
Tray
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Datasheet (PDF)
331 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€
Technical specifications
- Packaging type
Tray
- Product type
PCB relay
- Type
RWH-SS-112D
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
0.6 V DC
- Max. pick-up voltage
9 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
400 Ω
- Coil voltage rating
0.36 W
- Contact type
1 change-over
- Contact material
Ag-alloy
- Switching voltage (max.)
110 V DC
- Switching current (max.)
15 A
- Max. switching capacity
360 W
- Connection
Solder pins
- Response time
10 ms
- Fall time
5 ms
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Weight
9 g
- Factory colour
Blue
- Length
19 mm
- Width
15.4 mm
- Height
15 mm
- Dim
(L x W x H) 19 x 15.4 x 15 mm
- Content
1 pc(s)
- RoHS-compliant
