Buy Greisinger GMH 5450-425 Set Multi tester Conductivity, Salinity , TDS, Temperature

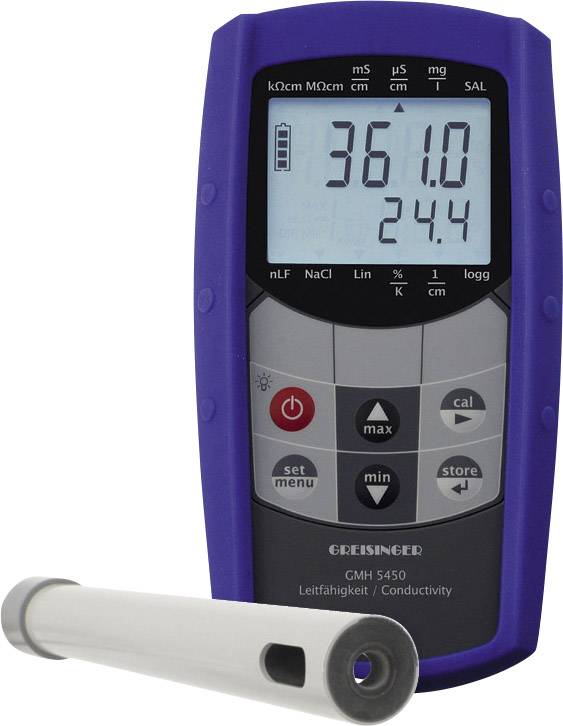

'Conductivity meter GMH 5450 with blue casing, displaying measurement values of 361.0 µS/cm and 24.4 °C, with removable probe at the front.'

Fast track dispatch on Fri, 18 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 701.68 / piece)

€ 701.68

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Smallest Measurement Range: 0.000... 5.000 μS/cm* or 0.0... 500,0 μS/cm
Largest measuring range: 0 ... 5000 μS/cm* or 0... 1000 mS/cm
Spec. Resistance: 0.005... 500,0 kOhm * cm (depending on the cell constants)
TDS: 0 ... 5000 mg/l (depending on the cell constants)
For salinity: 0.0... 70.0 (g/kg salt water)
Temperature: -5.0 ... +100.0 °C, Pt 1000 or NTC (10k)
Supported cell constants: 4,000... 15.000/cm - 0,4000... 1,5000 0,04000/cm... 0,15000/cm - 0.00 4000... 0.01 5000/cm
Conductivity accuracy (at nominal temperature 25 °C) ± 0.5 % v. MW ± 0.1 % FS (electrodes dependent)
Accuracy of temperature (at nominal temperature 25 °C) ± 0.2 K
Connection conductivity, temperature: 1 x 7-pin. Bayonet connection for the connection of different measuring cells, supported Temperature Sensors Pt 1000 or NTC (10k)
Interface/EXT. Supply: 4-pin. Bayonet connector for serial interface and power supply (with accessories: USB Adapter USB 5100)
Analogue output: 0 - 1 V, freely scalable, connection via 4-pin bayonet socket, resolution 13 bit, accuracy 0.05% at nominal temperature
Display: 4½-digit 7-Segment, illuminated (white)
Working conditions: -25 ... 50 °C, 0... 95% r.F. (Non-condensing)
Storage temperature: -25 ... 70 °C
Background lighting: Light adjustable (off, 5 s... 2 min)
Power supply 2 x AAA battery (included)
Power consumption: 6.25 mA
Battery life: approx. 160 h (Without lighting)
Protection class IP65/IP67
Housing: Shock-resistant ABS, with mounting/hanger
Measuring range LF425: 0 ... 1000 mS/cm
Temperature range LF425: 0 ... 80 °C
Cell constant LF425: approx. 0.42
Temperature measurement LF425: PT1000
Shaft LF425: PVC-C, diameter 16 mm x 15 mm
4-pin graphite electrode LF425:
Application LF425: high accuracy, robust and precise for highest demands high end class
Cable length: 2 m

Product type: Multi tester

Reading type: Conductivity
Salinity
TDS
Temperature

Display: Digital

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 37 x 86 x 160 mm

Conductivity reading range: 0 - 5000 µS/cm

Conductivity reading range (max.): 5000 µS/cm

Conductivity reading range (min): 0 µS/cm

TDS reading range: 0 - 5000 mg/l

TDS reading range (max.): 5000 mg/l

TDS reading range (min.): 0 mg/l

Temperature reading range: -5 up to +100 °C

Temperature reading range (max.): +100 °C

Temperature reading range (min.): -5 °C

Width: 86 mm

Height: 160 mm

Length: 37 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1305324 Greisinger GMH 5450-425 Set Multi tester Conductivity, Salinity , TDS, Temperature

Description

Waterproof meter incl. electrode LF425 for use in industry and trade, measurements in bodies of water, drinking water, process monitoring, ground measurement, food production and control, quality assurance, and medicine, pharmacy, chemistry
