Greisinger GMH5650 Multi tester O2 concentration, O2 saturation, Temperature, Pressure
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 536.97 / piece)
€ 536.97
plus VAT.
Only 2 Piece(s) available
Highlights & Details

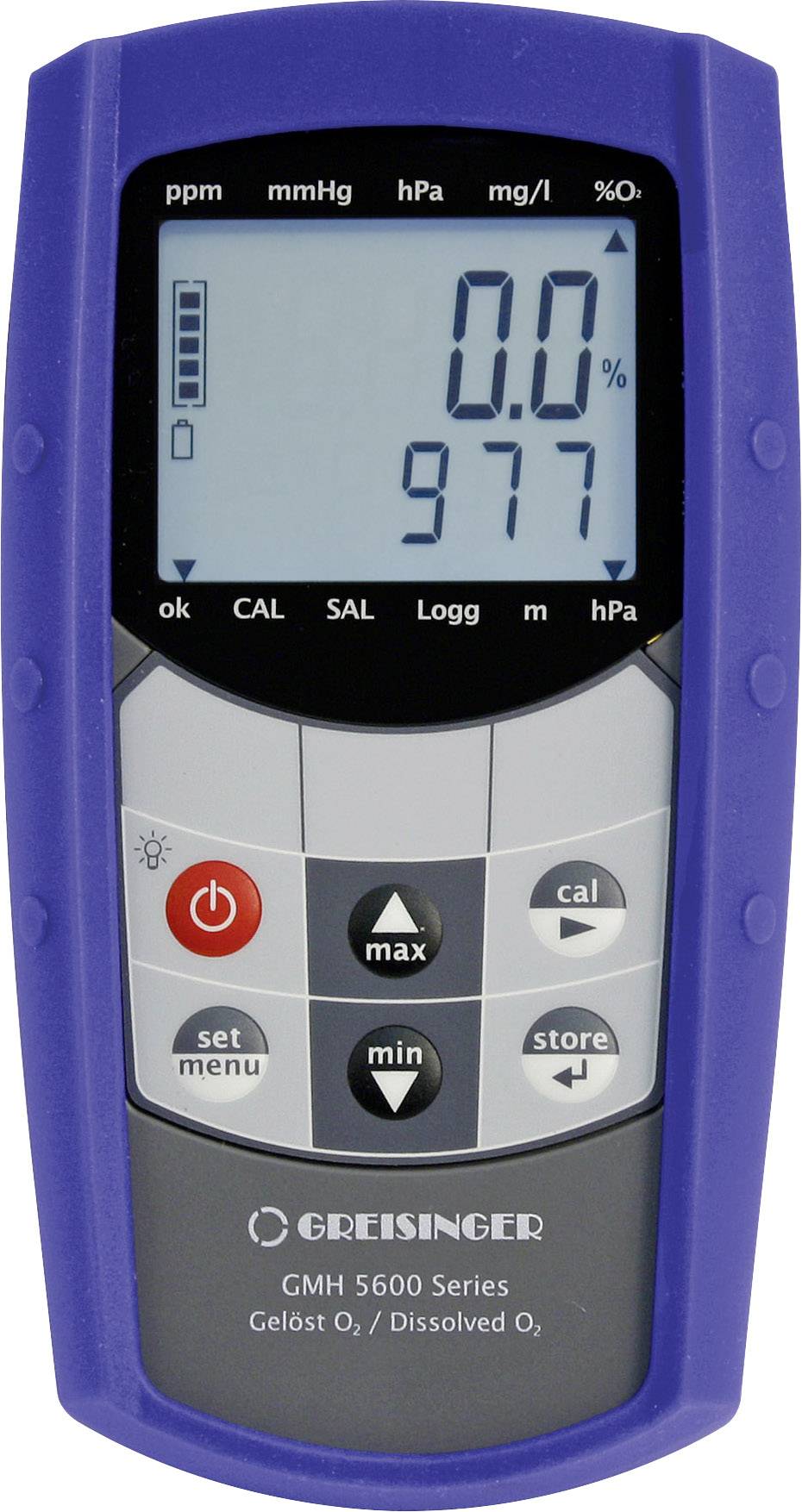

Greisinger handheld dissolved oxygen meter with GMH 5650 data logger
- Measuring ranges: O2 concentration of 0.00 to 70.00 mg/l (ppm); O2 saturation 0.0 to 600.0 % O2; O2 partial pressure: 0 to 1200 hPa O2, air pressure: 10 to 1200 hPa
- Temperature measurement range: 0.0 to 50.0°C
- Accuracy: Oxygen: ± 1.5 % v. MW ± 0.2 mg/l (0…25 mg/l) or ±2.5 % v. MW ± 0.3 mg/l (25 … 70 mg/l); temperature: 0.0... 50.0 °C; air pressure: 300... 5000 hPa
- Notification
- Data Loggers
Technical specifications
- Measuring ranges: O2 concentration of 0.00 to 70.00 mg/l (ppm); O2 saturation 0.0 to 600.0 % O2; O2 partial pressure: 0 to 1200 hPa O2, air pressure: 10 to 1200 hPa
- Accuracy
Oxygen: ± 1.5 % v. MW ± 0.2 mg/l (0…25 mg/l) or ±2.5 % v. MW ± 0.3 mg/l (25 … 70 mg/l); temperature: 0.0... 50.0 °C; air pressure: 300... 5000 hPa
- Dim
(L x W x H) 37 x 86 x 160 mm
- Weight
250 g
- Height
160 mm
- Length
37 mm
- Width
86 mm
- Temperature reading range
0.0 up to 50.0 °C
Manufacturer's standards (no certificate)
- Display
LCD
- Reading type
O2 concentration
O2 saturation
Temperature
Pressure
- Temperature reading range (max.)
50.0 °C
- Temperature reading range (min.)
0.0 °C
- Product type
Multi tester
Documents & Downloads
Datasheet
Datasheet 1766322 Greisinger GMH5650 Multi tester O2 concentration, O2 saturation, Temperature, Pressure
User & Safety Instructions
User & Safety Instructions 1766322 Greisinger GMH5650 Multi tester O2 concentration, O2 saturation, Temperature, Pressure
Description
Hand-held meter for dissolved oxygen GMH5630.
This text is machine translated.
This text is machine translated.
Features
- Waterproof and robust (silicone cover)
- Large double display with backlight
- Ambient pressure compensation with integrated barometer
Scope of delivery
- GMH5630
- 2x battery type AAA
- Silicon protection cover
- Test report
- Operating instructions
- Quick guide
Hints
Sensor is not included in the delivery!
