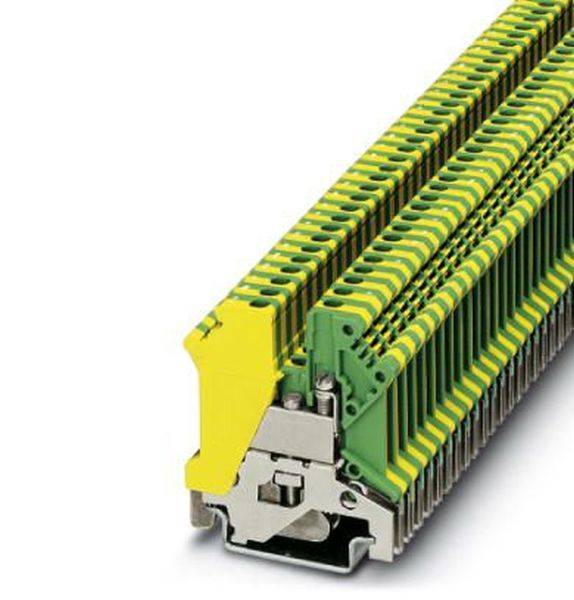

Image similar

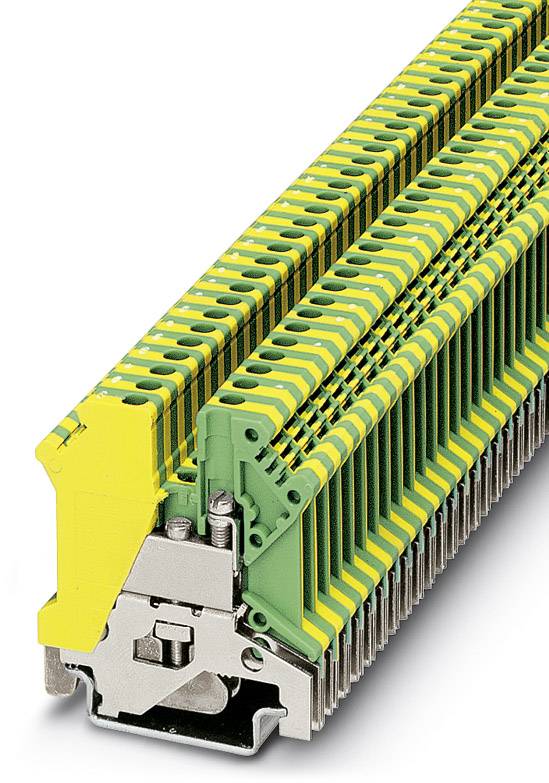

Image similar
Ground modular terminal block USLKG 3 0441083 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 6.87 / piece)
€ 343.70
plus VAT.
Highlights & Details
Ground modular terminal block USLKG 3
- USLKG 3
Technical specifications
- Product type
Triple port PG terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Stripping length (max.)
8 mm
- Manufacturer part #
0441083
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
USLKG 3
- Dim
(L x W x H) 42.5 x 5.2 x 47 mm
- Width
5.2 mm
- Height
47 mm
- Length
42.5 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565026 Ground modular terminal block USLKG 3 0441083 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565026 Ground modular terminal block USLKG 3 0441083 Phoenix Contact
Description
Ground modular terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Width: 5.2 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15, NS 32
