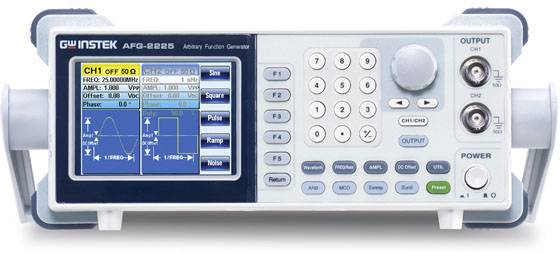

A function generator device with a digital display showing frequency and waveforms. Primary controls located on the front panel.

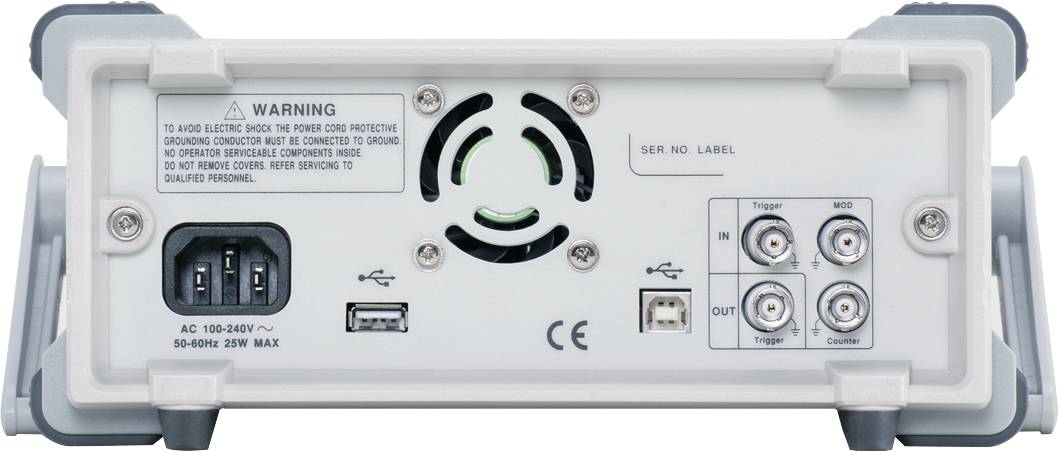

Rear view of an electrical device with power connection, fan, USB port, warning label, and multiple cable connections.

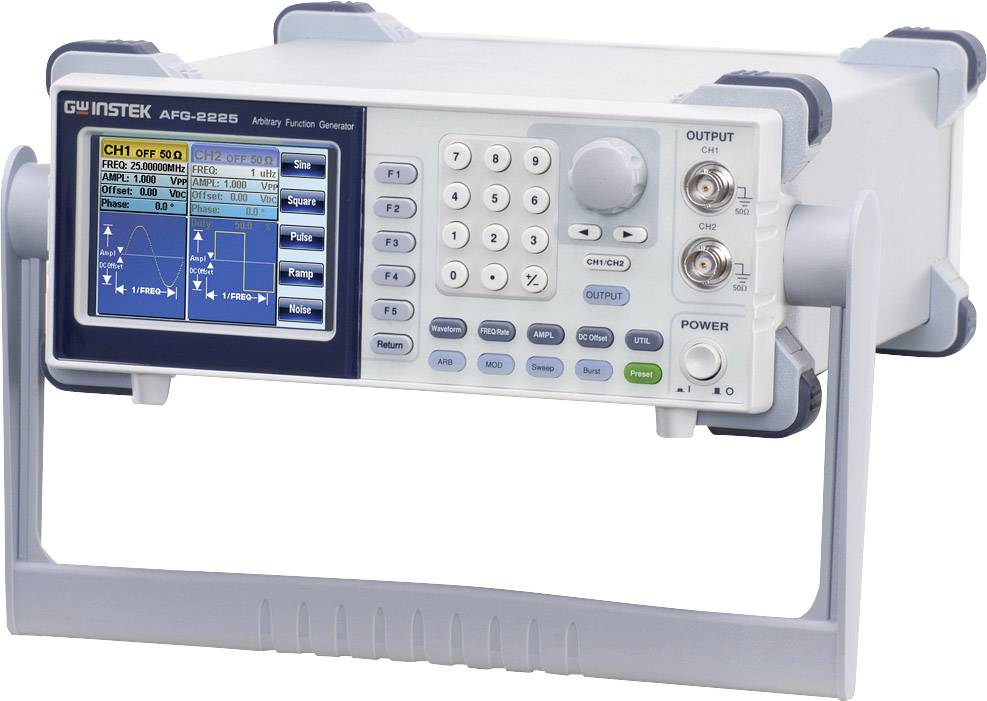

A function generator with a screen displays various waveforms, buttons for adjustment, and sockets for input and output.

1/3

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 505.00 / piece)

€ 505.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Arbitrary Function Generator AFG-2225

2 independent output channels
Bandwidth 1 µHz - 25 MHz
Arbitrary Generator 120 MSa/s
Direct digital signal generation (DDS)
USB host

Technical specifications

AM/FM/PM/SUM Modulation: 2 MHz - 20 kHz
FSK Modulation: 2 MHz - 100 kHz
Offset: ± 5 Vp
Curve Memory: 4 kPt
Impedance 50 Ω
Input resistance: 1 kΩ // 1 pF
Resolution: 0.1 Hz
Display: Color-LCD 8.89 cm

Signal output type: Sine / square / ramp / pulse / noise / Arbitrary Signal

Product type: Mains-powered

Frequency range: 0.1 Hz - 25 MHz

Signal output types: Arbitrary
Sinus
Rectangle
Noise
Triangle

Frequency range (sine): 1 µHz - 25 MHz

Frequency range square wave: 1 µHz - 25 MHz

Square wave slew rate: 25 ns

Display: LCD

Frequency range triangle: 1 µHz - 1 MHz

: Manufacturer's standards (no certificate)

Wobble function: 25 µHz - 1 MHz

Internal modulation: AM/FM/PM/FSK/SUM

Trigger (synchronous): TTL

Frequency reading (external): 5 Hz - 150 MHz

Dim: (W x H) 266 mm x 107 mm

Weight: 2.5 kg

No. of channels: 2-channel

Max. frequency: 25 MHz

Min. frequency: 0.1 Hz

Features: Modulation

Width: 266 mm

Height: 107 mm

Interfaces: USB

Voltage supply: Mains

Type: AFG-2225

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 630771 GW Instek AFG-2225 Mains-powered 0.1 Hz - 25 MHz 2-channel Arbitrary, Sinus, Rectangle, Noise, Triangle

Description

The AFG -2225 function generator with direct digital signal generation (DDS) offers a bandwidth of 25 MHz and two independent output channels. The equipment includes the standard signals: sine, square, ramp, noise and 120 MSa/s arbitrary waveform with 10-bit vertical resolution. In addition, the functions AM/FM/PM/FSK/SUM modulation, Sweep/Burst and frequency counter. The 8.89 cm large LCD color monitor shows all Waveform parameters and settings. A USB interface can be used for the remote control with a computer. The arbitrary waveform can be used via the free downloadable PC ® software is generated and transmitted via USB to the generator.

This text is machine translated.

Features

Adjustable pulse/pause ratio for square-wave signal
Setting the waveform parameters via keyboard and rotary knob
Simultaneous display of amplitude, DC offset and a variable function in the display
10 3.1.2 memory slots
10 non-volatile 4 Mpts signal shape memory.
This text is machine translated.

Scope of delivery

2 measuring cable (BNC-BNC)
Power cord
Operating Instructions (GB)
Quick guide.

Hints

The PC ® software for creating the arbitrary signal is available in the download area in the Internet.
