Buy GYS GYSFLASH 6.12 029378 Automatic charger 12 V 6 A

Battery charger with yellow display, showing 'GYSFLASH 6.12'. Various charging options for cars and motorcycles, 12V indicator.

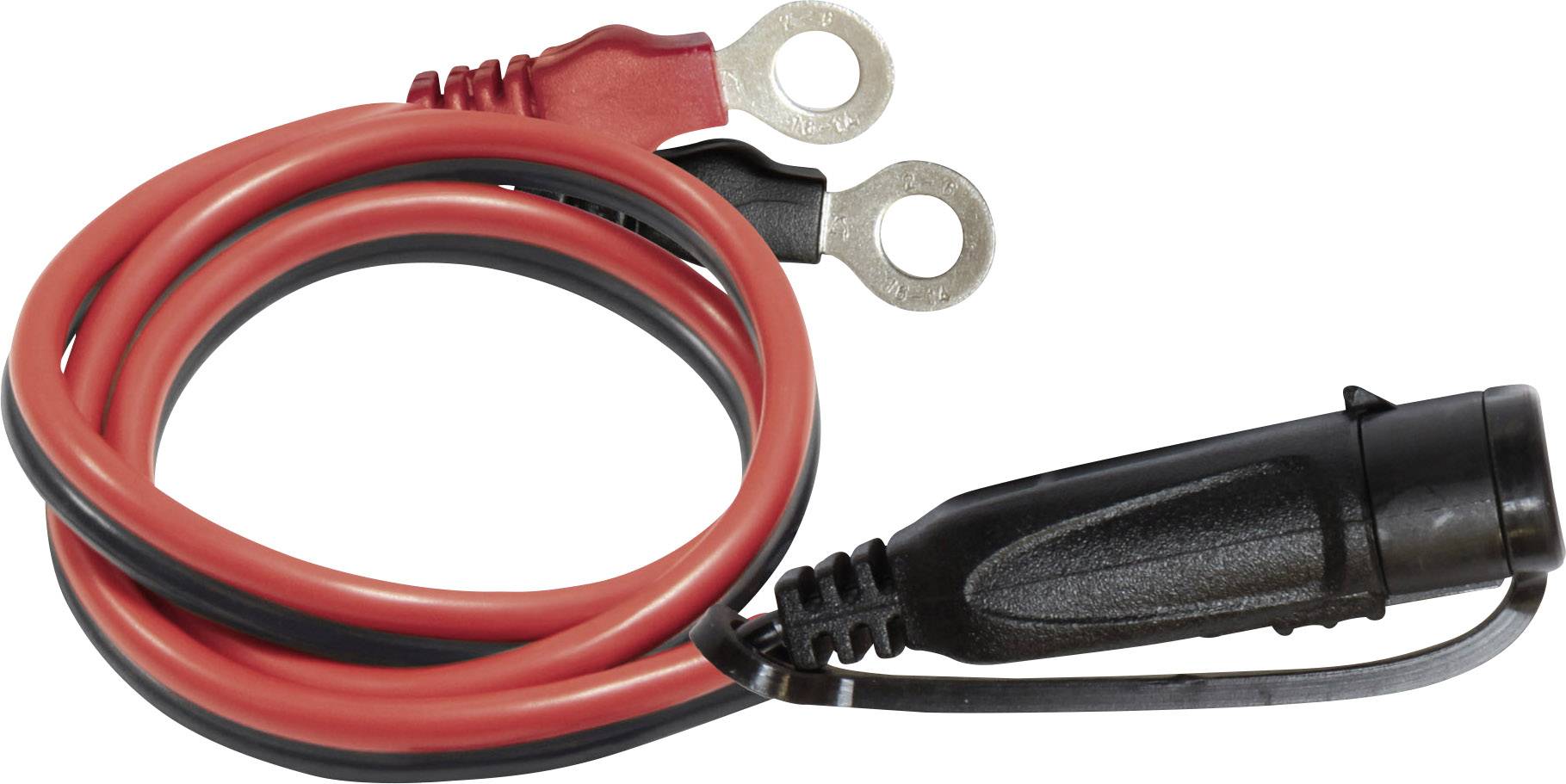

Red and black battery cable with ring terminal connectors and a black adapter at the other end.

Red and black battery cable with crocodile clips for connecting electrical devices or batteries.

Packaging for a GYSFLASH 6.12 Smart Charger, suitable for car and lorry batteries. Includes an image of the charger and a vehicle graphic.

An open car bonnet shows a connected car battery charger with cables attached to the battery.

A battery charger is mounted on a motorbike parked in an open area. The device is displaying a voltage of 6.12 volts.

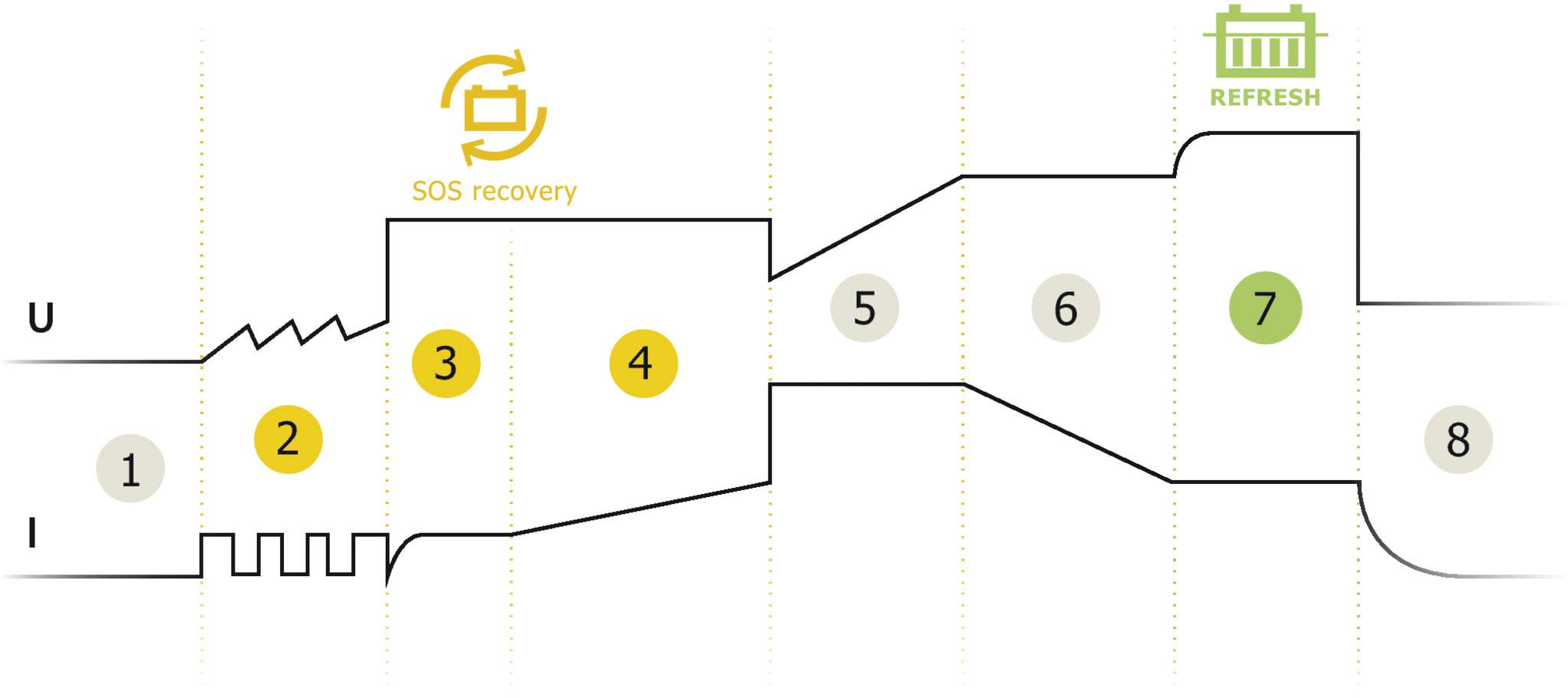

Diagram showing a process in eight steps, with 'SOS recovery' at steps 2-4 and 'REFRESH' at step 7.

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 84.03 / piece)

€ 84.03

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

GYS GYSFLASH 6.12 029378 Automatic charger 12 V 6 A

Winter Special mode
2 V recovery

Technical specifications

Product type: Automatic charger

Dim: (L x W x H) 190 x 100 x 52 mm

Battery voltage: 12 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 125 Ah

Recommended battery capacity at 12 V min.: 1.2 Ah

Suitable for: Lead acid
SLA
VRLA AGM

Weight: 0.77 kg

Features: Battery life protection
Charge monitoring
Suitable for start-stop systems
Refresher/regenerator
Constant voltage

Charging current at 12 V: 6 A

Width: 100 mm

Height: 52 mm

Length: 190 mm

: IP65

Documents & Downloads

Datasheet

Datasheet 1616207 GYS GYSFLASH 6.12 029378 Automatic charger 12 V 6 A

User & Safety Instructions

User & Safety Instructions 1616207 GYS GYSFLASH 6.12 029378 Automatic charger 12 V 6 A

Information

Information 1616207 GYS GYSFLASH 6.12 029378 Automatic charger 12 V 6 A

Description

The GYSFLASH 6.12 is for charging 12 V batteries in cars, Nutzfahzeugen, motorcycles and JetSkis. With the intelligent, eight-phase charging curve loads the GYSFLASH 6.12 a battery twice as fast as a traditional 6A battery charger.

This text is machine translated.

Features

Especially for 12 V batteries (lead-acid) from 1.2 to 125 Ah, trickle charging to 170 Ah possible
2 optional setting options for the adaptation of the charging behavior
AGM: Special charging at low temperatures (less than 5 °C) and for start-stop batteries
(AGM)
Revival and restoration deep discharged batteries
Suitable for motorcycles and other vehicles with a 12V CAN BUS connection, it can be loaded unbewacht and safe without ignition key (cable optional)
Improved charge retention: the charger can be connected to the batteries and thus guarantees a smooth start. The auto-restart function stores the settings in case of power outage.
The eight-stage, monitoring free charge and maintenance phase improves the
Life and the performance of the battery
Recovery of deep discharged batteries from 2 V (SOS Recovery)
The protection of the vehicle electronics: Protection against short-circuit, polarity reversal and over-voltage
Automatic power-off in the case of a short shot or with the battery disconnected
Built-in temperature sensor prevents overheating of the internal electronics
Simplified user interface prevents an incorrect use
Compact design, lightweight and portable
Connection with waterproof quick connector
Completely dust- and water proof casing (IP65)
Optional wall mounting
