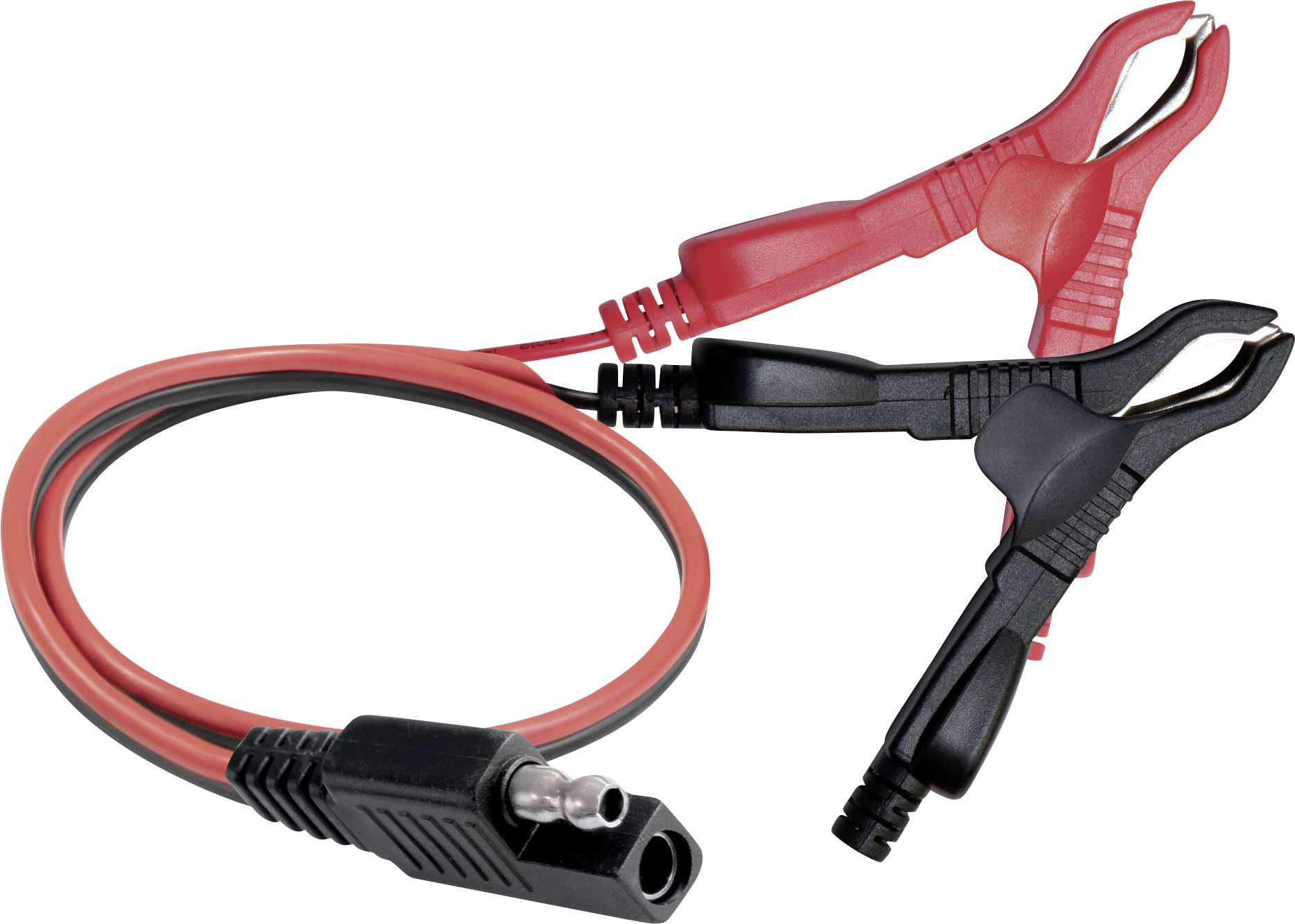

Red and black battery charging cable with crocodile clips, suitable for vehicle jump-starting or battery connection.

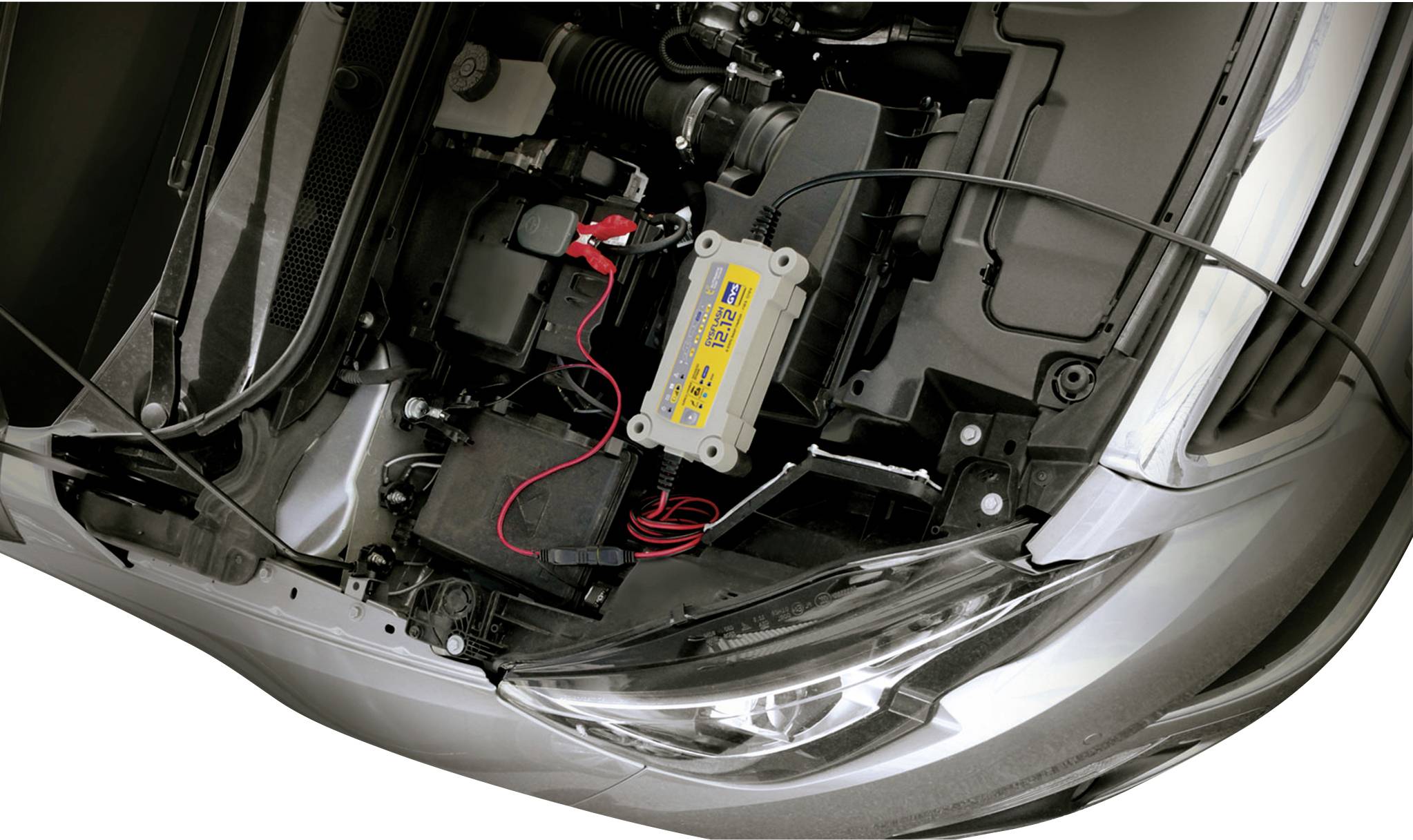

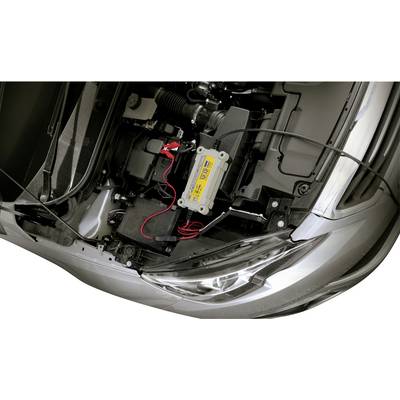

A car charger is charging a car battery in the open engine compartment of a vehicle. Red and black cables are connected.

'Diagram: Stepwise representation of a process with 8 stations. Highlighted sections: Station 2 (SOS recovery) and Station 7 (REFRESH).'

1/6

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 147.05 / piece)

€ 147.05

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

GYS GYSFLASH 12.12 029392 Automatic charger 12 V 12 A

Temperature sensor
Power Supply Mode
Refresh Mode

Technical specifications

Product type: Automatic charger

Dim: (L x W x H) 221 x 111 x 58 mm

Battery voltage: 12 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 250 Ah

Recommended battery capacity at 12 V min.: 20 Ah

Suitable for: Lead acid
SLA
VRLA AGM

Weight: 1.1 kg

Features: Battery life protection
Charge monitoring
Suitable for start-stop systems
Refresher/regenerator
Constant voltage

Charging current at 12 V: 12 A

Width: 111 mm

Height: 58 mm

Length: 221 mm

: IP65

Documents & Downloads

Datasheet

Datasheet 1616209 GYS GYSFLASH 12.12 029392 Automatic charger 12 V 12 A

User & Safety Instructions

User & Safety Instructions 1616209 GYS GYSFLASH 12.12 029392 Automatic charger 12 V 12 A

Information

Information 1616209 GYS GYSFLASH 12.12 029392 Automatic charger 12 V 12 A

Description

The GYSFLASH 12.12 is for charging 12 V batteries in cars, Nutzfahzeugen, trucks and coaches. The device has an intelligent 8-stage charging curve and a supply mode for the supply of exhibition vehicles in the Showroom or garage

This text is machine translated.

Features

Especially for 12 V batteries (lead-acid) from 20 to 250 Ah, trickle charge up to 330 Ah possible
2 optional setting options for the adaptation of the charging behavior: AGM: Special charging for start-stop batteries (AGM) - Refresh: Revival and restoration of deep discharged batteries
Supply mode, securing the power supply in case of a demonstration vehicles in the showroom
Supply of the on-board network of battery change for securing the memory content
Improved charge retention: the charger can be connected to the batteries and thus guarantees a smooth start. The auto-restart function stores the settings in case of power outage.

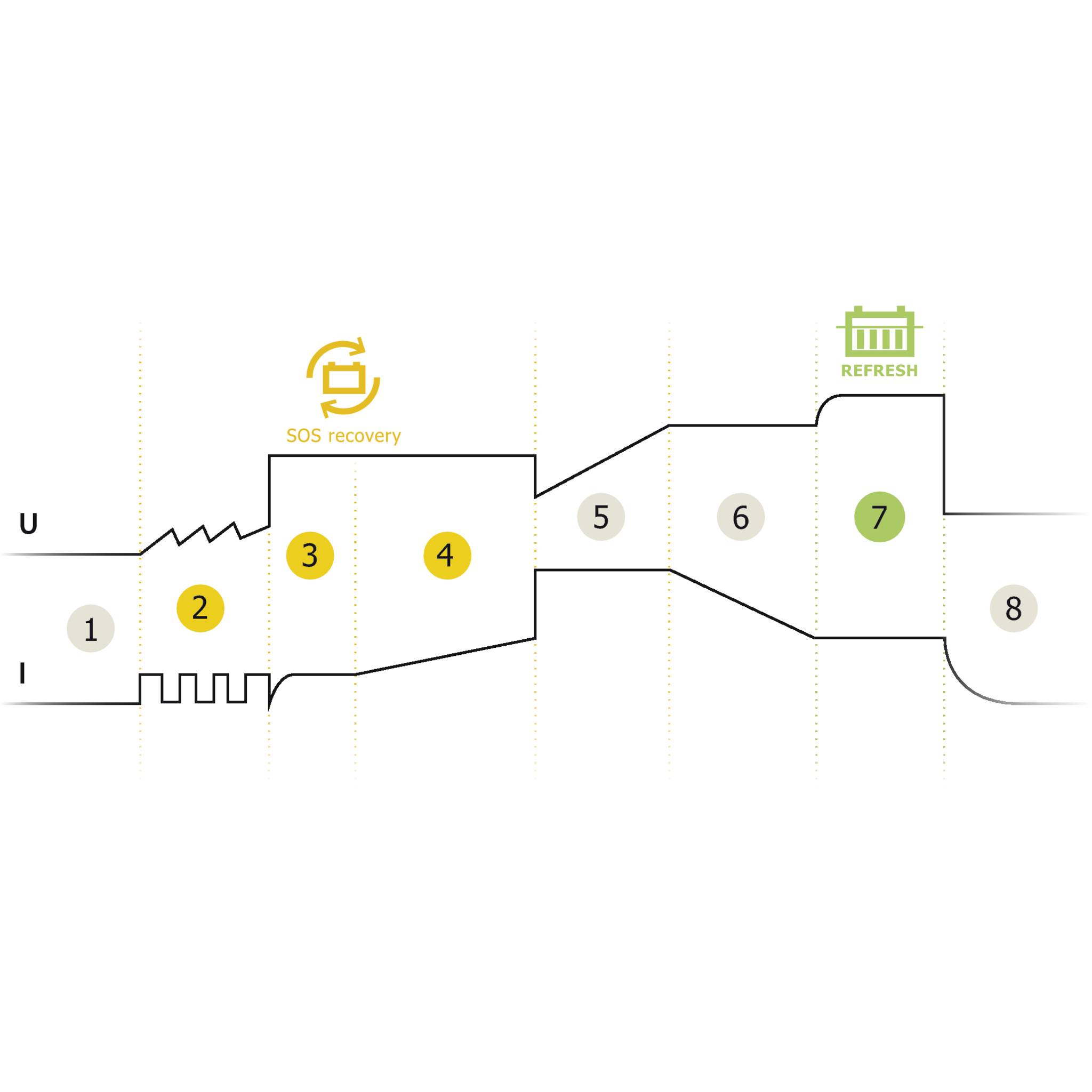

The eight-stage, monitoring free charge and maintenance phase maximizes the life and the performance of the battery
An outdoor air temperature sensor, for an optimum charging of the battery in summer and in winter. The charger adjusts the charging settings of the ambient temperature exactly
Recovery of deep discharged batteries from 2 V (SOS Recovery)
The protection of the device electronics: Protection against short-circuit, polarity reversal and over-voltage
Automatic standby circuit with the battery disconnected
Built-in temperature sensor prevents overheating of the internal electronics
Simplified user interface prevents an incorrect use
Compact design, lightweight and portable
Completely dust- and water proof casing (IP65)
Optional wall mounting.
